(Success) Acer Aspire 5 (A515-54g) i5-10210u

[thorasgard1]

OC Works well, i must use vsmcgen=1 .Working better then Catalina. From DP2 to DP3 5 days testing for full working system, but still is WIP🙁

Snímek obrazovky 2020-07-28 v 19.00.10.zip

[thorasgard1]

(Progress)

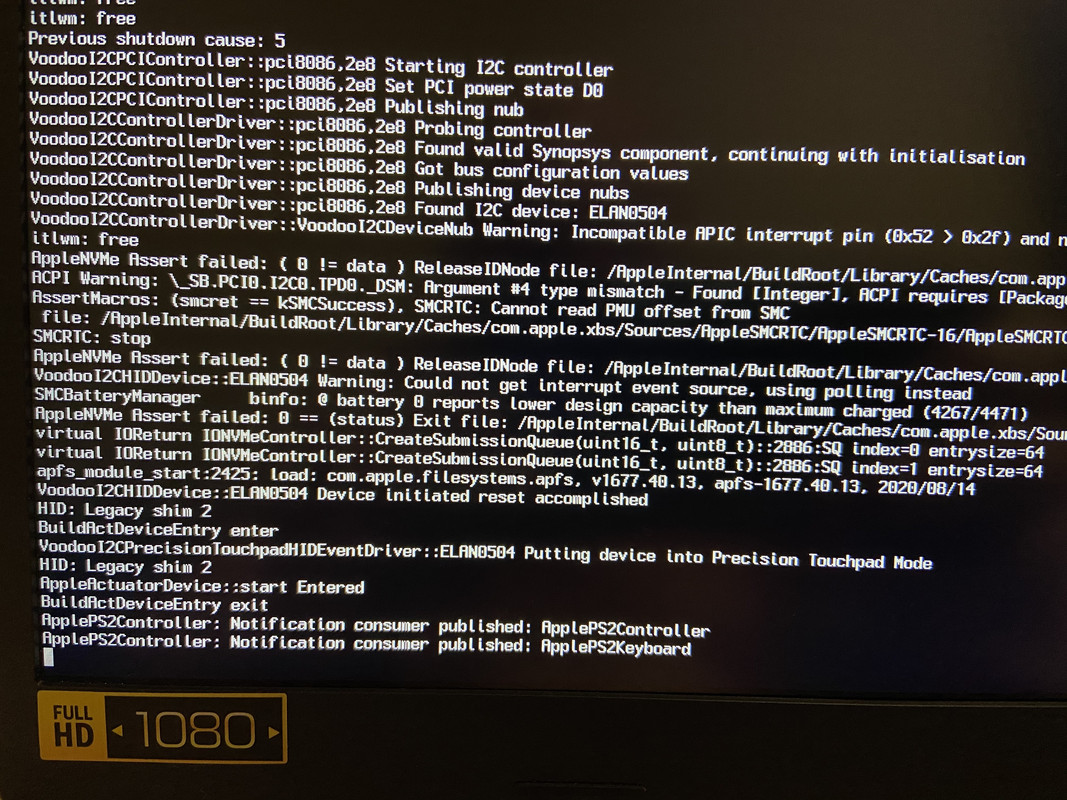

Is it interesting that USB-C work in BigSur DB3 and on Catalina causing reboot. The same EFI/OC. But still i working on touchpad (ELAN 0504), is unplugged from MB causing KB malfunction. I use external mouse, that this problem is not too hot.

I use latest https://github.com/OpenIntelWireless/itlwm and WIFi intel AX201 works well on both systems, without kernel panic.

[thorasgard1]

My EFI : http://s000.tinyupload.com/?file_id=30723502911543069659

[thorasgard1]

12 hours ago, thorasgard1 said:

My EFI : http://s000.tinyupload.com/?file_id=30723502911543069659

Work everything, expect trackpad and brightnes keys.

[thorasgard1]

DB4 clean install, work well.

[나수환]

U have trackpad that doesn't work? Try using smart touchpad kext. It worked good on me

[thorasgard1]

2 hours ago, 나수환 said:

U have trackpad that doesn't work? Try using smart touchpad kext. It worked good on me

Does not work for me.

[thorasgard1]

10 hours ago, thorasgard1 said:

DB4 clean install, work well.

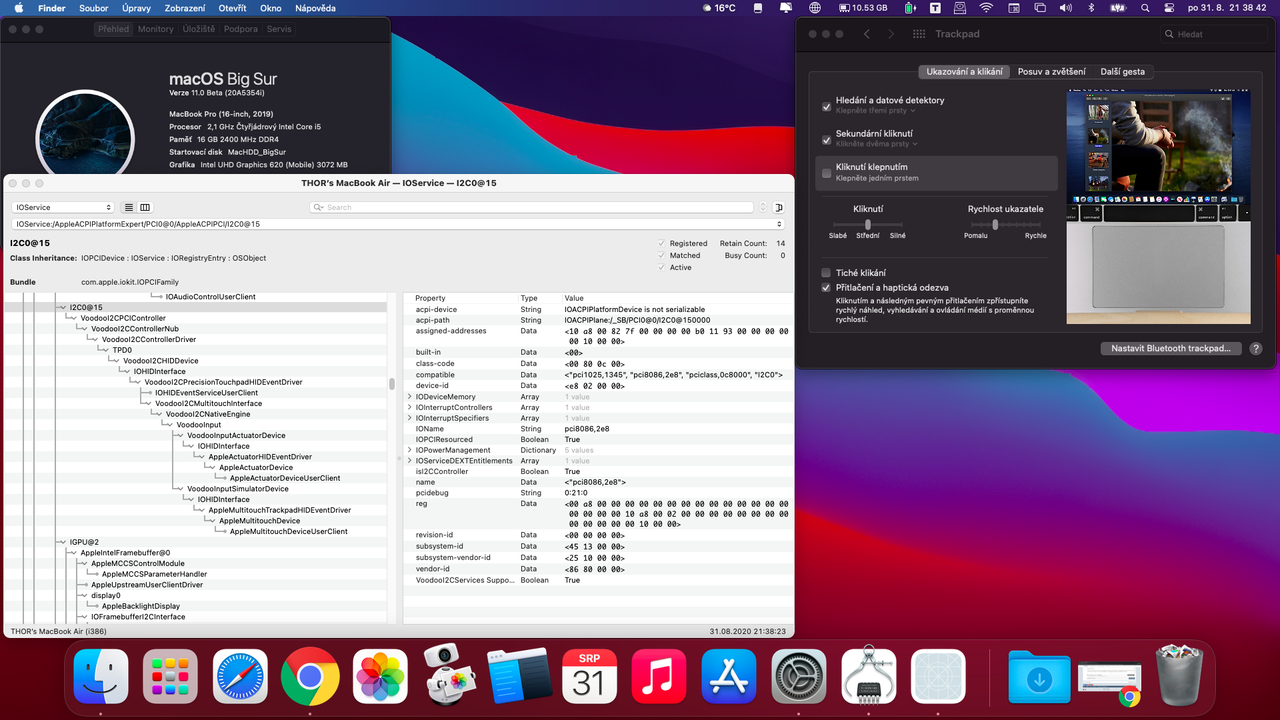

Snímek obrazovky 2020-08-06 v 19.30.42.zip

[uncletonn]

maybe you can config
Acer Aspire 5 (A515-55 ) i5-10300u comet lake for me ?

[Vincent S]

Hi guys,I have a very similar laptop with yours.Acer s50-51.I ues your opencore but the startup item could not be displayed.Can you tell me your main bios set?I m deeply greatful.

[Andersom Rodrigues]

Should the notebook keyboard work?

Mine worked 2 times after trying to configure but then stopped.

I'm using Catalina.

[thorasgard1]

2 hours ago, Andersom Rodrigues said:

Should the notebook keyboard work?

Mine worked 2 times after trying to configure but then stopped.

I'm using Catalina.

Look into Catalina forum.

[thorasgard1]

22 hours ago, Vincent S said:

Hi guys,I have a very similar laptop with yours.Acer s50-51.I ues your opencore but the startup item could not be displayed.Can you tell me your main bios set?I m deeply greatful.

http://s000.tinyupload.com/?file_id=52035583648034342581

[thorasgard1]

EFI DB5 READY http://s000.tinyupload.com/index.php?file_id=22942492956196211305

[thorasgard1]

I have working OC (test version) but everything work on 1st., 2nd boot disable Keyboard. When i replace OC in EFI its OK. Its strange. Before shutdown or reboot i must copy backup EFI/OC for working KB.  The same on Catalina and BigSur. Do you have some solution?

[thorasgard1]

On 8/26/2020 at 10:56 PM, thorasgard1 said:

I have working OC (test version) but everything work on 1st., 2nd boot disable Keyboard. When i replace OC in EFI its OK. Its strange. Before shutdown or reboot i must copy backup EFI/OC for working KB.  The same on Catalina and BigSur. Do you have some solution?

(Mega Success) Just now is my Acer fully Hackintosh

System Details

Model	Acer Aspire 5 A515-54G
Processor	Intel i5-10210u
GPU	Intel UHD Graphics 620
Memory	KINGSTON 2400MHz DDR4 16GB
SSD	NVMe INTEL 660P Series 1024 GB & KINGSTON Hyper SSD 512 GB
WiFi / BT	Intel AX 201
Audio	Realtek ALC255
Touchpad	ELAN 0504
BIOS Version	1.21
OpenCore Version	0.6.0

Working everything

Many time i spent trying create own OC, i was successfull on half, when i try SSDT patching i was unsuccessfull. I stop work and start finding on internet similar "machine". I find and start tunning OC. Thanks daliansky https://github.com/daliansky for inspiration.

But brightness keys is F12 down and Pause/Break up original is F4/F3. Help me with mapping if is possible.

[MaLd0n]

post ur dsdt here. i'll check brightness keys

u can check here too.

common in acer is _q11 and _q12

https://www.olarila.com/topic/8930-guide-easy-brightness-hotkey-remapping/

[Andersom Rodrigues]

3 hours ago, thorasgard1 said:

(Mega sucesso) Agora é o meu Acer totalmente Hackintosh

Detalhes do sistema

Modelo	Acer Aspire 5 A515-54G
Processador	Intel i5-10210u
GPU	Intel UHD Graphics 620
Memória	KINGSTON 2400 MHz DDR4 16 GB
SSD	NVMe INTEL 660P Series 1024 GB e KINGSTON Hyper SSD 512 GB
WiFi / BT	Intel AX 201
Áudio	Realtek ALC255
Touchpad	ELAN 0504
Versão BIOS	1,21
Versão OpenCore	0,6.0

Trabalhando tudo

Muitas vezes eu gastei tentando criar o próprio OC, tive sucesso na metade, quando tentei patching SSDT não tive sucesso. Paro de trabalhar e começo a encontrar na internet "máquina" semelhante. Eu encontro e começo a sintonizar OC. Obrigado daliansky https://github.com/daliansky pela inspiração.

Mas as teclas de brilho são F12 para baixo e Pause / Break up original é F4 / F3. Ajude-me com o mapeamento, se possível.



Could you share the settings (EFI)?

The wifi card you changed?

[thorasgard1]

6 hours ago, Andersom Rodrigues said:



Could you share the settings (EFI)?

The wifi card you changed?

EFI will be later.

Wifi is original Intel AX201, works well with https://github.com/OpenIntelWireless

Edited September 1, 2020 by thorasgard1

[thorasgard1]

9 hours ago, MaLd0n said:

post ur dsdt here. i'll check brightness keys

u can check here too.

common in acer is _q11 and _q12

https://www.olarila.com/topic/8930-guide-easy-brightness-hotkey-remapping/

I dont use DSDT in OC, bacause dont work no KP but stop booting. I am using SSDT patches, which a i find a tunned. At home i will be trying next version.

Below is my/your premade DSDT which work super in Clover Catalina but not work in OC BS.



DSDT.zip

[MaLd0n]

keys is _Q8E and _Q8F

if cause KP need patch again, Opencore support override too. work like clover

[thorasgard1]

32 minutes ago, MaLd0n said:

keys is _Q8E and _Q8F

if cause KP need patch again, Opencore support override too. work like clover

How to map this (_Q8E and _Q8F) brightness key

Posted DSDT not cause KP but this, when is used in OC



I EXTRACT new ACPI.

New origin.zip

Edited September 1, 2020 by thorasgard1

[MaLd0n]

56 minutes ago, thorasgard1 said:

How to map this (_Q8E and _Q8F) brightness key

extract one dump with ur opencore running

https://www.olarila.com/files/Utils/RunMe.app.zip
https://www.youtube.com/watch?v=k9wmIfGLe3A

[thorasgard1]

1 hour ago, MaLd0n said:

extract one dump with ur opencore running

https://www.olarila.com/files/Utils/RunMe.app.zip
https://www.youtube.com/watch?v=k9wmIfGLe3A

https://easyupload.io/1stxv8

[MaLd0n]

my opinion, in rename acpi use only it

with ssdt olarila, boot into system and extract new

the best is a clean config for one good start

SSDT-OLARILA.aml.zip
