DSDT patch requests

[aacase]

Having some trouble getting my 1080 ti working properly after using the High Sierra Image.

Here's my attached dump file

Send me Aarons-iMac.at.net.zip

[MaLd0n]

[ref]jaibuss[/ref], try with only InjectIntel, remove ig-platform-id

Added in 2 minutes 22 seconds:

[ref]aacase[/ref], https://Olarila.com/files/Utils/nvidia-update.command.zip

[aacase]

Added in 2 minutes 22 seconds:

[ref]aacase[/ref], https://Olarila.com/files/Utils/nvidia-update.command.zip

Thanks. I ran that from the Files folder before I sent the dump. Didn't seem to help, sadly.

[MaLd0n]

[ref]aacase[/ref], use only this clover folder

CLOVER.zip



connect only in Nvidia card, forget IntelHD

[aacase]

[ref]MaLd0n[/ref],

you're awesome, thanks. That cleared it up. I do still get some strange pixelation on the login screen, but dual monitors are working great!

[MaLd0n]

[ref]aacase[/ref], post one photo or video with problem

[herunur]

I have successfully installed OSX (El-Capitan, Sierra and High Sierra) in my Cube i7 Book.

Specification:

– Model Cube i7 Book

– CPU Intel Core m3 6Y30 1.51GHz (Skylake)

– GPU Intel HD515

– RAM 4GB

– SSD 256GB (upgraded)

This is works running well:

– Keyboard

– Bluetooth

– USB 2.0, 3.0, USB Type-C (external display)

– Intel HD 515

– Mouse use external USB mouse

– WIFI USB dongle 802.11n (RTL8188E)

– Sound AppleHDA.kext patched by "AppleHDA-Patcher.app_v1.8"

- Sound also running well with "voodoohda 2.9.0 clover-v11.pkg", but only for headphone mode, I cant setup for internal speaker

Doesn’t work:

– SD Cardreader

– Touchscreen

– Touchpad

– Pen

– Battery Status

– Brightness adjustment

Clover (existing, attached):

Clover attached taken from orbislacteus in https://www.hackintosh-forum.de/for...i7-book-tablet-skylake-core-m3-6y30/?pageNo=1

My DSDT-origin (Attached):

This generate from my Laptop Cube i7 book by Clover booting ( press F4).

Send me Heros-MacBook.zip

DSDT-Origin.zip

CLOVER.zip

[jaibuss]

there is no case I do not have acceleration in clover I have to put fake id 12345678 and so it gives video but only 3 megs if I do not put anything in clover gives a panic kernel thanks for helping

[MaLd0n]

[ref]herunur[/ref], DSDT.aml.zip



change GFX0 to IGPU

47465830

49475055

change HDAS to HDEF

48444153

48444546

change HECI to IMEI

48454349

494d4549

change SAT0 to SATA

53415430

53415441

new SEND_ME after reboot

Added in 54 seconds:

[ref]jaibuss[/ref],

<key>Properties</key>
	<dict>
		<key>PciRoot(0)/Pci(0x02,0)</key>
		<dict>
			<key>DVMT-prealloc</key>
			<string>32MB BIOS, 19MB framebuffer, 9MB cursor bytes</string>
			<key>framebuffer-fbmem</key>
			<data>
			AACQAA==
			</data>
			<key>framebuffer-patch-enable</key>
			<integer>1</integer>
			<key>framebuffer-stolenmem</key>
			<data>
			AAAwAQ==
			</data>
		</dict>
	</dict>

[Viperu]

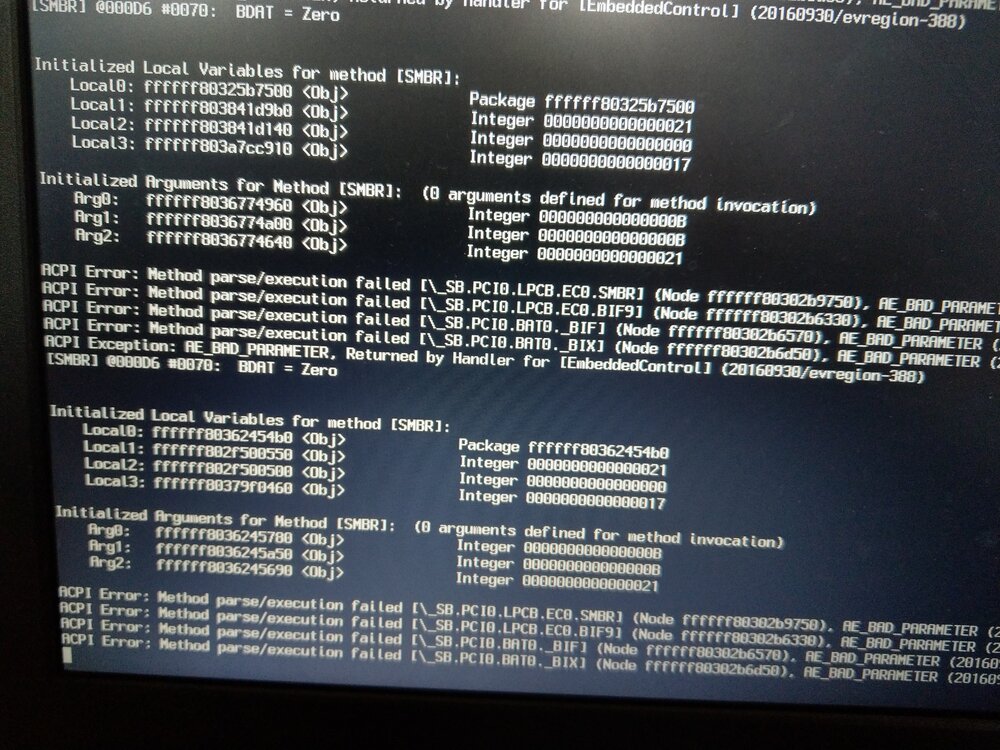

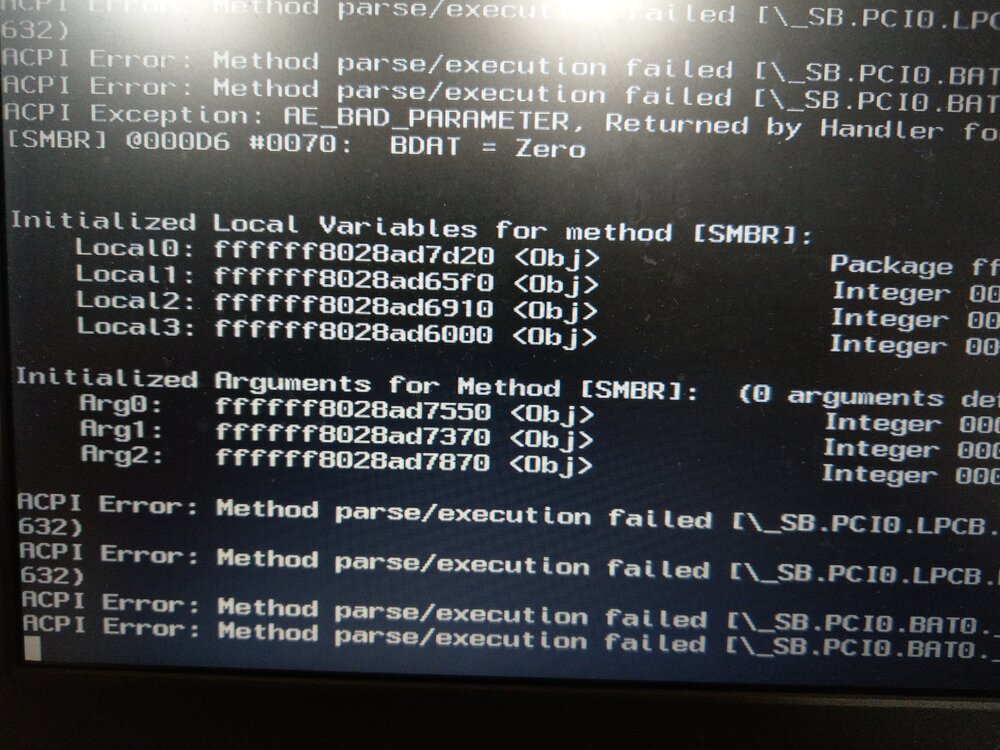

Power on display ACPI error……

Send me Kays-MacBook-Pro.zip

[tuananh1901]

Looking forward to the DSDT file help for this system !

Main : Giga Z370 HD3

CPU: i5 8500

GTX 960

Thank you very much !

Tuan’s iMac.zip

[herunur]

[ref]herunur[/ref], DSDT.aml.zip

change GFX0 to IGPU

47465830

49475055

change HDAS to HDEF

48444153

48444546

change HECI to IMEI

48454349

494d4549

change SAT0 to SATA

53415430

53415441

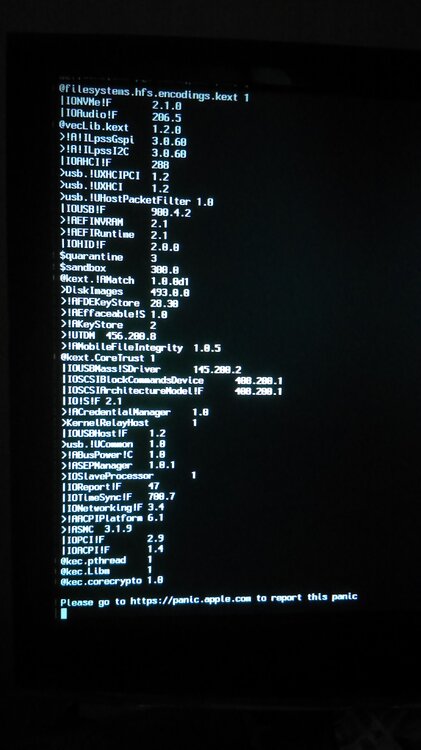

That changes has been done by clover configurator. but when booting take long time to ready. there some error "Problem report for MacOS" attached.

New Send me attached.



<key>Properties</key>
	<dict>
		<key>PciRoot(0)/Pci(0x02,0)</key>
		<dict>
			<key>DVMT-prealloc</key>
			<string>32MB BIOS, 19MB framebuffer, 9MB cursor bytes</string>
			<key>framebuffer-fbmem</key>
			<data>
			AACQAA==
			</data>
			<key>framebuffer-patch-enable</key>
			<integer>1</integer>
			<key>framebuffer-stolenmem</key>
			<data>
			AAAwAQ==
			</data>
		</dict>
	</dict>



Is this (up-side) code has to be added to config.plist? this step has not been done.

Send me Heros-MacBook.zip

Problem report for MacOS.rtf

[MaLd0n]

[ref]Viperu[/ref], ?

Added in 25 seconds:

[ref]tuananh1901[/ref], u need post a full dump

Added in 1 minute 16 seconds:

[ref]herunur[/ref], the problems is Lilu and AppleBacklightFixup

[oguz463]

System seems working fine but i wanna give a try. hope you guys help with dsdt thanks

Send me iMac.zip

[MaLd0n]

[ref]oguz463[/ref], DSDT.aml.zip

u need solve usb, patch limit port don't work more, check here

https://Olarila.com/forum/viewtopic.php?p=65287#p65287

[oguz463]

[ref]oguz463[/ref], DSDT.aml.zip

u need solve usb, patch limit port don't work more, check here

https://Olarila.com/forum/viewtopic.php?p=65287#p65287

Thank you. Will look at it.

Edit:

Dropped all unused USB ports. Mobo GA Z170-D3H HS07,HS08,HS09,HS11,HS12 are not in use. Back-panel 2-usb+(Ethernet) 3.0 port work only as USB 2.0

Edit 2:

Non-working 3.0 ports fixed by dropping USR1,USR2

Edit 3:

Yes I know its not related to this topic but I think I have a problem after first boot. Devices works with only USB 2.0 speed. But when i replug they work as USB 3.0. Any fix for that?

[afflatusx]

[ref]MaLd0n[/ref],

A couple weeks ago you helped me with DSDT patching on High Sierra and I still couldn't get sleeping/audio working after the patch. Turned out it was the motherboard being faulty - I replaced with it and installed Mojave, it's now much better - built in audio is working, shut down works as well.

Now the only thing does not work is sleep - it keeps waking itself up every once in a while. Also I installed an AMD 290X graphics card, looks like Display Port Audio no longer works. Could you take a look at the 'send me' file and see if there is anything need to be tweaked?

Thanks!

Tee

Send me Janes-iMac.zip

[Viperu]

Why is this?

[MaLd0n]

[ref]oguz463[/ref], u use usbinjectall

[tuananh1901]

[ref]Viperu[/ref], ?

Added in 25 seconds:

[ref]tuananh1901[/ref], u need post a full dump

Looking forward admin to help me 1 file DSDT. Thank you very much!

Main : Giga Z370

CPU: i5 8500

Card : GTX 960

send_me.zip

[MaLd0n]

[ref]Viperu[/ref], u need a battery patch

Added in 2 minutes 50 seconds:

[ref]tuananh1901[/ref], DSDT.aml.zip

[jaibuss]

Thanks for your quick response, I would like to know where I paste this in the config.plist?

Code: Select all

Properties

PciRoot(0)/Pci(0x02,0)

DVMT-prealloc

32MB BIOS, 19MB framebuffer, 9MB cursor bytes

framebuffer-fbmem

AACQAA==

framebuffer-patch-enable

1

framebuffer-stolenmem

AAAwAQ==

[MaLd0n]

[ref]jaibuss[/ref], devices tab, Properties

[oguz463]

[ref]oguz463[/ref], u use usbinjectall

Thank you for support. I think usb works well. Is there anything else i can do with my system?

By the way I have a weird problem. With applealc.kext my speakers make crackling sound while network activity especially downloading but with low sound. It was okay with toleda patch on high sierra. Do you have any idea? or is it a hardware problem?

[MaLd0n]

[ref]oguz463[/ref], no idea, but yes, is a common problem, same here
