onemanosx Posted February 4, 2019 Author Share Posted February 4, 2019 Yes i know i have use the guide for installing, but im blocked here : https://ibb.co/Khq6CwC are you using Olarila image? Try add -x in boot args also Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
papal Posted February 4, 2019 Share Posted February 4, 2019 yes ofc, Can we live video for help me please ? Quote Link to comment Share on other sites More sharing options...
safadon Posted March 12, 2019 Share Posted March 12, 2019 are you using Olarila image? Try add -x in boot args also Added in 4 minutes 48 seconds: Dear friend Onemanosx could you share your EFI of your plate MSI B360 gamimig please Quote Link to comment Share on other sites More sharing options...
thief_fighter Posted March 14, 2019 Share Posted March 14, 2019 Hi Onemanosx, this is my Asrock H310M USB map: HS08 - SS02 - directly on mainboard HS07 - SS01 - directly on mainboard HS06 - SS04 - front panel HS05 - SS03 - front panel HS01 - directly on mainboard HS02 - directly on mainboard HS03 - front panel HS04 - front panel HS09 - directly on mainboard HS14 - directly on mainboard (probably need to disable because of USR1 and USR2) Can you help me create custom USB inject kext? I want to use as little kext as possible Also there's USR1 and USR2 which count toward my 15 USB limit, which means I have to disable one of the USB port. What is USR1 and USR2 and can I remove it? Also do we need XHCI-unsupported kext? P.S how do I enable the cosmetic "Intel Quick Sync enable"? I have added ig-platform-id but it's still not show up Quote Link to comment Share on other sites More sharing options...
onemanosx Posted March 14, 2019 Author Share Posted March 14, 2019 [ref]thief_fighter[/ref], Run the app and upload RunMe USR1/2 can be excluded. They are just dummy ports. Yes, you need XHCI-unsupported kext. For custom About This Mac, read here https://www.idownloadblog.com/2017/01/13/how-to-modify-about-this-mac-hackintosh/ Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
thief_fighter Posted March 14, 2019 Share Posted March 14, 2019 Here is the file: https://www.dropbox.com/s/0tyrv4p4a7no88p/Send%20me%20Mac-mini.zip?dl=0 I'm not asking about custom About This Mac, I'm asking about this Quote Link to comment Share on other sites More sharing options...
onemanosx Posted March 14, 2019 Author Share Posted March 14, 2019 I'm not asking about custom About This Mac, I'm asking about this Exactly from that guide link. Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
thief_fighter Posted March 14, 2019 Share Posted March 14, 2019 Exactly from that guide link. I was not able to find the place to change GPU? Only computer name and CPU? Quote Link to comment Share on other sites More sharing options...

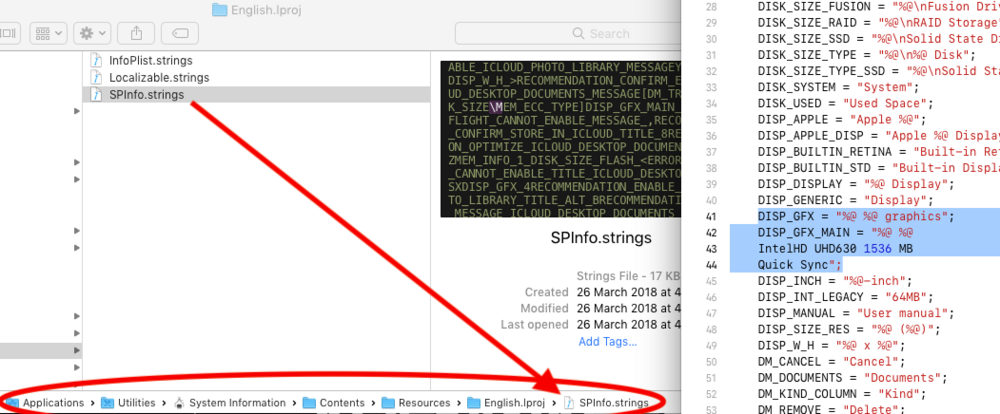

onemanosx Posted March 14, 2019 Author Share Posted March 14, 2019 [ref]thief_fighter[/ref], Remove USBInjectall and XHCI-unsupported kexts. Change SMBIOS to iMac18,3 Asrock-H310M-USB.kext.zip Edit the SPinfo.strings using a text editor Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
thief_fighter Posted March 14, 2019 Share Posted March 14, 2019 [ref]thief_fighter[/ref], Remove USBInjectall and XHCI-unsupported kexts. Change SMBIOS to iMac18,3 Asrock-H310M-USB.kext.zip .png Wow, it replaced both the USBInject and XHCI kexts, nice! Thanks P.S I was not able to make sleep work with SMBIOS iMac 18,3, even with Madl0n's recommended ig-platform-id, config.plist and FB Patcher. If I change SMBIOS to Macmini then it works OOB. Is there any issue with using Macmini SMBIOS? I don't want to sign in too many different mac, I'm afraid that Apple will lock my icloud account Quote Link to comment Share on other sites More sharing options...
onemanosx Posted March 14, 2019 Author Share Posted March 14, 2019 [ref]thief_fighter[/ref], I guess macmini8,1 is fine, too. Just use it if its not causing issues Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
safadon Posted March 14, 2019 Share Posted March 14, 2019 116/5000 Friend update the bios of msi b360 and now it does not load ..... you could share your EFI OF YOUR PLATE MSI B360 GAMING ARTICT Added in 1 minute 48 seconds: [ref]thief_fighter[/ref], I guess macmini8,1 is fine, too. Just use it if its not causing issues Friend update the bios of msi b360 and now it does not load ..... you could share your EFI OF YOUR PLATE MSI B360 GAMING ARTICT Quote Link to comment Share on other sites More sharing options...
thief_fighter Posted March 14, 2019 Share Posted March 14, 2019 [ref]thief_fighter[/ref], I guess macmini8,1 is fine, too. Just use it if its not causing issues Yes, no issue with anything. Thanks for your help! Quote Link to comment Share on other sites More sharing options...
onemanosx Posted March 15, 2019 Author Share Posted March 15, 2019 Friend update the bios of msi b360 and now it does not load Turn back to older bios. New update has bug Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
safadon Posted March 16, 2019 Share Posted March 16, 2019 A thousand thanks friend but I still have problems with the graphics intel only gives me 4Mb and the usb does not detect usb 3 Quote Link to comment Share on other sites More sharing options...
onemanosx Posted March 16, 2019 Author Share Posted March 16, 2019 (edited) A thousand thanks friend but I still have problems with the graphics intel only gives me 4Mb and the usb does not detect usb 3 You can try this guide here https://Olarila.com/forum/viewtopic.php?p=77719#p77719. I dont use Intelgraphics in this hack, so I dont know. Sorry. For USB, you might want to check out my injector kext for B360 board here https://Olarila.com/forum/viewtopic.php?p=64623#p64623 Edited March 16, 2019 by Guest Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
thief_fighter Posted March 16, 2019 Share Posted March 16, 2019 Onemanosx, I have just installed this wifi/bt card. https://www.ebay.com/itm/NEW-Broadcom-802-11n-WiFi-Bluetooth-4-0-PC-Desktop-WLAN-Card-Adapter-for-Mac-OS/272590478802?ssPageName=STRK%3AMEBIDX%3AIT&_trksid=p2060353.m2749.l2649 Do I need to change DSDT or USB patch of H310M? This is my ioreg https://www.dropbox.com/s/cxn4ohfyyxb76vl/Mac%20mini.ioreg?dl=0 Quote Link to comment Share on other sites More sharing options...
onemanosx Posted March 16, 2019 Author Share Posted March 16, 2019 Do I need to change DSDT or USB patch of H310M? Ioreg looks good. Wifi and bluetooth is detected. No need for DSDT patching. Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
boomers26 Posted April 3, 2019 Share Posted April 3, 2019 hello, can you please share your clover files for first installation? i tried to install with High Sierra and following your steps but i got ACPI error when first installation... thank you.. Quote Link to comment Share on other sites More sharing options...
onemanosx Posted April 3, 2019 Author Share Posted April 3, 2019 [ref]boomers26[/ref], That's not an error. You might need to wait longer. I only ran the usb stick once to fully install. You may want to disconnect your GTX and use only intelHD with fake id for installation. Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
wangyanlb Posted April 25, 2019 Share Posted April 25, 2019 I have a same mobo and video card. Can you upload you EFI files? THANKS A LOT Quote Link to comment Share on other sites More sharing options...
thief_fighter Posted May 11, 2019 Share Posted May 11, 2019 Ioreg looks good. Wifi and bluetooth is detected. No need for DSDT patching. I switched my mainboard to B360M Pro4 which has 6 Usb 3 connection. I'm trying to add SS05 and SS06 to the file you sent me but they are not showed up on ioReg. Are we limit to 4 SS port only? Here's my edited file https://www.dropbox.com/sh/3420kdj5myia483/AAAYzYMIxN3zyK6aZV2Bttvka?dl=0 Please note that HS04/SS03 is USB 3.1 gen 2 and HS03/SS04 is USB C. There're 2 more ports on the front which are not detected. Quote Link to comment Share on other sites More sharing options...
onemanosx Posted May 11, 2019 Author Share Posted May 11, 2019 [ref]thief_fighter[/ref], test Asrock-B360M-USB.kext.zip Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
thief_fighter Posted May 11, 2019 Share Posted May 11, 2019 [ref]thief_fighter[/ref], test Asrock-B360M-USB.kext.zip Worked perfectly, thanks! What did I do wrong? I already have 15 USB limit right, I can't enable another one? Quote Link to comment Share on other sites More sharing options...
onemanosx Posted May 11, 2019 Author Share Posted May 11, 2019 Worked perfectly, thanks! What did I do wrong? I already have 15 USB limit right, I can't enable another one? You did not extend the port range in the plist. You had maxed out 15 ports and cannot enable more ports. Unless, you do the patch limit and add more ports to the plist (theoretically should work) https://Olarila.com/forum/viewtopic.php?f=62&t=6539#p56905 Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
