DSDT patch requests

[seth21]

HI M. Sending for you for edit.

Audio is working. Efi working. Usbs are working too. dual boot fine and working with windows10. vega64 is recognized in system report. no flashing or funny failures at boot. however cpu is not the right one

its says i5 xeon 6 core but i have i7 8700

FCPX is crashing as soon as i click on transfer media, or transitions or any content with is should come up in the preview window. something in the report says is the gclvirtualscreenfailed when i check the report. the only reason i started the whole thing is try out fcpx

Thanks 4 help!!

bytheway after the first boot from ssd the system overview show the right details about the cpu after i used the dsdt from u for clover (*100/200/300*) it changed to i5 xeon

Send me Jimbos-iMac.zip

[MaLd0n]

HI M. Sending for you for edit.

Audio is working. Efi working. Usbs are working too. dual boot fine and working with windows10. vega64 is recognized in system report. no flashing or funny failures at boot. however cpu is not the right one

its says i5 xeon 6 core but i have i7 8700

FCPX is crashing as soon as i click on transfer media, or transitions or any content with is should come up in the preview window. something in the report says is the gclvirtualscreenfailed when i check the report. the only reason i started the whole thing is try out fcpx

Thanks 4 help!!

bytheway after the first boot from ssd the system overview show the right details about the cpu after i used the dsdt from u for clover (*100/200/300*) it changed to i5 xeon

use it in clover/acpi/patched

Arquivo Comprimido.zip

reboot and extract new SEND_ME, but i need ur clover folder too

[seth21]

use it in clover/acpi/patched

Arquivo Comprimido.zip

(43.72 KiB) Downloaded 2 times

reboot and extract new SEND_ME, but i need ur clover folder too

DONATE-BEER <-///-> SUBSCRIBE IN Olarila YOUTUBE CHANNEL

Top

Quick Reply

added the archive comprimido to patched --- here is the second read out >

"send me, clover folder, and I attached the clover install log too "

thank u M!

2nd.Send me Jimbos-iMac.zip

Clover_Install_Log.txt

CLOVER.zip

[MaLd0n]

U need put two files in folder, not a folder arquivo comprimido

[seth21]

Will do next day. Thanks to be so patient with me sir.

[seth21]

Thank U M! there u go

CLOVER.7z

Clover_Install_Log.txt

Send me Jimbos-iMac.zip

[loudvox]

is a system file, take test with one fresh install, install clover and use my clover folder



Today was my first opportunity to try. I am still having freezing issues. Should I try re-downloading OS X High Sierra and remake my USB installer? then reinstall? BTW I sent you a donation (Confirmation number: 52F760623L500982X). Thank you for your efforts. I'll send more when I am running without KP.

[ugooh]

Please help edit the dsdt for the system. Thanks

Send me Stealths-Air.zip

[Xephrey]

Please help. Great of you to offer this service. Thank you so much!

Send me Clevo PA71ES-G.zip

[blingblingninja277]

My apologies, I created a post under the Portuguese section, a link to the post with attached files:

Request for DSDT Patching and Notebook GTX 1050 Support

Post: https://www.Olarila.com/forum/posting.php?mode=edit&f=7&p=58997

SendMe: https://www.Olarila.com/forum/download/file.php?mode=view&id=10636

Clover: https://www.Olarila.com/forum/download/file.php?mode=view&id=10635

Hi I've got a custom Clover folder for my notebook, unable to boot with the Files from the guide,

I am able to boot into Mojave though performance is not as good as performance on HS with the same config and I'm not too sure on how to make changes.

I've attached SendMe & Clover folder, please could I get assistance with suggested patching to improve performance / suggest updated kexts?

Would it be possible to use Notebook GTX 1050 4GB?

Currently this setup only supports Intel HD 630.

On HS 'About' shows graphics as 'Intel HD 630 1536MB' though on Mojave graphics shows as 'Intel HD Graphics KBL CRB 1536MB'

Notebook Specs:

Gigabyte Sabre 17

CPU - i7-7700HQ

Intel HD 630

GTX 1050 4GB

RAM 16GB - 2x 8GB 2400MHz DDR4

Credits to this person for Clover setup https://github.com/gnehs/Sabre15KClover, basically using the same notebook.

Working

miniDP

HDMI

LAN

bluetooth

Camera

Display

Sound

Sleep/Wake

Trackpad (seen as mouse)

brightness

Not Working

Wi-Fi

USB ports on the left - 1x USB 3.0 port does not work. 1x USB 3.0 & 1x USB 2.0 ports on the right side of the laptop do work. USB-C Port not tested

GTX 1050

miniDP port marked with "D"

Edited August 20, 2018 by Guest

[MaLd0n]

Thank U M! there u go

use only it

CLOVER.zip



Added in 53 seconds:

Today was my first opportunity to try. I am still having freezing issues. Should I try re-downloading OS X High Sierra and remake my USB installer? then reinstall? BTW I sent you a donation (Confirmation number: 52F760623L500982X). Thank you for your efforts. I'll send more when I am running without KP.

send me new SEND_ME, i'll check if have some error in log

Added in 8 minutes 36 seconds:

Please help edit the dsdt for the system. Thanks

DSDT.aml.zip



Added in 11 minutes 42 seconds:

Please help. Great of you to offer this service. Thank you so much!

use it, reboot and extract new SEND_ME

DSDT.aml.zip

IF HAVE PROBLEMS, JUST PRESS O KEY IN CLOVER BOOT SCREEN, ACPI PATCHING/DSDT NAME AND CHANGE TO BIOS.AML

Added in 1 minute 17 seconds:

Notebook Specs:

Gigabyte Sabre 17

use only one topic, many confusions if u post in many topics

DSDT.aml.zip

[loudvox]

Here ya go. I reinstalled with a fresh download of macOS 10.13.6, using new clover download (Original version was 4635, current version is 4644). Replaced clover folder with yours. Still getting random KP. Also showing these warnings in the compiler summary. (see pic)

Send me Nicks-iMac-Pro.zip

[MaLd0n]

ere ya go. I reinstalled with a fresh download of macOS 10.13.6, using new clover download (Original version was 4635, current version is 4644). Replaced clover folder with yours. Still getting random KP. Also showing these warnings in the compiler summary. (see pic)

warnings in dsdt = nothing

KP appears if u use Hardware Acceleration? try with shikigva=60

[loudvox]

as a custom flag? or is there a place to tick it as an option in Clover config?

[MaLd0n]

boot flag

[loudvox]

boot flag

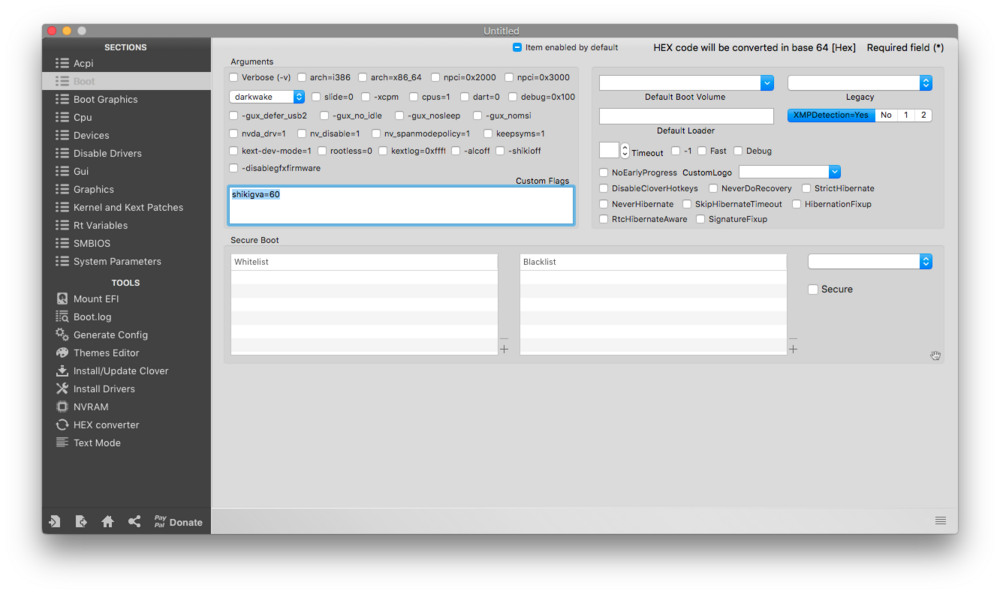

MaLd0n 2018-08-19 às 21.27.31.png



Tried it, KP while installing Adobe CC updates. I saw a suggestion on another forum board that suggested I turn off Memory Profile 1. Which I did. I am testing now. I'll let you know how it goes.

Edited August 20, 2018 by Guest

[MaLd0n]

the problem is it, hardware acceleration, x299 don't have a intelHDGraphics and cause some problems, with Intel Quick Sync is perfect

[loudvox]

Okay, So KP seems to have been solved by disabling "Extreme Memory Profile (X.M.P): Profile 1"

So now my question is, if the XMP was not necessary then is the rest of the settings I used correct or is this wrong as well (My motherboard is an X299 Aorus Ultra Gaming)?

1.) /M.I.T/Advanced Frequency Settings/

a.) Extreme Memory Profile: (X.M.P): Profile1 *** Now Disabled

2.) /M.I.T/Advanced Frequency Settings/Advanced CPU Core Settings

a.) Active Cores Control: Manual

b.) Hyper-Threading Technology: Enabled

c.) Enhanced Multi-Core Performance: enabled/disabled (optional; individual CPU compatibility yet to be verified)

d.) CPU Enhanced Halt (C1E): Enabled

e.) C6/C7 State Support: Enabled

f.) Package C State limit: C6

g.) CPU EIST Function: Disabled

3.) /M.I.T/Advanced Memory Settings/

a.) Extreme Memory Profile (X.M.P): Profile1 *** Now Disabled

4.) /BIOS/

a.) Boot Numlock State: Disabled

b.) Security option: Setup

c.) Full Screen Logo Show: Enbabled

d.) Fast Boot: Disabled

e.) CSM Support: Disabled

5.) /BIOS/Secure Boot/

a.) Secure Boot Enable: Disabled

6.) /Peripherals/USB Configuration/

a.) XHCI Hand-off: Enabled

7.) /Chipset/

a.) VT-d: Disabled (see VT-d notification in Section ASUS BIOS settings above)

[MaLd0n]

u can use disable

xmp is a profiles and cause some problems in many cases

in my mobo i have some problems with xmp too, i don't use it now

[loudvox]

What about the rest of those settings. Are they necessary? Or can I just load Optimized Defaults and use:

Secure Boot Enable: Disabled

XHCI Hand-off: Enabled

VT-d: Disabled

Do you know for sure?

[MaLd0n]

What about the rest of those settings. Are they necessary? Or can I just load Optimized Defaults and use:

Secure Boot Enable: Disabled

XHCI Hand-off: Enabled

VT-d: Disabled

Do you know for sure?

just secure boot and if need CSM

change bios only if u have problems

[loudvox]

MaLd0n - I cannot thank you enough. I will be sending another beer donation to you in the morning. Thank you for all your help. I am just glad that it's working 100%. I will be coming back to you for some learning later. Have a great night my friend.

[MaLd0n]

MaLd0n - I cannot thank you enough. I will be sending another beer donation to you in the morning. Thank you for all your help. I am just glad that it's working 100%. I will be coming back to you for some learning later. Have a great night my friend.

Same!

Just Enjoy!

[ekwipt]

Hi MaLd0n,

Could you please help me patch my DSDT, also I've used KGP new method of iMac Pro on the X99, I'm not sure I'm using the correct USB patch and Broadwell-E performance patch PMHeart. I've attached my clover if that helps. thanks for all the help on the forums. Beer incoming to you!

https://mega.nz/#!aN8VSJLL!dBkrAto9IZoN6iIiLHWfPup2wuMHrBuaHNELGLsfJmI

https://mega.nz/#!TRl1WBzT!d1S-h-INLXkpu1yL0vVRn-4cL_I81PJ4TYDyoc4TOs4

[kostas20]

@MaLd0n , please help me.

Everything on my laptop working great , except from battery indicator. Battery percentage doesn't change until I uncheck and recheck it. I think it has something to do with my ddst.

Can you check it , please ?

Send me MacBook-Pro.zip
