Help please for DSDT

[christ1111]

Hi @MaLd0n 😎 I need some help of you here I have trouble to compile my DSDT from my new HP Prodesk 600 G1

I have 3 error non resolved the Dsdt is from Clover dump

Audio is Realtek ALC221 codec is this possible to patching also Audio layouts 15

Attaching file Thanks a lot my friend

Edit** attaching also all .aml dump



Reedit** I have donate 20 Box to danielnmaldonado@yahoo.com.br 😁





DSDT.aml.zip origin.zip

Edited June 28, 2020 by christ1111

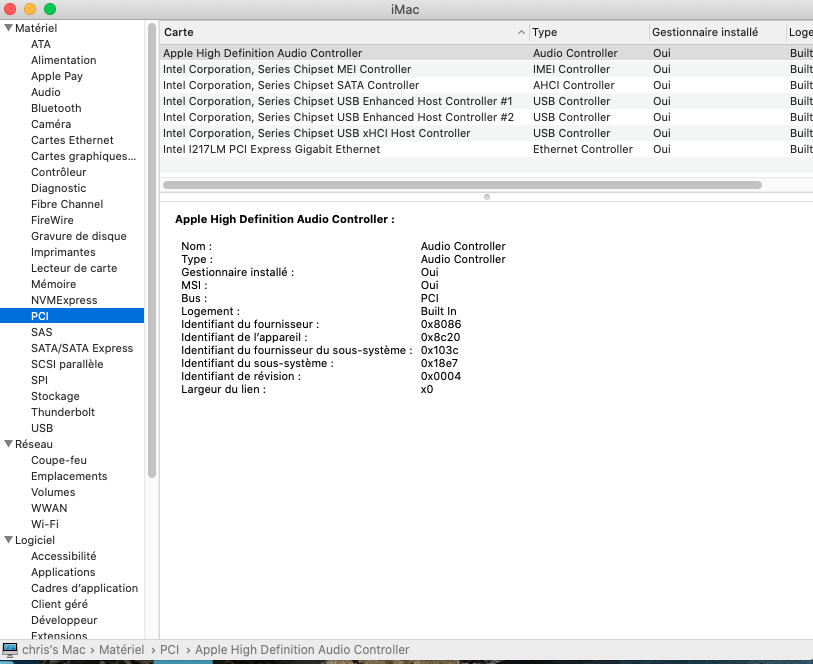

Good file attaching and image

[MaLd0n]

Hey, Bro! it's nice to see you here!

Here we go!

DSDT.Compiled no errors.zip



and patched

DSDT.Patched.zip

if use patched add two renames



change EHC1 to EH01
45484331
45483031

change EHC2 to EH02
45484332
45483032





[christ1111]

1 hour ago, MaLd0n said:

Hey, Bro! it's nice to see you here!

Here we go!

DSDT.Compiled no errors.zip 18.34 kB · 0 downloads



and patched

DSDT.Patched.zip 17.74 kB · 0 downloads

i use patched add two renames



change EHC1 to EH01
45484331
45483031

change EHC2 to EH02
45484332
45483032





Thank you verry much I will test and let you know 😀

Edit ***

Works Thank 😎

It is possible to make Sleep wake on that PC Intel HD 40600 ?





Edited June 28, 2020 by christ1111
Edit *** Works

[christ1111]

It is possible to make Sleep wake on that PC Intel HD 40600 ?

[MaLd0n]

1 hour ago, christ1111 said:

It is possible to make Sleep wake on that PC Intel HD 40600 ?

extract one ioreg for me, i'll check

[christ1111]

2 hours ago, MaLd0n said:

extract one ioreg for me, i'll check

Here you go my friend thanks a lot  Have a nice day.

Send me chriss-Mac.zip

EDIT *****

You will see Audio VoodooHDA because I try Voodoo for Sleep and its not work

Edited June 29, 2020 by christ1111

[MaLd0n]

remove ssdts and add dsdt (oc don't drop quirks, tables in other OS if we boot with opencore, is a strange things, i think devs fix it soon)

DSDT.aml.zip

check if sleep work

the 4600 have a little problem with sleep, have one project about it, but mobiles. u can test

framebuffer-patch-enable = 01000000
framebuffer-cursormem = 00009000



[christ1111]

1 hour ago, MaLd0n said:

remove ssdts and add dsdt (oc don't drop quirks, tables in other OS if we boot with opencore, is a strange things, i think devs fix it soon)

DSDT.aml.zip 17.69 kB · 1 download

check if sleep work

the 4600 have a little problem with sleep, have one project about it, but mobiles. u can test

framebuffer-patch-enable = 01000000
framebuffer-cursormem = 00009000



DSDT  for Sleep wake Not work Clover and Open core

Were I place the patch ?  In Clover and Open Core

framebuffer-patch-enable = 01000000
framebuffer-cursormem = 00009000

Edited June 29, 2020 by christ1111

[MaLd0n]

devices properties PciRoot(0x0)/Pci(0x2,0x0)

u can try fix edid too

[christ1111]

Not working 😅 Annyway thank you verry much for the help I really appreciate and I am back for sure

[MaLd0n]

1 hour ago, christ1111 said:

Not working 😅 Annyway thank you verry much for the help I really appreciate and I am back for sure

put one dgpu. this igpu is like hd530, several problems with sleep in some cases xD

[christ1111]

11 hours ago, MaLd0n said:

put one dgpu. this igpu is like hd530, several problems with sleep in some cases xD

OK good News Sleep wake work perfect in Big Sur ( Big Mac Surface )   with DSDT Sleep no other add  Thank you

this is suffisant for me because this is my new System NOW

[MaLd0n]

41 minutes ago, christ1111 said:

OK good News Sleep wake work perfect in Big Sur ( Big Mac Surface )   with DSDT Sleep no other add  Thank you

this is suffisant for me because this is my new System NOW

wow!

good!

the first beta looks amazing

[christ1111]

3 hours ago, MaLd0n said:

wow!

good!

the first beta looks amazing

Sorry I have little request because I change my WIFI for an Â WIFI Broadcom BCM943224hms

Its not list in PCI System Report like my previous Atheros

Do you please change this for me 😇

I put sendme to a link because I'm not allow to upload the ZIP

Send me chriss-Mac.zip



Strange thing is the card is working perfect with AirportBrcmFixup.kext to 10.12 at 10.15 and I just boot now in BS and its not work

Maybe new V of AirportBrcmFixup.kext is update I will see🤫

Edited June 30, 2020 by christ1111

[MaLd0n]

check if work

DSDT.arpt.zip

remove ssdts, dont need it

let me know

[christ1111]

8 minutes ago, MaLd0n said:

check if work

DSDT.arpt.zip 17.64 kB · 1 download

remove ssdts, dont need it

let me know

Correct perfect for WIFI but my audio AppleALC is gone from PCI

[MaLd0n]

5 minutes ago, christ1111 said:

Correct perfect for WIFI but my audio AppleALC is gone from PCI

lol

extract one ioreg

[christ1111]

3 hours ago, MaLd0n said:

lol

extract one ioreg

Audio ALC work but is not on the PCI list like the first DSDT

[christ1111]

Here  you go

Thank you

Do you  know why DSDT not working with Open Core because I lost keyboard and mousse

working perfect with Clover



OK EDIT *****

Works now whit the DSDT patch not the one for sleep and not with the latest for BCM wifi

see picture



Ioreg with Open core

chris’s Mac.zip

chris’s Mac open core.zip

Edited July 1, 2020 by christ1111

[MaLd0n]

54 minutes ago, christ1111 said:

OK EDIT *****

Works now whit the DSDT patch not the one for sleep and not with the latest for BCM wifi

test this folder via usb bootable

if work extract one ioreg

OC TEST via USB.zip

[christ1111]

On 7/1/2020 at 9:28 AM, MaLd0n said:

test this folder via usb bootable

if work extract one ioreg

OC TEST via USB.zip 3.26 MB · 1 download

Its boot correct Catalina and BS but no USB port because I lost keyboard and Mousse on my back USB port



Tomorow I send you PayPal money because I need help again for my laptop HP ProBook 6570b with Opencore I not able to boot with this Bootloader

I wil send you send me tomorrow Thank you very much for the help is greatly appreciate here because I know the time is important and you pass enormous time with lots people for helping you are agood men  😇 like me😄

[MaLd0n]

54 minutes ago, christ1111 said:

Its boot correct Catalina and BS but no USB port because I lost keyboard and Mousse on my back USB port



check your PM
