Snow Leopard on Gigabyte Mobos

MaLd0n · May 24, 2011

[b]G1.Assassin[/b], last modified Feb 2
[b]G1.Guerrilla[/b], last modified Feb 2
[b]G1.Sniper[/b], last modified Feb 2
[b]GA 945G-DS3[/b], last modified Jan 30
[b]GA 945G-S3[/b], last modified Jan 30
[b]GA 945GCM-S2C[/b], last modified Jan 30
[b]GA 945GCM-S2L[/b], last modified Feb 1
[b]GA 945GCMX-S2[/b], last modified Apr 16
[b]GA 945GMC-S2[/b], last modified Jan 30
[b]GA 945GMF-DS2[/b], last modified Jan 30
[b]GA 945GZM-S2[/b], last modified Apr 11
[b]GA 945P-S3[/b], last modified Feb 1
[b]GA 945PL-S3E[/b], last modified Jan 30
[b]GA 945PL-S3G[/b], last modified Feb 1
[b]GA 945PLM-S2[/b], last modified Jan 30
[b]GA 965G-DS3[/b], last modified Jan 30
[b]GA 965G-DS4[/b], last modified Jan 30
[b]GA 965GM-DS2[/b], last modified Jan 30
[b]GA 965GM-S2[/b], last modified Jan 30
[b]GA 965P-DQ6[/b], last modified Jan 30
[b]GA 965P-DS3[/b], last modified Jan 30
[b]GA 965P-DS3P[/b], last modified Jan 30
[b]GA 965P-DS4[/b], last modified Jan 30
[b]GA 965P-S3[/b], last modified Jan 30
[b]GA EG31M-S2[/b], last modified Jan 30
[b]GA EG31MF-S2[/b], last modified Jan 30
[b]GA EG41M-S2H[/b], last modified Jan 30
[b]GA EG41M-US2H[/b], last modified Jan 30
[b]GA EG41MF-S2H[/b], last modified Jan 30
[b]GA EG41MF-US2H[/b], last modified Jan 30
[b]GA EG41MFT-US2H[/b], last modified Jan 30
[b]GA EG43M-S2H[/b], last modified Jan 30
[b]GA EG45M-DS2H[/b], last modified Jan 30
[b]GA EG45M-UD2H[/b], last modified Jan 30
[b]GA EP31-DS3L[/b], last modified Feb 1
[b]GA EP35-DS3[/b], last modified Jan 30
[b]GA EP35-DS3L[/b], last modified Jan 30
[b]GA EP35-DS3P[/b], last modified Jan 30
[b]GA EP35-DS3R[/b], last modified Jan 30
[b]GA EP35-DS4[/b], last modified Jan 30
[b]GA EP41-UD3L[/b], last modified Jan 30
[b]GA EP41-US3L[/b], last modified Jan 30
[b]GA EP41T-UD3L[/b], last modified Jan 30
[b]GA EP41T-USB3[/b], last modified Jan 30
[b]GA EP43-DS3[/b], last modified Jan 30
[b]GA EP43-DS3L[/b], last modified Jan 30
[b]GA EP43-DS3LR[/b], last modified Jan 30
[b]GA EP43-DS3R[/b], last modified Jan 30
[b]GA EP43-S3L[/b], last modified Jan 30
[b]GA EP43-UD3L[/b], last modified Jan 30
[b]GA EP43-US3L[/b], last modified Jan 30
[b]GA EP43C-DS3[/b], last modified Jan 30
[b]GA EP43T-S3L[/b], last modified Jan 30
[b]GA EP43T-UD3L[/b], last modified Jan 30
[b]GA EP43T-USB3[/b], last modified Jan 30
[b]GA EP45-DQ6[/b], last modified Jan 30
[b]GA EP45-DS3[/b], last modified Jan 30
[b]GA EP45-DS3L[/b], last modified Jan 30
[b]GA EP45-DS3LR[/b], last modified Jan 30
[b]GA EP45-DS3P[/b], last modified Jan 30
[b]GA EP45-DS3R[/b], last modified Jan 30
[b]GA EP45-DS4[/b], last modified Jan 30
[b]GA EP45-DS4P[/b], last modified Jan 30
[b]GA EP45-DS5[/b], last modified Jan 30
[b]GA EP45-EXTREME[/b], last modified Jan 30
[b]GA EP45-UD3[/b], last modified Jan 30
[b]GA EP45-UD3L[/b], last modified Jan 30
[b]GA EP45-UD3LR[/b], last modified Jan 30
[b]GA EP45-UD3P[/b], last modified Jan 30
[b]GA EP45-UD3R[/b], last modified Jan 30
[b]GA EP45C-DS3[/b], last modified Jan 30
[b]GA EP45C-DS3R[/b], last modified Jan 30
[b]GA EP45C-UD3R[/b], last modified Jan 30
[b]GA EP45T-DS3[/b], last modified Jan 30
[b]GA EP45T-DS3R[/b], last modified Jan 30
[b]GA EP45T-EXTREME[/b], last modified Jan 30
[b]GA EP45T-UD3LR[/b], last modified Jan 30
[b]GA EP45T-UD3P[/b], last modified Jan 30
[b]GA EP45T-UD3R[/b], last modified Jan 30
[b]GA EP45T-USB3P[/b], last modified Jan 30
[b]GA EQ45M-S2[/b], last modified Jan 30
[b]GA EX38-DQ6[/b], last modified Jan 30
[b]GA EX38-DS4[/b], last modified Jan 30
[b]GA EX38-DS5[/b], last modified Jan 30
[b]GA EX38T-DQ6[/b], last modified Jan 30
[b]GA EX58-DS4[/b], last modified Jan 30
[b]GA EX58-EXTREME[/b], last modified Jan 30
[b]GA EX58-UD3R[/b], last modified Jan 30
[b]GA EX58-UD4[/b], last modified Jan 30
[b]GA EX58-UD4P[/b], last modified Jan 30
[b]GA EX58-UD5[/b], last modified Jan 30
[b]GA G31-S3G[/b], last modified Feb 1
[b]GA G31-S3L[/b], last modified Feb 1
[b]GA G31M-ES2C[/b], last modified Feb 1
[b]GA G31M-ES2L[/b], last modified Feb 1
[b]GA G31M-S2C[/b], last modified Feb 1
[b]GA G31M-S2L[/b], last modified Feb 1
[b]GA G31MF-S2[/b], last modified Feb 1
[b]GA G31MX-S2[/b], last modified Feb 1
[b]GA G33-DS3R[/b], last modified Feb 1
[b]GA G33M-DS2R[/b], last modified Feb 1
[b]GA G33M-S2[/b], last modified Feb 1
[b]GA G33M-S2H[/b], last modified Feb 1
[b]GA G33M-S2L[/b], last modified Feb 1
[b]GA G41M-Combo[/b], last modified Feb 1
[b]GA G41M-ES2H[/b], last modified Feb 1
[b]GA G41M-ES2L[/b], last modified Feb 1
[b]GA G41MT-D3[/b], last modified Feb 1
[b]GA G41MT-ES2H[/b], last modified Feb 1
[b]GA G41MT-ES2L[/b], last modified Feb 1
[b]GA G41MT-S2[/b], last modified Feb 1
[b]GA H55-UD3H[/b], last modified Jan 31
[b]GA H55-USB3[/b], last modified Jan 31
[b]GA H55M-D2H[/b], last modified Jan 31
[b]GA H55M-S2[/b], last modified Jan 31
[b]GA H55M-S2H[/b], last modified Jan 31
[b]GA H55M-S2HP[/b], last modified Jan 31
[b]GA H55M-S2V[/b], last modified Jan 31
[b]GA H55M-UD2H[/b], last modified Jan 31
[b]GA H55M-USB3[/b], last modified Jan 31
[b]GA H55N-USB3[/b], last modified Jan 31
[b]GA H57M-USB3[/b], last modified Jan 31
[b]GA H61M-D2P-B3[/b], last modified Feb 2
[b]GA H61M-USB3-B3[/b], last modified Feb 2
[b]GA H67A-UD3H[/b], last modified Jan 30
[b]GA H67A-UD3H-B3[/b], last modified Feb 2
[b]GA H67M-D2[/b], last modified Jan 30
[b]GA H67M-D2-B3[/b], last modified Feb 2
[b]GA H67M-UD2H[/b], last modified Jan 30
[b]GA H67M-UD2H-B3[/b], last modified Feb 2
[b]GA H67MA-D2H[/b], last modified Jan 30
[b]GA H67MA-D2H-B3[/b], last modified Feb 2
[b]GA H67MA-UD2H[/b], last modified Jan 30
[b]GA H67MA-UD2H-B3[/b], last modified Feb 2
[b]GA HA65M-D2H-B3[/b], last modified Feb 2
[b]GA HA65M-UD3H-B3[/b], last modified Feb 2
[b]GA P31-ES3G[/b], last modified Feb 1
[b]GA P35-DQ6[/b], last modified Jan 31
[b]GA P35-DS3[/b], last modified Jan 31
[b]GA P35-DS3L[/b], last modified Jan 31
[b]GA P35-DS3P[/b], last modified Jan 31
[b]GA P35-DS3R[/b], last modified Jan 31
[b]GA P35-DS4[/b], last modified Jan 31
[b]GA P35-S3[/b], last modified Jan 31
[b]GA P35-S3G [/b], last modified Jan 31
[b]GA P35C-DS3R[/b], last modified Jan 31
[b]GA P41-ES3G[/b], last modified Jan 31
[b]GA P41T-D3[/b], last modified Jan 31
[b]GA P41T-ES3G[/b], last modified Jan 31
[b]GA P41T-USB3L[/b], last modified Jan 31
[b]GA P43-ES3G[/b], last modified Jan 31
[b]GA P43T-ES3G[/b], last modified Jan 31
[b]GA P55-S3[/b], last modified Jan 31
[b]GA P55-UD3[/b], last modified Jan 31
[b]GA P55-UD3L[/b], last modified Jan 31
[b]GA P55-UD3L-TPM[/b], last modified Jan 31
[b]GA P55-UD3P[/b], last modified Jan 31
[b]GA P55-UD3R[/b], last modified Jan 31
[b]GA P55-UD4[/b], last modified Jan 31
[b]GA P55-UD4P[/b], last modified Jan 31
[b]GA P55-UD5[/b], last modified Jan 31
[b]GA P55-UD6[/b], last modified Jan 31
[b]GA P55-UD6-C[/b], last modified Jan 31
[b]GA P55-US3L[/b], last modified Jan 31
[b]GA P55-USB3[/b], last modified Jan 31
[b]GA P55-USB3L[/b], last modified Jan 31
[b]GA P55A-UD3[/b], last modified Jan 31
[b]GA P55A-UD3P[/b], last modified Jan 31
[b]GA P55A-UD3R[/b], last modified Jan 31
[b]GA P55A-UD4[/b], last modified Jan 31
[b]GA P55A-UD4P[/b], last modified Jan 31
[b]GA P55A-UD5[/b], last modified Jan 31
[b]GA P55A-UD6[/b], last modified Jan 31
[b]GA P55A-UD7[/b], last modified Jan 31
[b]GA P55M-UD2[/b], last modified Jan 31
[b]GA P55M-UD4[/b], last modified Jan 31
[b]GA P65A-UD3[/b], last modified Feb 2
[b]GA P67A-UD3[/b], last modified Jan 30
[b]GA P67A-UD3-B3[/b], last modified Feb 2
[b]GA P67A-UD3P[/b], last modified Jan 30
[b]GA P67A-UD3P-B3[/b], last modified Feb 2
[b]GA P67A-UD3R[/b], last modified Jan 30
[b]GA P67A-UD3R-B3[/b], last modified Feb 2
[b]GA P67A-UD4[/b], last modified Jan 30
[b]GA P67A-UD4-B3[/b], last modified Feb 2
[b]GA P67A-UD5[/b], last modified Jan 30
[b]GA P67A-UD5-B3[/b], last modified Feb 2
[b]GA P67A-UD7[/b], last modified Jan 30
[b]GA P67A-UD7-B3[/b], last modified Feb 2
[b]GA PA65-UD3-B3[/b], last modified Feb 2
[b]GA PH67-UD3[/b], last modified Feb 2
[b]GA PH67-UD3-B3[/b], last modified Feb 2
[b]GA PH67A-UD3[/b], last modified Feb 2
[b]GA PH67A-UD3-B3[/b], last modified Feb 2
[b]GA Q35M-S2[/b], last modified Jan 31
[b]GA Q57M-S2H[/b], last modified Jan 31
[b]GA X38-DQ6[/b], last modified Jan 31
[b]GA X38-DS4[/b], last modified Jan 31
[b]GA X38-DS5[/b], last modified Jan 31
[b]GA X38T-DQ6[/b], last modified Jan 31
[b]GA X48-DQ6[/b], last modified Jan 31
[b]GA X48-DS4[/b], last modified Jan 31
[b]GA X48-DS5[/b], last modified Jan 31
[b]GA X48T-DQ6[/b], last modified Jan 31
[b]GA X58-USB3[/b], last modified Jan 31
[b]GA X58A-UD3R[/b], last modified Jan 31
[b]GA X58A-UD5[/b], last modified Jan 31
[b]GA X58A-UD7[/b], last modified Jan 31
[b]GA X58A-UD9[/b], last modified Jan 31

Files for Gigabyte Mobos

-Extra folder

iMac9,1 / Core2Duo 775

Extra iMac9,1.zip

iMac11,1 / Core i 1156

Extra iMac11,1.zip

iMac12,1 / Core i 1155

Extra iMac12,1.zip

MacPro3,1 / Core2Quad 775

Extra MacPro3,1.zip

MacPro4,1 / Core i 1366

Extra MacPro4,1.zip

MacPro5,1 / Core i 1366

Extra MacPro5,1.zip

-Boot CD

HackBoot V5

Darwin Kernel 10.5.0(Core, Core2 e Core i Nehalem)

http://www.sendspace.com/file/ssj81b

HackBoot V6

Darwin Kernel 10.8.0(Core, Core2 e Core i Nehalem e SandyBridge)

http://www.sendspace.com/file/zc27gv

Gigabyte Intel

http://www.mediafire.com/?9lq0il8d0vlra2u

-Snow Leopard Retail DVD

Snow Leopard Retail

-DSDT Auto-Patcher

http://Olarila.com/forum/viewtopic.php?f=16&t=131

Installation

Boot the HackBoot CD

Remove the CD, insert Snow Leopard DVD, wait a few seconds and press F5, then select the DVD and press Enter.

After booting the DVD and selecting your language, wait for the "Install Mac OS X" screen. Go to menu "Utilities --> Disk Utility”, select the HD you want to format and click the "Partition" tab. In the "Volume Scheme" combo, choose how many partitions you want. Below, in "Options", choose "GUID", then select "Mac Os Extended (Journaled)", click the apply button and wait.

With this process done, close Disk Utility.

Select the destination HD and go on with the installation.

After the installation, boot using HackBoot again.

The system is running but it needs HackBoot to start, so we have to install the boot loader (Chameleon), the essential kexts and the patched DSDT.

Post installation

1- Copy the Extra folder to your boot partition

Important: for versions 2.0 GM and 2.1 of Chameleon, the file com.apple.Boot.plist must be renamed to org.chameleon.Boot.plist

2- Install Chameleon (in Snow Leopard or EFI partition)

3- Run DSDT Auto-Patcher and copy the generated DSDT to the Extra folder

4- Update the system to 10.6.7

Restart using -v (boot verbose)

Vanilla power management (SpeedStep) and Restart fix Use Chameleon

Added in boot.plist

<key>GeneratePStates</key>
<string>Yes</string>
<key>GenerateCStates</key>
<string>Yes</string>

Realtek RTL81xx Driver

http://lnx2mac.blogspot.com/p/realtekrtl81xx-osx-driver.html

USB 3.0 Driver for Mac OS

http://www.lacie.com/us/more/index.htm?id=10112

LegacyHda

ALC8xxHDA.kext.zip

AppleHda

AppleHDA_10.6.2.kext.zip

Voodoo Ps2

PS2.zip

AppleHdaDisabler

AppleHDADisabler.kext.zip

In some motherboards the audio codec may change from one revision to another, so you can use this to apply the correct patch to your revision.

HDEF_Gigabyte.app.zip

Credits and thanks to El Coniglio, oldnapalm and all people in the community who developed the original patches and kexts.

windstar · June 14, 2011

Thanks for the installation instructions!

Regardless the DSDT file created with autopatcher for my Gigabyte GA 965P-DS4 F13b

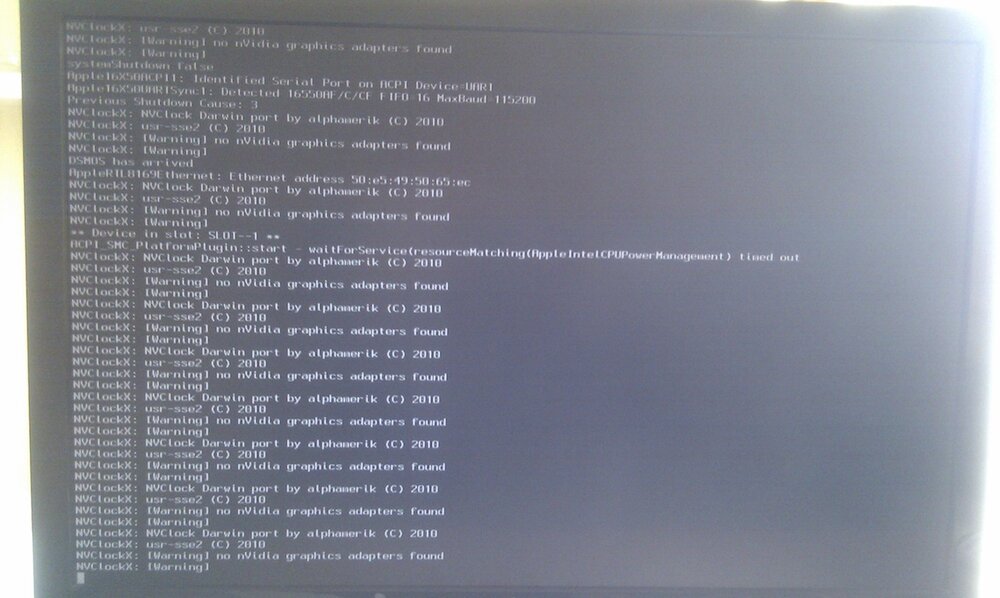

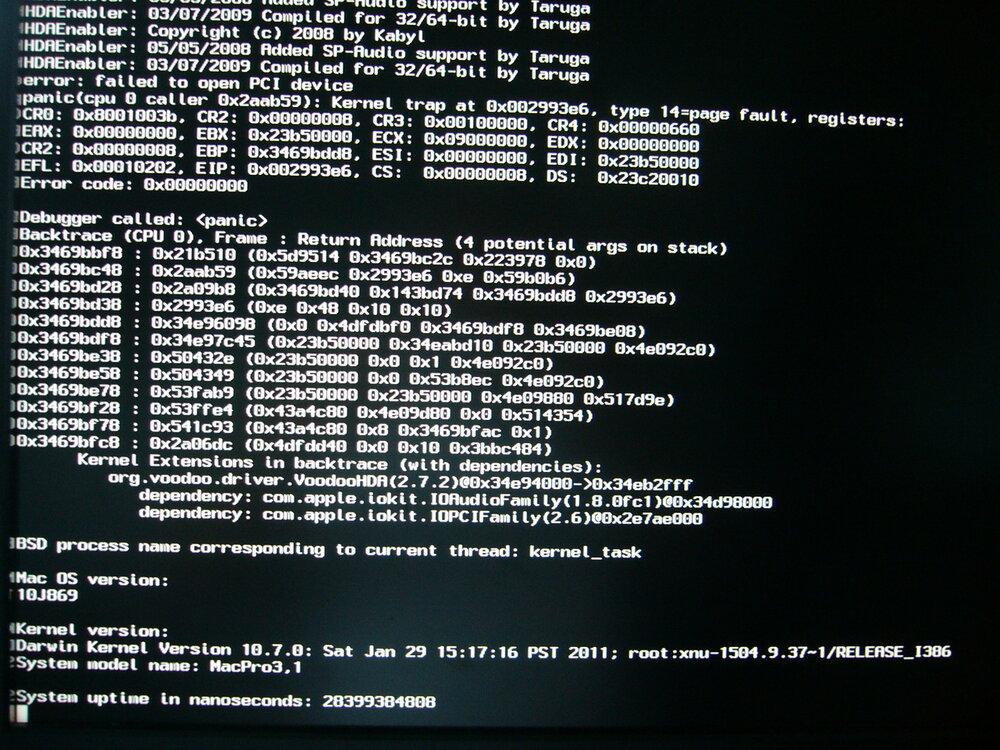

I still have Kernel Panic (see attachment)

Enclosed my ACPI.bin file created with everest.

everest_acpi_dsdt_ga965p-ds4-f13b.zip

Can someone please help me with that?

Thank You

windstar

kyndder · June 14, 2011

Thanks for the installation instructions!

Regardless the DSDT file created with autopatcher for my Gigabyte GA 965P-DS4 F13b

I still have Kernel Panic (see attachment)

Enclosed my ACPI.bin file created with everest.

[attachment=0]everest_acpi_dsdt_ga965p-ds4-f13b.zip[/attachment]

Can someone please help me with that?

Thank You

windstar

It's not DSDT, it's VoodooHDA that causes the Kernel Panic...

Remove AppleHDA or use AppleHDADisabler...

windstar · June 14, 2011

Thank You for the answer.

Think I did a big mistake and deleted the content from the /Extra/ folder.

Now i get this kernel panic (ACPI) even when I try to boot from the CD.

Any chance to save the SL installation or must i restart from the scratch?

kyndder · June 14, 2011

Thank You for the answer.

Think I did a big mistake and deleted the content from the /Extra/ folder.

Now i get this kernel panic (ACPI) even when I try to boot from the CD.

Any chance to save the SL installation or must i restart from the scratch?

If you don`t know what you do...

I think it is....

MaLd0n · June 14, 2011

Thank You for the answer.
Think I did a big mistake and deleted the content from the /Extra/ folder.

Now i get this kernel panic (ACPI) even when I try to boot from the CD.

Any chance to save the SL installation or must i restart from the scratch?

what is the motherboard and processor?

windstar · June 14, 2011

MoBo: Gigabyte GA 965P-DS4 F13b

CPU: Intel Core2 Duo E6420

Graphics: NVIDIA GeForce 8800GTS

My ACPI.bin file (windows 7) created with everest is attached in my first post in this thread.

MaLd0n · June 14, 2011

MoBo: Gigabyte GA 965P-DS4 F13b
CPU: Intel Core2 Duo E6420

Graphics: NVIDIA GeForce 8800GTS

My ACPI.bin file (windows 7) created with everest is attached in my first post in this thread.

Use HackBoot

windstar · June 15, 2011

I would but I cant because of the kernel panic (ACPI) I get even when I try to boot from the CD.

See picture above.

Berlin31 · July 2, 2011

Hi MaLd0n,

i tried your installations guide except i used the iboot cd instead of the hack one. After i installed 10.6.7 update and restarted in verbose mode i got a kernal panic. So i rebooted with the iboot cd and it went thru.

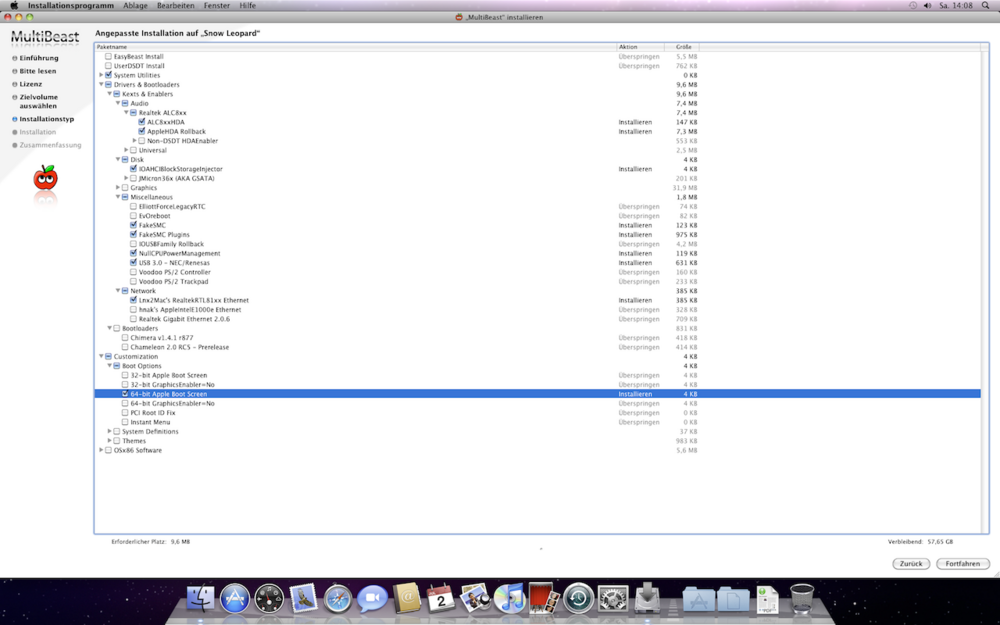

Then i used the multishit with the options klicked as seen in the attached files. Both combinations didn't work.

Before a tried a fresh installation using the 10.6.8 update, but it paniced right before it went thru all the way. So i rebooted and ran the update again, and this time it went all the way.

In another try using the iboot + multishit method ( see attachments too )i had the same problem with 10.6.8 comboupdate. But it worked after i ran the update a second time. But the boottime was really slow. So i used the -v to see where it hang and showed me something like

LPC device initialization failed: C-state power management not initialized

If i could solve this issue it would be really great.

So if you have any conclusion how to fix these problems i would be very thankful.

I used the autopatcher for all my tries

My System specs are:

Gigabyte Z68AP-D3

2500k

ati 4870 512 mb

Supertalent SSD 64 gb

4 gb ram 1333

MaLd0n · July 2, 2011

...

Use 10.6.8

add in boot.plist

<key>GeneratePStates</key>
<string>Yes</string>
<key>GenerateCStates</key>
<string>Yes</string>

Berlin31 · July 2, 2011

thanks a lot for the quick response

i used the iboot + multishit method and installed 10.6.8. the mistake i talked about in the last post does

not show up anymore. thx again.

but the booting still takes to much time and shows me

no nvidia graphics adapter found

seems weird to me, since i have an ati 4870 512 mb graphic card installed.

do you have any advice

oldnapalm · July 3, 2011

Maybe you installed any nVidia injector kext or NVClockX (kext to monitor nVidia clock and temperature)?

Berlin31 · July 3, 2011

thanks for your help

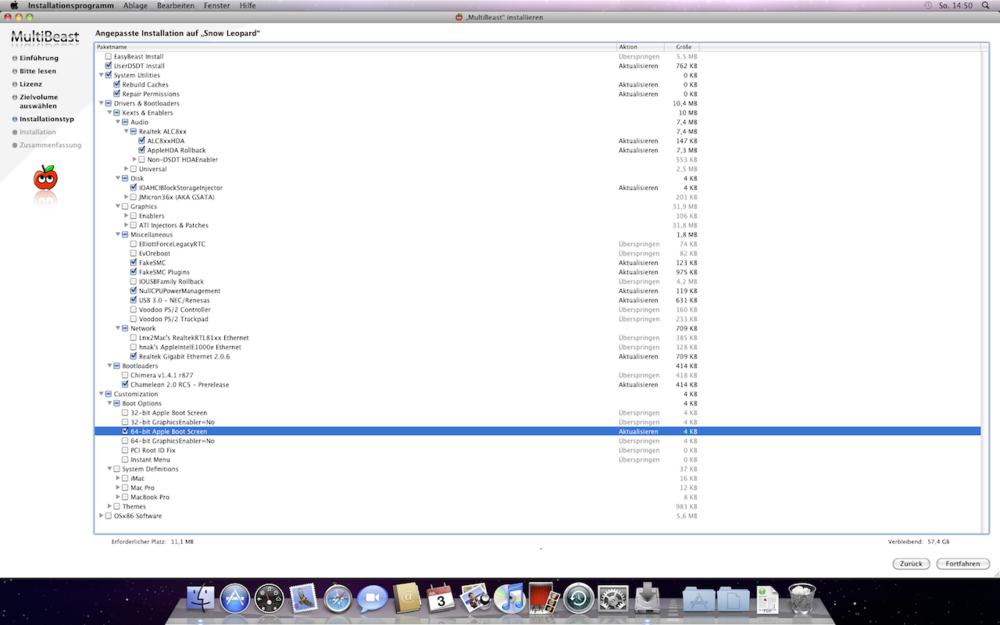

i attached two files. one shows which i options i klicked in multishit and the other one shows where it hangs while booting.

i appreciate your help

thx

oldnapalm · July 3, 2011

If you have an ATI card, remove NVClockX, it's for nVidia only. It may not be the problem, but we never know.

gds · July 18, 2011

hello everybody

I have a X58-UD7 and a 980X@4,30 GHz

and after installing everything like describe, i have this message on the boot

if i understand from the last posts it is AppleHDA which does this pb!

I need to use AppleHDADisabler

But how to inject it without to restart from scratch?

many thx

MaLd0n · July 18, 2011

hello everybody
if i understand from the last posts it is AppleHDA which does this pb!

I need to use AppleHDADisabler

if you use VoodooHda

use AppleHdaDisabler in S/L/E or remove AppleHda

oldnapalm · July 18, 2011

But how to inject it without to restart from scratch?

You can use TransMac if you have Windows in this PC, or single user (boot with -s)

mount -uw /
rm -r /System/Library/Extensions/AppleHDA.kext
exit

gds · July 19, 2011

Many thanks

right now i can use SL

everything is perfect

BUT my GTX 285 and my ALC889 are not recognized

how to modify it?

MaLd0n · July 19, 2011

Many thanks

right now i can use SL

everything is perfect

BUT my GTX 285 and my ALC889 are not recognized

how to modify it?

Video

use GraphicsEnabler=Yes or NVenabler.kext in S/L/E

Audio

use VoodooHda

gds · July 19, 2011

thx mald0n

So

my GTX is Ok right now

But about my ALC889 i used a voodooHDA.kext that i puted with kext utility

edit:

I tried: voodooHDA, Legacy889HDA, and ALC8xxHDA: nothing is ok

it appears on "about this mac" that the 889 is recognized but i don't have the optical ok!

ps: i tried to inject them with kext helper, kext utility and OSX86 tools

Ps2/ I think that if i use AppleHDA it will functiun BUT the pb is that i will have a kernel panic with voodooHDA on the boot, is it possible to delete voodooHDA and using AppleHDA???

do u have any suggestions?

many thx

edit2: after many tries, i have now the sound but not the optical output

if you have any ideas...

magnifico · September 15, 2011

DanMAlco

This is a dsdt original exctract from window msi p55-gd65

CPU i7 860

Audio ALC889

LAN Realtek 8111D

dsdt.dsl.zip

MaLd0n · September 15, 2011

DanMAlco

This is a dsdt original exctract from window msi p55-gd65

CPU i7 860

Audio ALC889

LAN Realtek 8111D

dsdt.magnifico.zip

magnifico · September 15, 2011

[attachment=0]dsdt.magnifico.zip[/attachment]

l You Are a superfast how a two ssd in raid zero

magnifico · October 15, 2011

Hey Dan..but this tutorial..also for Ud7 Z68 ?

Sign In

Snow Leopard on Gigabyte Mobos

Recommended Posts

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Link to comment

Share on other sites

Join the conversation

Hackintosh Tutorials

Hackintosh Tutorials

Support Olarila by making a donation
