PuNtANorTe Posted December 13, 2011 Share Posted December 13, 2011 Hi Mald0n, can you please make a DSDT for my mobo? Asus maximus iv extreme intel core i7 2600k Evga GTX 580 Saludos Quote Link to comment Share on other sites More sharing options...
althon Posted December 15, 2011 Share Posted December 15, 2011 Hi there, Thank's for the good work. I have a Compaq C762NR laptop - 10.6.8 OS X, Intel Core 2 Duo T5550 GMA X3100 ICH8 Conexant HDA almost perfect run with /E/E - FakeSMC and VooDooHDA in /S/L/E without DSDT. But the machine runs hot and when close the Lid, did not sleep. Can you make some patches to the DSDT for that problems? I extracted DSDT from OS X. DSDT.dsl.zip Quote Link to comment Share on other sites More sharing options...
powersongs Posted December 15, 2011 Share Posted December 15, 2011 Hi MaLd0n, can you please help me with DSDT on GigByte G41m-Combo MOBO?http://www.gigabyte.com/products/product-page.aspx?pid=3505#ov I appreciate it more than I can express. I'm setting this up for my son and he is so excited, but I have yet to get it working properly without a good DSDT. Thank you so much in advance! Any possibility of this one? Quote Link to comment Share on other sites More sharing options...
Weezle Posted January 11, 2012 Share Posted January 11, 2012 is there any way I could get a dsdt for a gateway nv53 Quote Link to comment Share on other sites More sharing options...
gobokster Posted January 18, 2012 Share Posted January 18, 2012 Hi MaLd0n can you help me edit my hp dv2922tx DSDT, been trying it with no success, as attach is the original that extracted from the source i'm installing snow leopard 10.6.8 on dv 2922tx power not cut off when lid closed. Marvel yukon conflict with Bluetooth integrated Wifi ( BCM4312 ) Alps Touchpad n keyboard not work as i need usb ps2 mouse and keyboard btw here are the quick specs of the hardware from hp websites -Intel Core 2 Duo processor T5750 (2.0 GHz) -250GB (5400RPM) Hard Drive -3GB DDR2 SDRAM -LightScribe Super Multi 8X DVD±RW with Double Layer Support -HP 1.3MP Webcam will work with some of 3rd party software -nVidia GeForce 8400M GS with 128MB DDR dedicated graphics memory - natively supported -802.11b/g WLAN and Bluetooth - it will detect using io80211Family but ethernet will not work -Ethernet - on OSX detect as MarvelYukon using IONetworkingFamily but BCM4312 -5 in 1 Digital Media Reader - Ricoh -Express Card/54PC Card Slot - not detected -Expansion Port 3 - not detected -Firewire - Natively supported thanks in advanced dv2922tx.zip Quote Link to comment Share on other sites More sharing options...
montyb Posted January 22, 2012 Share Posted January 22, 2012 Hi, Im Walter from Argentina, I'm trying to use the DSDT patch for the Dell Optiplex 780 with the application auto DSDT Partch. What I would like to know on time, is for BIOS version works. I would appreciate your help. From already thank you very much and excuse my English. Quote Link to comment Share on other sites More sharing options...
artur-pt Posted January 22, 2012 Share Posted January 22, 2012 hi any time u do a bios upgrade, must generate new dsdt of them and use this http://Olarila.com/forum/viewtopic.php?f=19&t=634 good hack Quote PB Easy Note TM 86 - i5 430 M - H55M - Ram - 6 GB - Alc272 - Radeon HD 5470 512 QE/CI Lenovo G500 - i5 3230m - HM77 - Ram - 8 GB - Conexant audio - HD 4000 My OS X Files Link to comment Share on other sites More sharing options...
montyb Posted January 22, 2012 Share Posted January 22, 2012 hi any time u do a bios upgrade, must generate new dsdt of them and use this http://Olarila.com/forum/viewtopic.php?f=19&t=634 good hack Tanks!! Quote Link to comment Share on other sites More sharing options...
mdjake Posted February 4, 2012 Share Posted February 4, 2012 I've created a dsdt for my board Gigabyte EP35-DS3P using GA EP35-DS3P.txt and ALC 889a.txt. With the compiled dsdt.aml I am successfully running Lion 10.7 Vanilla with FakeSMC and for the sound stuff I use ALC8xxHDA/AppleHDA Rollback. No other kexts was necessary. I still have sleep issues tough: 1. My PC goes to sleep properly but after waking up I get kernel panic. 2. I've tried using NullCPUPowermanagement - the PC goes to sleep and never wakes up again... 3. I tried to add patches LPC ICH9.txt + New HPET.txt and I still get kernel panic. Would you please help me with further patching? send.zip Quote Link to comment Share on other sites More sharing options...

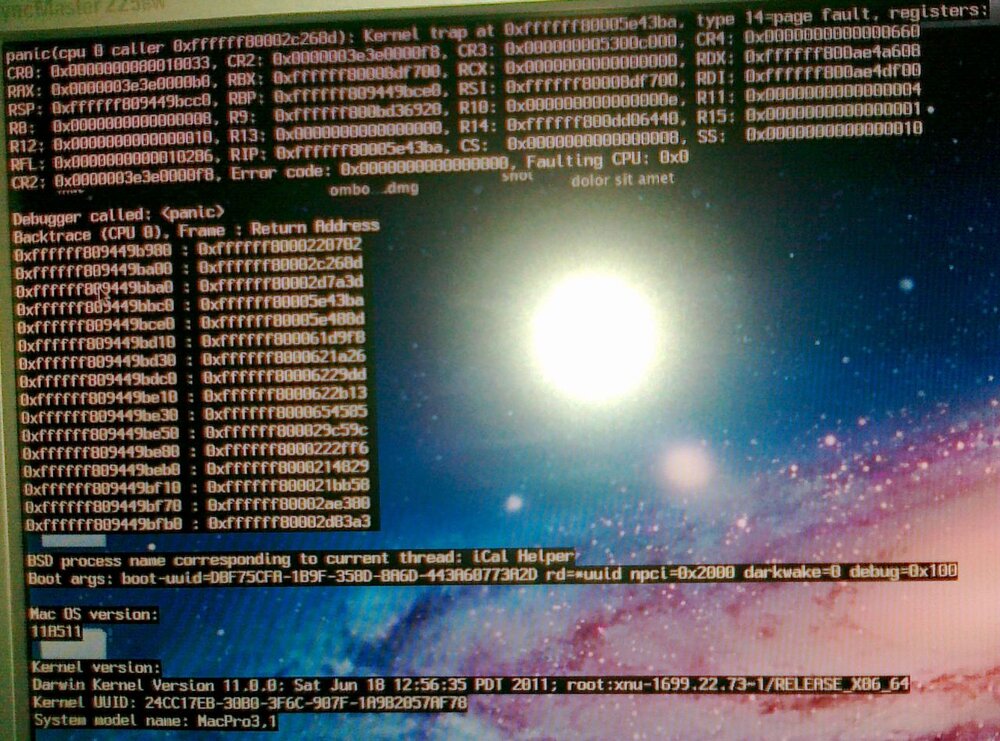

mdjake Posted February 4, 2012 Share Posted February 4, 2012 I've attached some info on the panic. Quote Link to comment Share on other sites More sharing options...
Cassio Posted February 4, 2012 Share Posted February 4, 2012 BSD process name corresponding to current thread: iCal Helper I don't think it's DSDT related, there are reports about it even on real Macs https://discussions.apple.com/thread/2652485?start=45&tstart=0 Have you tried without the rollback audio kexts? Quote -Donations- PayPal HERE - Stripe HERE - BuyMeaCoffee HERE - Mercado Livre HERE Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com Premium Users HERE - Problems with Paypal HERE Link to comment Share on other sites More sharing options...
mdjake Posted February 4, 2012 Share Posted February 4, 2012 Good job Cassio! Thank you very much. 1. I don't know how to revert from AppleHDA rollback (maybe I should have backed up the original first me noob or how?)... 2. Combo Update 10.7 -> 10.7.3 This replaced the AppleHDA rollback to original I suppose. Reboot. Sleep and wake up works )))) No sound. 3. Reapplied Realtek ALC8xx. Reboot. No sound. (sleep+wake still works) 4. Build new dsdt.aml I applied GA EP35-DS3P.txt ALC889A.txt ALC 889a.txt 5. Reboot with new dsdt.aml Still no sound Applying AppleHDA Rollback (multishit) (still forget to back the original up - hmm) 6. Reboot. Sound is up )))) Sleep. (crossing fingers) (waking...) Wake. no kernel panic )))))))) It works ! I'd like to ask which patch should I add for my Gigabyte EP35-DS3P rev 2.1 F6 and HDEF ALC889a onboard audio for audio? - ALC 889a.txt (under HDEF Gigabyte) - ALC889A.txt (under Misc) I tried if I add either of them or both of them - so in all cases - the onboard soundcard works under Lion 10.7-10.7.3 but I still have to add ALC8xxHDA and AppleHDA Rollback with multishit. Is ALC 889a.txt (HDEF Gigabyte section) is enough for my dsdt.aml? (original DSDT is 2-3 posts up attached as send.zip to my post) Quote Link to comment Share on other sites More sharing options...
Cassio Posted February 4, 2012 Share Posted February 4, 2012 You will always need ALC8xxHDA+AppleHDA rollback, or a patched Lion AppleHDA. In DSDT part, the important is that layout-id coincides with LayoutID in AppleHDA, see here http://Olarila.com/forum/viewtopic.php?f=19&t=634 Quote -Donations- PayPal HERE - Stripe HERE - BuyMeaCoffee HERE - Mercado Livre HERE Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com Premium Users HERE - Problems with Paypal HERE Link to comment Share on other sites More sharing options...
mdjake Posted February 4, 2012 Share Posted February 4, 2012 The layout ID is "0x75, 0x03, 0x00, 0x00" for my soundcard. I'm already using a modified GA EP35-DS3P.txt by modifing the layout ID part of that patch (I've read about this somewhere). into device label HDEF insert begin Method (_DSM, 4, NotSerialized)\n {\n Store (Package (0x04)\n {\n "layout-id", \n Buffer (0x04)\n {\n 0x75, 0x03, 0x00, 0x00\n }, \n "PinConfigurations", \n Buffer (Zero) {}\n }, Local0)\n DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))\n Return (Local0)\n } end; However both the "Gigabyte HDEF" and the "Misc" alc 889a patch already contains this layout id. Does it matter which one I use in my DSDT? Quote Link to comment Share on other sites More sharing options...
Cassio Posted February 4, 2012 Share Posted February 4, 2012 If you edited GA EP35-DS3P.txt to fit your needs, you don't need another HDEF patch. I would use the one from "Gigabyte HDEF" since the mobo is Gigabyte. Quote -Donations- PayPal HERE - Stripe HERE - BuyMeaCoffee HERE - Mercado Livre HERE Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com Premium Users HERE - Problems with Paypal HERE Link to comment Share on other sites More sharing options...
yash Posted April 28, 2012 Share Posted April 28, 2012 Please can you make DSDT for Intel D945GCPE.... Thanks in advance........ Quote Link to comment Share on other sites More sharing options...
ermalkoci Posted April 30, 2012 Share Posted April 30, 2012 I think I posted something on this forum about a gigabyte mobo, but I can't find it anymore. Have someone deleted or moved it? Do I have to repost it? Quote Link to comment Share on other sites More sharing options...
dirtmcgirt Posted May 16, 2012 Share Posted May 16, 2012 Hey MaLd0n or someone, can you hook me up with a DSDT for my notebook? Model: Asus X83VB-X2 Motherboard: Asus 60-NSVMB1100-A01 Chipset: GM45 Ram: 4GB (2x2) CPU: Intel Core 2 Duo T6400 2GHz WiFi: Atheros AR9285 I have everything as is working except Sleep & WiFi. Standard Install - SL 10.8.6 Thanks!!! Quote Link to comment Share on other sites More sharing options...
phamluong92 Posted June 14, 2012 Share Posted June 14, 2012 Can you help me patch my DSDT file. My machine is Asus K53sv with Win7+Mac Lion 10.7.4: CPU: Intel core i3-2310M @2,1 Ghz. RAM: 6gb bus 1333Mhz. VGA Card: Intel HD3000+ nvdia GT540M 1gb. Wifi: Atheros AR9002WB-1NG Wireless Network Adapter LAN: Realtek RTL8168/8111 PCI-E Gigabit Ethernet Adapter (PHY: Realtek RTL8211/8212) PCI Audio: Realtek ALC269 MY_FILE http://www.mediafire.com/?vccdvj0jlfbbu10 K53sv_DSDT.rar Quote Link to comment Share on other sites More sharing options...
fbifido Posted June 15, 2012 Share Posted June 15, 2012 pc1. ECS G41T-M v2.0, P E6600 3GHz, GeForce 7300 SE/7200 GS 256 MB, VIA VT1708B CE HD sound card Atheros L2 Fast Ethernet, Realtek PCI GBE Family Controller, System info: http://i46.tinypic.com/20l0d29.jpg pc2. MSI G41M-P26 (MS-7592), P E6500, Qualcomm Atheros AR8132 PCI-e, VIA VT1708B CE, ATI Radeon HD 4350 (RV710) send_me.zip Quote MSI H61M-P31/W8 (MS-7788), Intel® Core i3-3250 CPU @ 3.50GHz (Ivy Bridge-DT), Intel HD 2500, everything on-board. System info: http://i62.tinypic.com/fbb21t.png Link to comment Share on other sites More sharing options...
kobaugilo Posted August 4, 2012 Share Posted August 4, 2012 hello guys i have extracted dsdt.aml from linux and i dont know how to edit the dsdt any help is appreciated. TQ dsdt.zip Quote Dell Latitude 6320 Processor: intel core i5 2520M CPU@2.5 Ghz GPU: Intel HD Graphics 3000 MAC OS X 10.8.2 cr3dit to: cassio oldnapalm artur-pt there are heroes! Link to comment Share on other sites More sharing options...
mkpluton Posted August 15, 2012 Share Posted August 15, 2012 Hi i have Asrock B75m mother board, can you make some DSDT for that board? Quote Link to comment Share on other sites More sharing options...
swetank2 Posted September 17, 2012 Share Posted September 17, 2012 can you post the patched dsdt for my Dell Inspiron 15R Special edition (7520) in order for m to install the iAtkos L2 with windows 7 dual boot... i'm a newbie to it so any tips and suggestions are welcomed.. Quote Link to comment Share on other sites More sharing options...
sidomar13 Posted May 22, 2014 Share Posted May 22, 2014 Olá MaLdOn estou abrindo novamente esse tópico para te pedir ajudar com o meu gerenciamento de energia, procurei por vários fóruns mas não me dei muito bem em conseguir fazer isso e ai o OuVerRos me disse que você poderia me ajudar com relação a isso e observei que você ajudou muitos aqui no fórum, minha placa mãe é uma Gigabyte Ga-G31M-ES2L e gostaria muito que pudesse me ajudar com o gerenciamento de energia dela, pois já pesquisei tanto já tem uns 3 meses e não conseguiu preparar a minha DSDT.aml um primeiro passo que consegui foi extrair ela com o DSDT Auto-Pacher porem o restante que tinha que fazer não consegui pois os programas para edita-la não funcionaram por isso te peço ajuda com isso, obrigado Quote Link to comment Share on other sites More sharing options...
riesco Posted June 3, 2014 Share Posted June 3, 2014 Minha ultima chance de ativar o aceleramento gráfico da minha placa de vídeo.. se alguém puder patcher para mim o DSDT, ele da kernel panic, n sei o porq, pelo que entendi.. por causa do processador ser AMD. Tudo fica reconhecido nas informações do sistema, mas nada de funcionar. Quote Link to comment Share on other sites More sharing options...
