mirapuje

ICH10 Disk I/O error

Recommended Posts

hi im a new builder. my pc spec is asus p5ql-em/q9550/4gb-ram/WD-1TB/gtx1060/alc1200/tp-link751ND / windows 7


i downloaded the Olarila install for high sierra, (because i believe q9550 doesnt have the SSE4.2 required for mojave)


when i boot the Olarila clover, i can see a disk1: I/O error, then fail at erasing the disk to apfs, message is error at last partition etc etc.


i think this is an ICH10 error with appleAHCI.kext v329? however, how do i go about fixing this? as i am unable to access the usb drive in windows after loading Olarila on it?


your help is much appreciated, looking forward to get the hackintosh up and running, i hope theres life in the system yet.


thanks,

mira.p

Link to comment
Share on other sites

  • Administrators

[ref]mirapuje[/ref], enable patch ALPM IO Error AppleAHCIPort in config.plist from Olarila image

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

hi maldon,

thanks for your help and also for putting all the resources together.


I enabled the patch and installed HS without problem. when I copied your clover775 folder over to my EFI, the option for IO Error patch disappeared, I managed to put it back myself with the I/O binary patches in config.plist.


Then I installed the nvida webdriver, and that was straight forward without issue.


however I have not yet found a solution for the sound to work. my sound-device should be alc1200 (from Asus p5ql-em), and I tried injecting layout-id 1,2,3,5,7,11,12,13 , none of them worked. the only way the computer would boot into HS is if the layout-id is empty, any other number it would end with the error message 'time out with IOHDADEVICE........"


I have also tried fixed option and suggestions from https://hackintosher.com/guides/get-hackintosh-audio-working/ but neither have not worked.


do you have any ideas/suggestions? your help is much appreciated.


many thanks.


mira.p

Link to comment
Share on other sites

  • Administrators

[ref]mirapuje[/ref], post ur files

--Run_Me

RunMe.app

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • Administrators

[ref]mirapuje[/ref], try

DSDT.aml.zip

stay with lilu and applealc in clover/kexts/other

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

hi maldon,

thanks for the dsdt, I put it in the refi/clover/acpi/patch, and loaded it in clover startup, however it is the same timeout iohdadevice error. I also tried replacing applehda in extension with older (alc1200) one from internet back in 2009-12, then the Mac would boot with both bios.aml/your dsdt.aml, but neither show any sound output device. I tried Toleda patch also, but no luck still. it seems like applehda is the problem. I have put the vanilla HS applehda back in extensions.


from your website, there are dsdt for p5ql-e and p5q-em which are similar to mine, unfortunately I don't know enough to put the the code into test.


I hope by fixing the hackintosh it would keep my hardware alive for a few more years, that would be amazing.


I have attached my latest zip, please let me know if you have further ideas that we can try out to fix the problem.


many thanks.

Send me Simons-iMac.broadband.zip

Link to comment
Share on other sites

  • Administrators

[ref]mirapuje[/ref], use my DSDT, reboot and extract new SEND_ME

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • Administrators

[ref]mirapuje[/ref], CLOVER.zip

new send_me after reboot

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • Administrators

[ref]mirapuje[/ref], alc1200 = alc888



i think u have a applehda mod, u need a vanila file and inject via clover, devices tab

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

hi maldon,

I copied the vanilla applehda from your Olarila HighSierra USB into S/L/E. then I tried to inject layout-id with 1/2/3/4/5/6/7/11, still no sound output on anyone of them. I have attached my applehda in zip.


is there any other info/data that might help?


many thanks.


Added in 17 minutes 19 seconds:

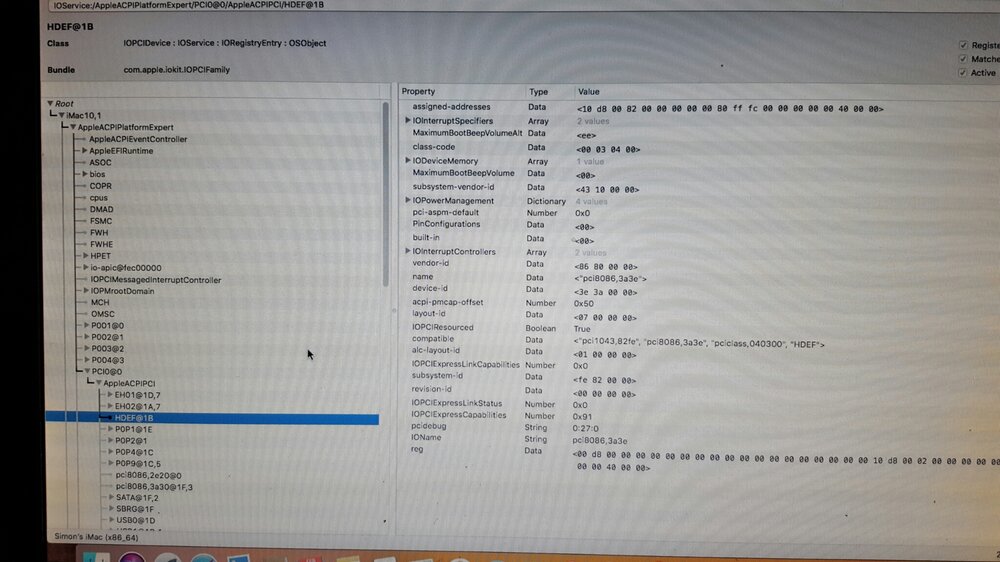

also please see my clover audio screenshot, it has 2 controller, is that correct?


Added in 2 minutes 58 seconds:

and this is the error message from my bios.aml + id layout 1


Added in 13 minutes 12 seconds:

correction: i think i have been using your dsdt + inject layout 1 to 11, not bios.aml.

AppleHDA.kext.zip



Link to comment
Share on other sites

  • Administrators

[ref]mirapuje[/ref], try applehdapatcher

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

On 2/21/2019 at 7:23 PM, MaLd0n said:

[ref]mirapuje[/ref], enable patch ALPM IO Error AppleAHCIPort in config.plist from Olarila image

this patch can't be working on OpenCore. You are sure is working?

Link to comment
Share on other sites

  • Administrators
25 minutes ago, R-88 said:

this patch can't be working on OpenCore. You are sure is working?

all patch is working in both

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • Administrators
10 minutes ago, R-88 said:

wihout MCE kext panic?

AppleMCEReporterDisabler.kext.zip

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • Administrators
4 minutes ago, R-88 said:

thanx! work! my last question: where i can put -raddvi on opencore? I can't find boot args or similar in config.plist

nvram

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

On 5/15/2020 at 9:30 PM, MaLd0n said:

nvram

Two questions:



1. there is a patch for ICH10 + Opencore 0.6.7 + Big Sur?

2. there is a way to rename default boot entries on Opencore 0.6.7?



Thanx in advance

Link to comment
Share on other sites

  • Administrators

try it

Quote

<dict>
                <key>#MatchOS</key>
                <string></string>
                <key>Comment</key>
                <string>ALPM IO Error AppleAHCIPort</string>
                <key>Disabled</key>
                <false/>
                <key>Find</key>
                <data>
                QGACAA==
                </data>
                <key>Name</key>
                <string>AppleAHCIPort</string>
                <key>Replace</key>
                <data>
                AAAAAA==
                </data>
            </dict>
