Mister3000

ASUS N53SV MOJAVE Install

Recommended Posts

Hello everyone,


I am new to this board but im in need of some help.


These is my laptop:

ASUS N53SV

i7 2670QM

512GB SSD

Intel HD3000/Nvidia GT540M

(computer originally with 720p panel but replaced it with 1080p)


Now, I have been running OSX Yosemite (10.10.5) for years on this laptop with no problem. my issue is that i tried to upgrade to High sierra and all I got was an error on the screen. so i gave up. Now i'm trying to upgrade to mojave but i have read that HD3000 support has been dropped.


I have downloaded both High Sierra and Mojave


any suggestions as to how should i proceed to try to upgrade ?


Can i go up to Mojave and if so, is there a guide you can point me to that i can use to build an installer USB for my machine ?


Thanks in advance for your help

Link to comment
Share on other sites

ok,

thanks for your response.. i'm going with high sierra as instructed.


I created a usb install using unishit and just the standard settings.. inject intel

However i gt an error message.

As a side note when my regular clover for yosemite comes up it looks high definition.. but when the clover i just created for install usb comes up the image is big.. dont know if related. here is a photo of my error.


<a class=IMG_1446.thumb.JPG.11793cc705d053c70328f00d4c70ef6b.JPG' alt='IMG_1446.thumb.JPG.11793cc705d053c70328f00d4c70ef6b.JPG'>


thanks

Link to comment
Share on other sites

[ref]Mister3000[/ref], use this image unishit is unreliable

http://Olarila.com/forum/viewtopic.php?f=51&t=6393

AMD Ryzen 7 3700X, MSI MPG X570 Gaming Plus, Corsair Vengeance RGB PRO 16GB DDR4 3200MHz, Sapphire rx 5700 XT, fractal celcius s36

:superman:superman

HP Notebook - 15-ay028ca (Touch), 16 GB 2133 MHz DDR4, Intel HD Graphics 520 1536 MB

Asus z97-c i5, i5 4460, 32 GB 1648 MHz DDR3, Radeon RX 560 4096 MB, Corsair H75 Liquid CPU Cooler

Link to comment
Share on other sites

Hello again,

as instructed here i went ahead and downloaded the image (5.5GB) but when trying to boot from it it didn't work

then i downloaded the clover folder sandy bridge (mobile) and copied that to my own install usb.

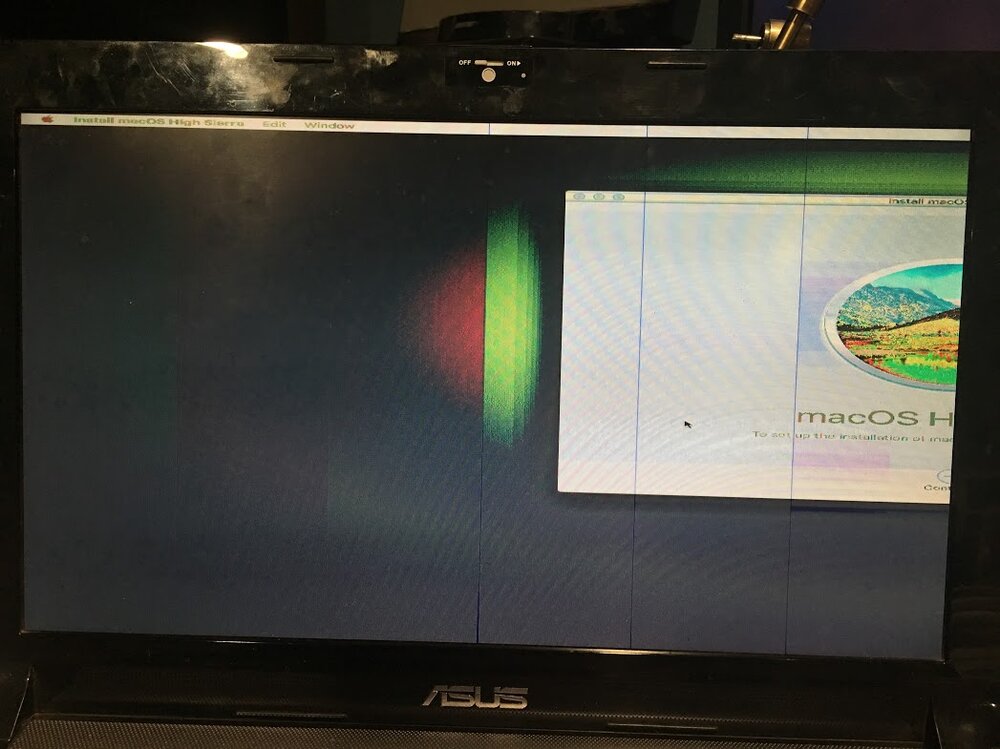

SUCCESS !! i was able to boot. however when it got to the install screen all i got was a bunch of distorted colors. so i used my old patched dsdt for 1080p and that worked. i have now successfully installed high sierra.


These are the issues im having now.

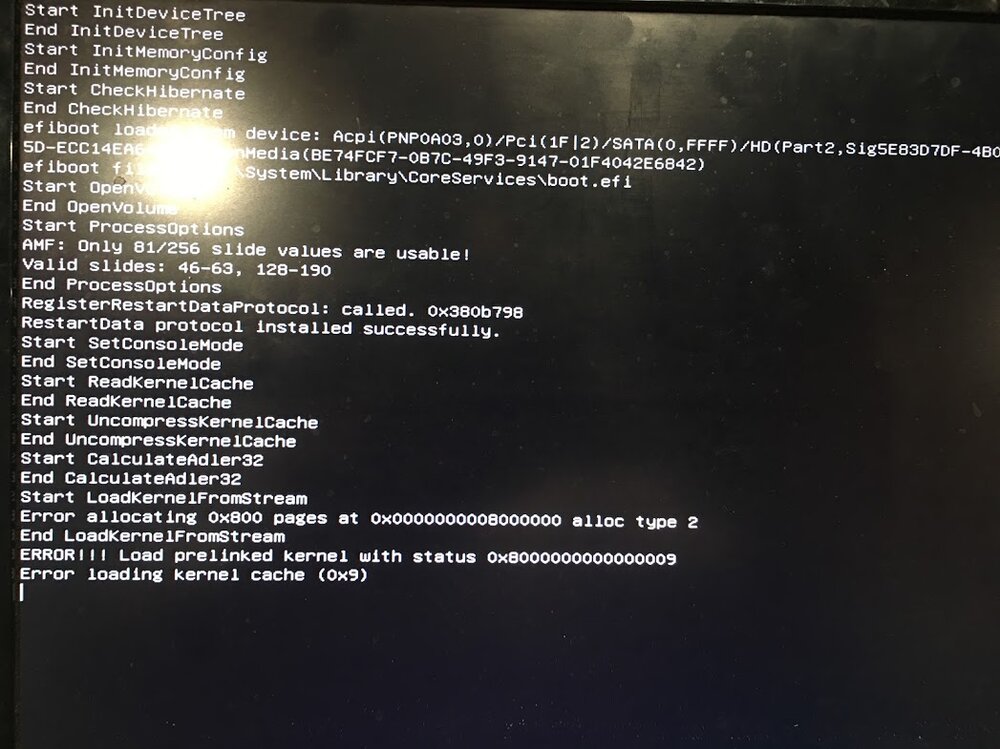

- boot up from the install usb is not always successful. some times i get the same error message i was getting from the installation image.


-----------

ERROR !!! Load prelinked kernel with status 0x80000000000009

Error loading kernel cache (0x9)

------------


- internal keypad and trackpad doesn't work. i have to use usb mouse and keyboard


- even though i have the sound icon enabled and i can adjust the volume, no sound can be heard through speakers


-USB3 port not working.


I am attaching pictures.

I have not installed clover yet to my internal harddrive SSD as i'm waiting for your guidance on how to resolve these issues.


can you guys point me in the right direction ..

should i try and find kexts to fix these or are these clover options i need to enable ?


I would like to get things working as best as possible before i submit my dsdt for proper patching / best tuning.


Thanks again for the help.



Link to comment
Share on other sites

[ref]Mister3000[/ref], try this: install clover efi boot loader to main drive

https://sourceforge.net/projects/cloverefiboot/files/Installer/

replace clover folder in efi/efi folder

https://Olarila.com/files/Clover.Folder/CLOVER.NOTEBOOKS.SERIES.CHIPSET.zip

repair permissions

https://Olarila.com/forum/viewtopic.php?f=81&t=8238&fbclid=IwAR2PuMosH_SbY8fcvuF0fJKjJG57j45-1BKjvjuQNaLFj1EuQ-u4-dz6iDc

reboot an hope things work better

AMD Ryzen 7 3700X, MSI MPG X570 Gaming Plus, Corsair Vengeance RGB PRO 16GB DDR4 3200MHz, Sapphire rx 5700 XT, fractal celcius s36

:superman:superman

HP Notebook - 15-ay028ca (Touch), 16 GB 2133 MHz DDR4, Intel HD Graphics 520 1536 MB

Asus z97-c i5, i5 4460, 32 GB 1648 MHz DDR3, Radeon RX 560 4096 MB, Corsair H75 Liquid CPU Cooler

Link to comment
Share on other sites

Ok, after lots of trial and error i figure out where the issue is coming from.

By using my old patched DSDT i was getting a full 1080p image however for some reason it was conflicting with other stuff. i removed the patched DSDT and now the keyboard and trackpad from the laptop are working.


my question is, how do i get the full 1080p image without using my previous DSDT.aml ?

is that something i need to enable on the config.plist or should i just request for a new dsdt to be patched ?


Thanks


Link to comment
Share on other sites

[ref]Mister3000[/ref], every device needs its own dsdt cause use on other devices causes conflicts

AMD Ryzen 7 3700X, MSI MPG X570 Gaming Plus, Corsair Vengeance RGB PRO 16GB DDR4 3200MHz, Sapphire rx 5700 XT, fractal celcius s36

:superman:superman

HP Notebook - 15-ay028ca (Touch), 16 GB 2133 MHz DDR4, Intel HD Graphics 520 1536 MB

Asus z97-c i5, i5 4460, 32 GB 1648 MHz DDR3, Radeon RX 560 4096 MB, Corsair H75 Liquid CPU Cooler

Link to comment
Share on other sites

ok i guess you are saying that the way to correct the resolution issue is through dsdt and not the config.plist

ok, i attached an external monitor and was able to complete the install. problem is that once install is completed, when it goes to the setup screen (setup you account, etc) the image goes black.

if the screen is all black i can't run the "run me" app to request a dsdt to be patch.


is it ok to load my old dsdt just so that i can use the run me app and submit for a new dsdt, or will that interfere with the "run me" app ?


BTW:

i understand that donations are appreciated for requesting dsdt patch, and i'm prepared so send my donation.


Thanks for all the help

Link to comment
Share on other sites

[ref]Mister3000[/ref], i have encountered that some time if unplug power an replug power seems to help in some cases

AMD Ryzen 7 3700X, MSI MPG X570 Gaming Plus, Corsair Vengeance RGB PRO 16GB DDR4 3200MHz, Sapphire rx 5700 XT, fractal celcius s36

:superman:superman

HP Notebook - 15-ay028ca (Touch), 16 GB 2133 MHz DDR4, Intel HD Graphics 520 1536 MB

Asus z97-c i5, i5 4460, 32 GB 1648 MHz DDR3, Radeon RX 560 4096 MB, Corsair H75 Liquid CPU Cooler

Link to comment
Share on other sites

Hello everyone,

I was able to finally complete my install.

e,


i was able to install my system using the image downloaded from this site. Had to do some changes to the config.plist to enable the 1080p. (enable dual link and chose mac 8,2 from SMBIOS)


my system:

ASUS N53SV Sandy Bridge

i7 2670QM

8GB Ram

HD3000 / GEForce GT540M discrete graphics

512GB SSD


I Had Yosemite installed prior to now upgrading to High Sierra and everything was working.

I Now have the following NOT working.


-WIFI / Bluetooth

-the USB 3.0 Port

-Sleep ( i invoked sleep from the menu and the screen went blank but it did not went to sleep and i had to restart)

-if i choose SHUTDOWN from the menu the screen goes blank and the fan goes on really loud but it never shuts off however if i choose restart, it properly shuts down and restarts.


I also don't think the CPU is properly tuned.


As of now, i don't have a DSDT file on my clover folder.


My question:

I thought that by submitting to get a patched dsdt will resolve issues.

Should I try to work out issues before I could get a patch dsdt ?


Thanks


more than happy to send my donation.


thanks in advance.

Link to comment
Share on other sites

[ref]Mister3000[/ref], -WIFI / Bluetooth these 2 guides

https://github.com/toleda/wireless_half-mini

https://hackintosher.com/forums/thread/enabling-third-party-broadcom-wlan-802-11a-b-g-n-wifi-bluetooth-cards-on-a-hackintosh-bcm94352z-bcm94322.6/

-the USB 3.0 Port can be done after dsdt patching

-Sleep ( i invoked sleep from the menu and the screen went blank but it did not went to sleep and i had to restart)

-if i choose SHUTDOWN from the menu the screen goes blank and the fan goes on really loud but it never shuts off however if i choose restart, it properly shuts down and restarts.

should be fixed with dsdt patching

http://Olarila.com/forum/viewtopic.php?f=19&t=1131

AMD Ryzen 7 3700X, MSI MPG X570 Gaming Plus, Corsair Vengeance RGB PRO 16GB DDR4 3200MHz, Sapphire rx 5700 XT, fractal celcius s36

:superman:superman

HP Notebook - 15-ay028ca (Touch), 16 GB 2133 MHz DDR4, Intel HD Graphics 520 1536 MB

Asus z97-c i5, i5 4460, 32 GB 1648 MHz DDR3, Radeon RX 560 4096 MB, Corsair H75 Liquid CPU Cooler

Link to comment
Share on other sites

hello, everyone..


This hackingtosh install has been the toughest for me.. don't know why but process has been painstaking so thank you again for all the support.

I have gotten bluetooth working, but i cannot get my atheros 9285 to work.

after dropping toledaARPT.ket on my EFI/CLOVER/KEXT/OTHER WIFI network comes up but all i got is "scanning networks" but nothing shows up.


I know the card works, because i had it working under YOSEMITE.


after doing a google search i found that the info.list file in contents info.l=plist pci168c,2b should be the right string and thats already the case.


tried a different guide and used kext installer to install airportatheros40 and that resulted in no wifi hardware detected.


running out of searches here ..


any thoughts ?


thanks

Link to comment
Share on other sites

Ok, found this under patches..


but i dont know where does it goes ..

is it a config.plist patch ?


---------

one last thing.. is there a miniPCIe card that will give me wifi+Bluetooth natively ?

Dell 1510 keeps coming up but some say no bluetooth is included.



thanks

# Maintained by: toleda for: github.com/toleda/wifi_ar9380-ar928x

# File: arpt1-ar928x-ar9380_v2.txt

# Credit: MasterChef, PikeRAlpha, THeKiNG

#

# Atheros AR9380/AR9280/AR9285/AR9287 WiFi dsdt edits

# Verify IOReg/pci168c device @1C,6/RP07 otherwise, edit patch file:

# Find: RP07

# Replace All: name (name = IOReg/pci168c device name, RP01, BR01, PEX1, etc.)

#

# If no PXSX, manually add Device (ARPT) after Name (_ADR, 0x001C000x) to dsdt and

# edit patch file:

# Find: PXSX

# Replace All: ARPT

# dsdt edit looks like:

# Device (name)

# {

# Name (_ADR, 0x001C000x)

# Device (ARPT)

#

# 1. Insert device ARPT dsdt injection

into device Label PXSX parent_label RP07 replace_content begin

Name (_ADR, Zero)\n

Name (_SUN, One)\n

Name (_PRW, Package (0x02) {0x09,0x04})\n

Method (_DSM, 4, NotSerialized)\n

{\n

If (LEqual (Arg2, Zero)) { Return (Buffer() { 0x03 } ) }\n

Return (Package()\n

{\n

"AAPL,slot-name","AirPort",\n

"built-in", Buffer () {0x00},\n

"device-type","AirPort",\n

"model","Atheros AR9x8x 802.11 a/b/g/n Wireless Network Controller",\n

"name", "AirPort Extreme",\n

"compatible","pci168c,30"\n

})\n

}\n

end;

into definitionblock code_regex . insert

begin Store ("arpt1-ar928x-ar9380_v2 dsdt edits, github.com/toleda", Debug) end

Link to comment
Share on other sites

well then,

just when i thought i was all set..


here is where i am:

I replaced the atheros card with the AW-CE123H combo card and now have wifi/bluetooth working.


then i updated to high sierra 10.13.6 and now all i get is black screen after boot up.


Have read much about it, and all i can find is that i need the intelfixup kext. however that kext its already part of whatevergreen and lilu, both of those kexts are already on my efi folder since i'm using the folder downloaded for sandy bridge notebooks in this forum.


Any ideas whats causing the black screen after upgrading from 10.13.2 to 10.13.6 ?


HD3000 intel graphics / GT540M Discrete graphics

sandy bridge ASUS N53SV i7


Thanks

Link to comment
Share on other sites

AMD Ryzen 7 3700X, MSI MPG X570 Gaming Plus, Corsair Vengeance RGB PRO 16GB DDR4 3200MHz, Sapphire rx 5700 XT, fractal celcius s36

:superman:superman

HP Notebook - 15-ay028ca (Touch), 16 GB 2133 MHz DDR4, Intel HD Graphics 520 1536 MB

Asus z97-c i5, i5 4460, 32 GB 1648 MHz DDR3, Radeon RX 560 4096 MB, Corsair H75 Liquid CPU Cooler

Link to comment
Share on other sites

hello everyone..

My system is been working fine with the DSDT provided by me on this site after my donation and all tweaks. Only issue is that shutdown/sleep still doesnt work.

Im hoping a fix has been found by now..

I have tried a lot of different tricks but shutdown/sleep under High Sierra still not working.

any suggestions ? Do I need to run the rumme.app again ?



Thanks

Link to comment
Share on other sites

@MaLd0n Thank you for your EFI folder. tried it but the sleep/shutdown still doesn't work.

when i select reboot it works fine, but shutdown gets me a verbose output and then it goes to a black screen and the fan goes loud.



Very frustrating. !!



Can we try something else ?



Link to comment
Share on other sites

  • Administrators
12 minutes ago, Mister3000 said:

when i select reboot it works fine, but shutdown gets me a verbose output and then it goes to a black screen and the fan goes loud.

is a very old problems with some notebooks with old nvidia card

Support Olarila Vanilla Hackintosh by making a donation HERE

About Premium Users you can check HERE

Link to comment
