[Guide] Sierra on mobos Serie 200 / KabyLake / DSDT


MaLd0n

Recommended Posts

  • Administrators

First...

If you need DSDT edits for KabyLake or Skylake...

-Post your full Clover folder with original tables in Origin folder(Extract with F4 in Clover boot screen)

-Post ioreg, extract with ioreg Explorer

IORegistryExplorer 3.zip

-Run it, post files generate in your desktop

RunMe.app.zip

Installation


--Create a bootable copy of macOS Sierra

Flash Drive Maker.zip

Check out the link

http://www.insanelymac.com/forum/files/file/559-flash-drive-maker/


--Install Clover UEFI mode in USB stick

https://sourceforge.net/projects/cloverefiboot/files/Installer/


--Replace with my Clover folder with FakeCPUID 0x0506E3 and VoodooTSCSync.kext

CLOVER Installation.zip

*I have Core i7, if u have Core i5 or i3, you need edit VoodooTSCSync.kext with correct IOCPUNumber

VoodooTSCSync.kext.zip


The native support is commin'!


--Install Sierra and boot into system!


Post Installation


--Install Clover in UEFI mode and replace with my folder

CLOVER Post Installation.zip

--Reboot and activate video!


Bingo!

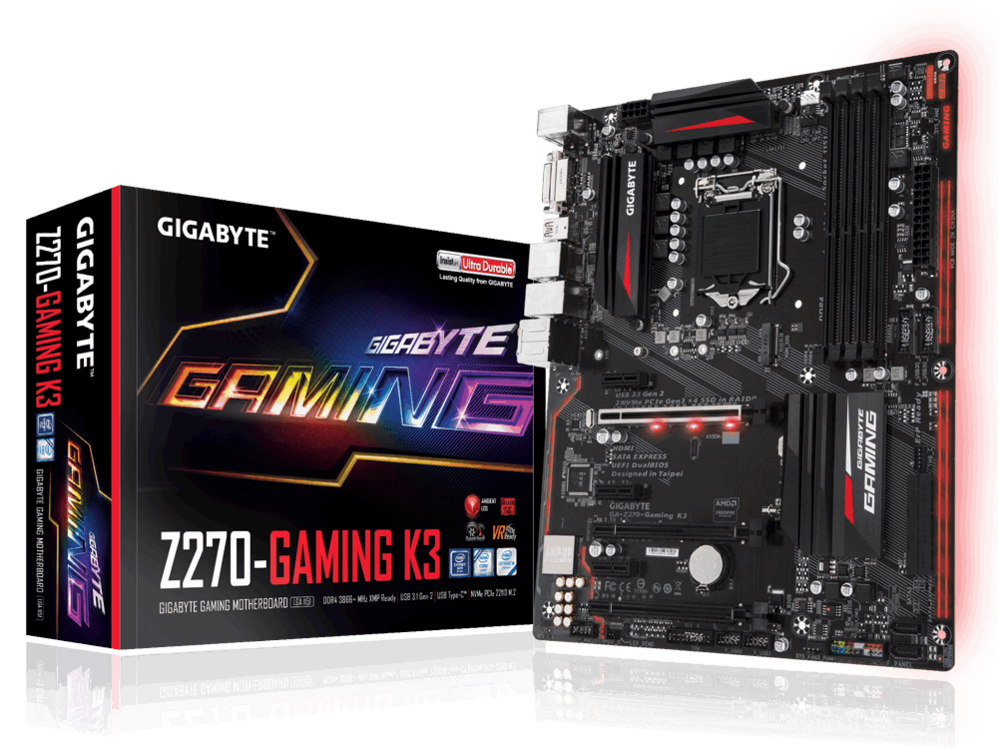

My mobo is Gigabyte GA Z270 Gaming K3, if you have other mobo, post your files here, i apply all patches for you! Read above!


--DSDT mobo GA Z270 Gaming K3

My DSDT with patches for KabyLake

DSDT.Z270 Gaming K3 MaLd0n.zip

DSDT.Z270 Gaming K3 MaLd0n without DTGP.zip

-FIX ERRORS AND WARNINGS
-HPET
-SATA
-DTGP
-SLPB
-DARWIN
-LPC
-XHCI
-PLUGIN TYPE
-HDAS to HDEF
-HDEF
-RTC
-IRQs
-SBUS
-BUS1
-MCHC
-ALS0
-SHUTDOWN
-LAN
-USBX
-PMCR
-EC
-PNLF
-HDMI NVIDIA / ATI



--SSDT PM

Generate your SSDT for PM, use ssdtPRGen by Piker-Alpha

https://github.com/Piker-Alpha

run in terminal

curl -o ~/ssdtPRGen.sh https://raw.githubusercontent.com/Piker-Alpha/ssdtPRGen.sh/Beta/ssdtPRGen.sh
chmod +x ~/ssdtPRGen.sh
sudo ~/ssdtPRGen.sh

ssdtPRGen.command.zip

--install Lan driver by Mieze

-Atheros

http://www.insanelymac.com/forum/files/file/313-atherose2200ethernet/


-Intel

http://www.insanelymac.com/forum/files/file/396-intelmausiethernet/


-Realtek

http://www.insanelymac.com/forum/files/file/88-realtekrtl8111-binary/


--Links


-FakeSMC

http://www.hwsensors.com/releases


-Audio

https://github.com/vit9696/AppleALC

http://www.insanelymac.com/forum/topic/293863-applehda-patch-requests/


-USB

https://bitbucket.org/RehabMan/os-x-usb-inject-all/downloads


Clear NVRAM, Purge and Kextcache

Olarila.command.zip



Credits and thanks to the old and new people in the community who developed patches and kexts.

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • 10 months later...
  • Administrators

extract files and post here

RunMe.app.zip

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • 1 month later...
  • Administrators

Hi ūüĎč I'm using High Sierra now can you help me with my DSDT of my mobo? Mine is ASUS PROME Z270 A

send me full dumps

RunMe.app.zip

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • 1 month later...
  • Administrators

Here's mine generated on my desktop

my System is

Mobo: ASUS PRIME Z270-A

CPU: Intel i7 7700 @3.60GHz

GPU: Gigabyte Nvidia GTX 1070 86B

DSDT.aml.zip

check my update topic

http://Olarila.com/forum/viewtopic.php?f=50&t=6254

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • Administrators

i don't know how to start

help me for DSDT With mobos GA-B250M-DS3

Intel Core i3 7100 3.90 GHz

Intel HD Graphics 630

DSDT.aml.zip

check my update topic

http://Olarila.com/forum/viewtopic.php?f=50&t=6254

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • 4 months later...
  • Administrators

I have successfully installed the Mojave on the Asus X441UVK kabylake and I have patched my DSDT, but it's not optimal.


Bluetooth, SD Card, and Audio not working ..


thank you...

DSDT.aml.zip

bt and sd u need a injector


audio

">

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • Administrators

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • 2 weeks later...
  • Administrators

[ref]eduardosz98[/ref], DSDT.aml.zip



change GFX0 to IGPU
47465830
49475055

change HDAS to HDEF
48444153
48444546

change HECI to IMEI
48454349
494d4549

change SAT0 to SATA
53415430
53415441

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • 1 month later...

Hi [ref]MaLd0n[/ref], I hope you can help me. Without patched DSDT I have an issue with Sleep on my kaby lake laptop using both Sierra and High Sierra - the system wakes up but screen is always black (changing EDID with FixEDID to Macbook Air Display didn't help). Also High Sierra shows only 24 bit framebuffer depth for an internal laptop screen instead of 32 bit I see in Sierra system report.

https://www31.zippyshare.com/v/bjfStRU4/file.html

Link to comment
Share on other sites

  • Administrators

[ref]podclub[/ref], DSDT.aml.zip

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • 1 month later...
  • Administrators

610 dont work, forget it

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • Administrators

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill¬†[email protected]

BTC 1BDzsV4bw3DVCiffFAeNKsdEzqkPXNVrXR

ETH BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115

USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9

USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ

PicPay @danielnmaldonado

PiX¬†@[email protected]

Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites
