Dell Inspiron N5010 R15 DSDT-Patcher error

[djzxz]

Hi all !

I just tried to autopach my Dell Inspiron N5010 R15 DSDT but I got this errors

09:05:54: Pack Dell - Inspiron N5010 15R selected.
09:05:55: Trying to download patch...
09:05:57: Patch file successfully downloaded.
09:05:57: Extracting system DSDT...
09:05:57: Decompiling DSDT...
09:05:58: Parsing DSL code...
09:05:59: Applying patches...
09:06:00: Saving the new DSL file...
09:06:01: Compiling and checking compiler errors...
09:06:01: First compile errors: 12
09:06:01: Fixing errors...
09:06:01: Second compile errors: 2
09:06:01: Compiling again...
09:06:01: Third compile errors: 2
09:06:01: Errors persisted all fixing tentatives, please post this log at Olarila.com forums
[[Line 5344 type Error message Min/Max/Length/Gran are all zero, but no resource tag ], [Line 5351 type Error message Min/Max/Length/Gran are all zero, but no resource tag ]]
09:06:01: Aborted, compilation failed

DSDT.rar

[MaLd0n]

dsdt.djzxz.zip

[zoomelliott]

Hi

Got an inspiron 15r n5010 with i7 740qm and HD5650 and as I try in lion 10.7.1 to patch the dsdt I have the same error as you.

[zoomelliott]

Hi

Got an inspiron 15r n5010 with i7 740qm and HD5650 and as I try in lion 10.7.1 to patch the dsdt I have the same error as you.



Should I use the dsdt above?

Including my dsdt from aida



dell acpi_dsdt.rar



thanks

[MaLd0n]

Should I use the dsdt above?

Including my dsdt from aida



LegacyATI4800Controller.kext.zip

dsdt.zoomelliott.zip

[zoomelliott]

Hi MaLd0n

Thanks for the DSDT file, but it's not working.

Vanilla 10.7 with Nullcpupm and ati boot i get

working HD full

no sound

no keyboard

no trackpad

No speedstep

with the DSDT and no nullcpum I got a kernel panic in applecpupm, just before it says :

HSF+ file: hd(0,2) Extra/DSDT.aml

ACPI table not found:SSDT.aml

FADT restart Fix applied!

FADT using costum DSDT

ACPI CPUs not found c-states not generated

ACPI CPUs not found p-states not generated

Thanks for your help

[MaLd0n]

no sound --> HDEF + LEGACY + APPLEHDA

no keyboard --> in DSDT? you need a kext

no trackpad --> in DSDT? you need a kext

No speedstep --> Chameleon RC5

post a Photo of KP

[zoomelliott]

Using Chameleon V2.0 RC5 r875

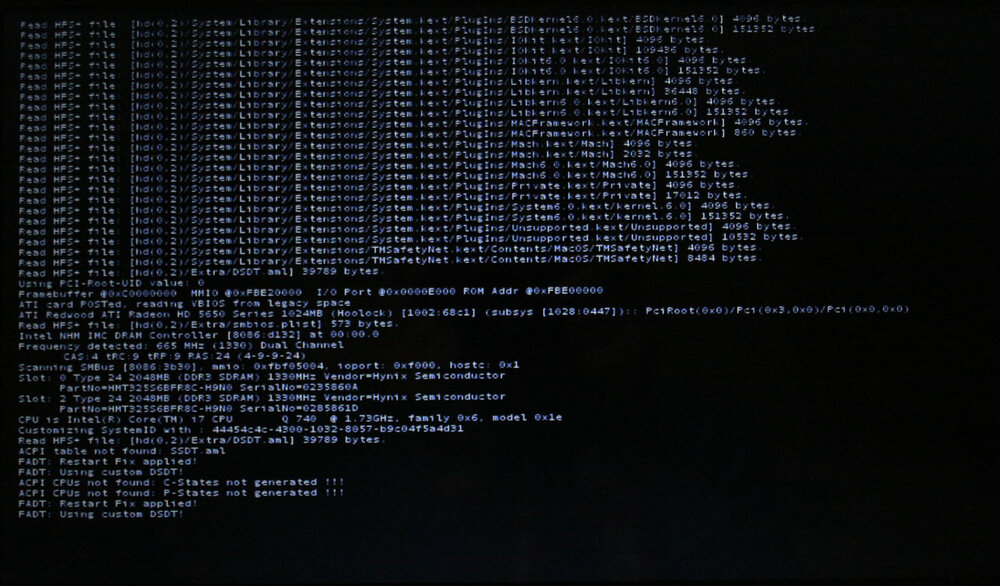

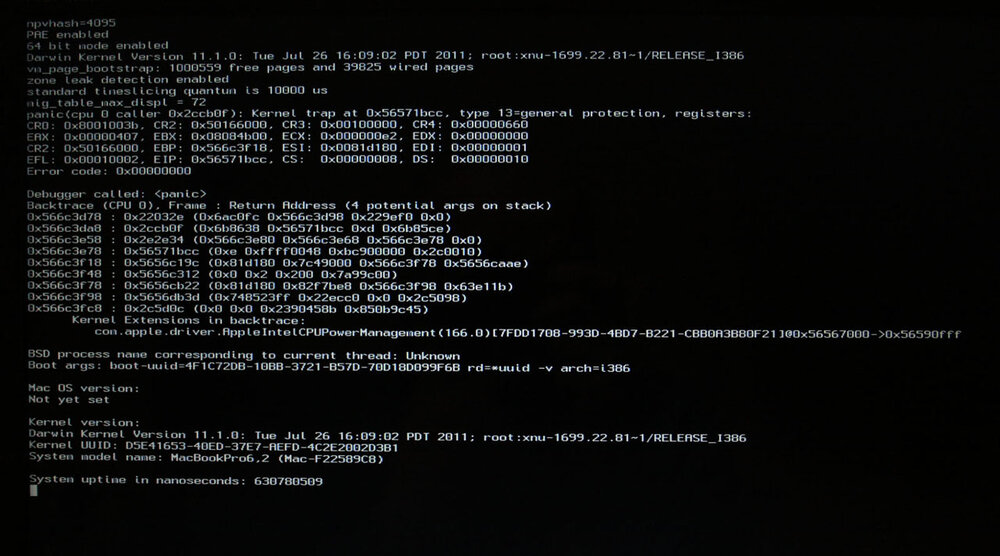

here are the pic of the KP and just before

Thanks

Elliott

[MaLd0n]

bug bios

you need...

http://www.insanelymac.com/forum/index.php?showtopic=258611

[zoomelliott]

Hi MaLd0n

Thank you, patched my AICPM and don't need to use nullcpupowermanagement,

But i still don't have the 740qm to speedstep, the frequency is always to the max 1.7 Mhz

Tried Macbookpro6,1 and Macbookpro8.1 but no difference.

Elliott

[zoomelliott]

Hi MaLd0n

Thank you, patched my AICPM and don't need to use nullcpupowermanagement,

But i still don't have the 740qm to speedstep, the frequency is always to the max 1.7 Mhz

Tried Macbookpro6,1 and Macbookpro8.1 but no difference.

Elliott



Hi Maldon

The laptop is running very hot, cpu at 75 degrees on idle.

Been investigating why speepstep is broken and the i7-740QM does not scale down, but could not fix it.

Is it possible the CPU definitions for power management are missing in the DSDT file?

Thanks Elliott.

[MaLd0n]

add in boot.plist

<key>GeneratePStates</key>
<string>Yes</string>
<key>GenerateCStates</key>
<string>Yes</string>

use smbios MacBookPro6,x

[zoomelliott]

add in boot.plist

<key>GeneratePStates</key>
<string>Yes</string>
<key>GenerateCStates</key>
<string>Yes</string>

use smbios MacBookPro6,x



Have the P and C states already in boot.plist.

I am using macbookpro6,1 (tried 6,2 and 8,1 - After installation of lion it was IMac11,1)

[zoomelliott]

Have the P and C states already in boot.plist.

I am using macbookpro6,1 (tried 6,2 and 8,1 - After installation of lion it was IMac11,1)



On boot I still have

HSF+ file: hd(0,2) Extra/DSDT.aml

ACPI table not found:SSDT.aml

FADT restart Fix applied!

FADT using costum DSDT

ACPI CPUs not found c-states not generated

ACPI CPUs not found p-states not generated

[zoomelliott]

maldon

Been looking closely to the DSDT you made in editor, there is no Scope-PR :



    Scope (_PR)
   {
       Processor (CPU0, 0x00, 0x00000410, 0x06)
       {
       }
       Processor (CPU1, 0x01, 0x00000410, 0x06)
       {
       }
       Processor (CPU2, 0x02, 0x00000410, 0x06)
       {
       }
       Processor (CPU3, 0x03, 0x00000410, 0x06)
       {
       }
       Processor (CPU4, 0x04, 0x00000410, 0x06)
       {
       }
       Processor (CPU5, 0x05, 0x00000410, 0x06)
       {
       }
       Processor (CPU6, 0x06, 0x00000410, 0x06)
       {
       }
       Processor (CPU7, 0x07, 0x00000410, 0x06)
       {
       }



Should I ad those?

[zoomelliott]

Extracting the tables I found the DSDT does not have all the scope for the processor, and two ssdt tables come along.

It's similar problem as the dell Vostro 3300.

Finaly change in my DSDT the scope_PR with



Scope (_PR)
   {
       Processor (P001, 0x01, 0x00000410, 0x06)
       {
       }
       Processor (P002, 0x02, 0x00000410, 0x06)
       {
       }
       Processor (P003, 0x03, 0x00000410, 0x06)
       {
       }
       Processor (P004, 0x04, 0x00000410, 0x06)
       {
       }
       Processor (P005, 0x05, 0x00000410, 0x06)
       {
       }
       Processor (P006, 0x06, 0x00000410, 0x06)
       {
       }
       Processor (P007, 0x07, 0x00000410, 0x06)
       {
       }
       Processor (P008, 0x08, 0x00000410, 0x06)
       {
       }
       Method (PNOT, 0, Serialized)
       {
           Notify (P001, 0x80)
           Sleep (0x64)
           Notify (P001, 0x81)
           Notify (P002, 0x80)
           Sleep (0x64)
           Notify (P002, 0x81)
           Notify (P003, 0x80)
           Sleep (0x64)
           Notify (P003, 0x81)
           Notify (P004, 0x80)
           Sleep (0x64)
           Notify (P004, 0x81)
           Notify (P005, 0x80)
           Sleep (0x64)
           Notify (P005, 0x81)
           Notify (P006, 0x80)
           Sleep (0x64)
           Notify (P006, 0x81)
           Notify (P007, 0x80)
           Sleep (0x64)
           Notify (P007, 0x81)
           Notify (P008, 0x80)
           Sleep (0x64)
           Notify (P008, 0x81)
       }
   }



Now with the mod I have at boot Pstate and cstates generated but still the cpu is on max.

ioreg -lw0 | grep CSTInfo returns nothing

ioreg -lw0 | grep PerformanceStateArray returns the array ok

I tried to create a ssdt.aml from the two but it makes no difference.

Not sure where to from now?

[ikarus228]

got same error, plz help

my dsdt from acpidump

dsdt_linux.aml.zip
