please help. I am desperate. error dsdt editor :(

Recommended Posts

Hi guys..

Great forum, hope you can help me.


I have wasted 3 weeks trying to get my hackintosh to work :oops::oops:


my system is


asus p8h67-m pro

i5 2500k

8gb ram

using the hd3000 intel graphics from the 2500k

sata hdd with windows set to ahci

external usb hdd with 2 partitions, 1 xmove lion installer, 1 lion partition (and the mac efi partition of course)


I am now trying to get it all working by using a custom dsdt but i have failed very badly so far :oops:


After i extract dsdt using the editor, i then apply the p8h67 m pro.txt patch from the pack page on Olarila. I then try to compile but when i click on fix errors, i always remain with 2 errors:


line 1591 Min/max/length/gran are all zero but no resource tag

1622 same error.


here is my extracted unedited dsdt that i extracted using editor


I installed a clean copy of lion and booted using rBoot from tonycrap, i only installed realtek network next to come here, and nothing else, no easy beast, no userdsdt, nothing yet. I am trying to install a userdsdt with a custom dsdt for my system because i can't get anything else to work!


Can anyone please help me? this is killing me :oops::oops:


thanks in advance

dsdt.aml.zip

Link to comment
Share on other sites

Please download DSDT Editor again, it was a bug, but it was fixed.


The fix is: length = max - min + 1 (just set length as 1, since max and min are 0).

-Donations-

PayPal HERE - Stripe HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3

PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Link to comment
Share on other sites

Thanks for the response! You were right, i managed to save dsdt now!


however now i have new problems :(


I'm not sure how to fix, my board has alc892 audio, and i think that is my new problem. I installed audioHDA rollback (only the rollback, i didn't install any other audio kext)

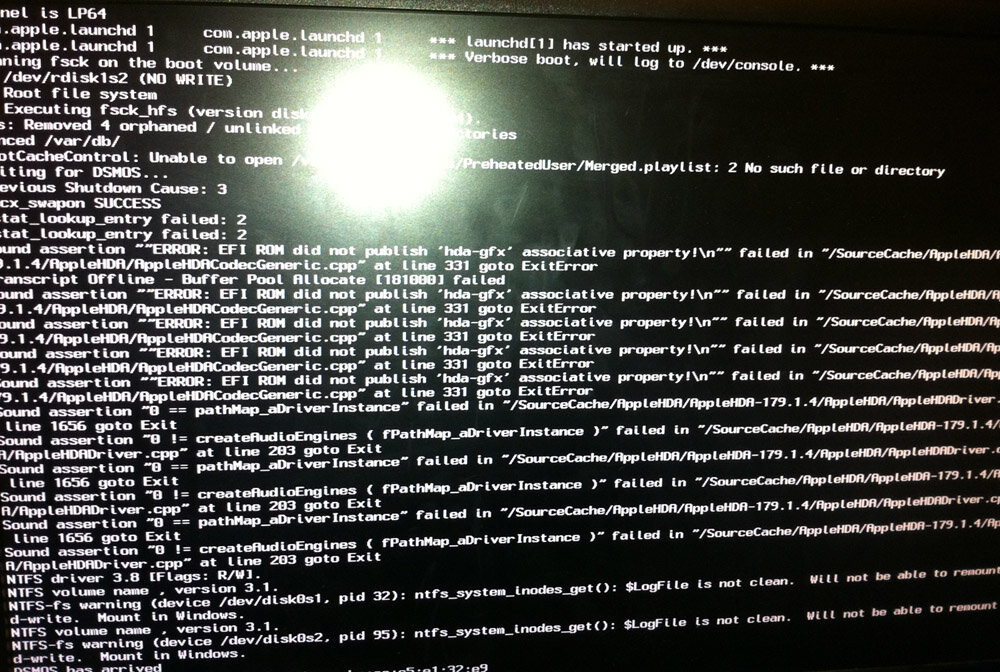

i have attached my latest kernel panic and the patched dsdt


thank you again for your help already, i hope someone out there can help me with this new problem. I feel like a zombie for 3 weeks!


DSDT.aml.zip

Link to comment
Share on other sites

Only AppleHDA rollback won't work, you need a LegacyHDA or a patched AppleHDA, and an HDEF patch in DSDT (or HDAEnabler).


You can also try VoodooHDA http://Olarila.com/forum/viewtopic.php?f=18&t=454


There's no KP in the attached image.

-Donations-

PayPal HERE - Stripe HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3

PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Link to comment
Share on other sites

thank you very much for your help, i understand all of this more now :D :D



I am going to try those fixes for the hda, but i also noticed something more in the -v.


i notice that there is errors about c-states and p-states, it says they were not loaded even though i have GenerateCStatesYesGeneratePStatesYes in the boot plist. You said there was no kernel panic in the image, but my pc stays frozen at that image for a long time so i think it is stuck, could it be the p-states problem that is stopping the pc?


thanks again

Link to comment
Share on other sites

Read this (power management) http://Olarila.com/forum/viewtopic.php?f=19&t=634


It may be stuck because of video kexts, try applying the "DualLink" patch in DSDT.

-Donations-

PayPal HERE - Stripe HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3

PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Link to comment
Share on other sites

Hi, thanks for again for the help :)


Unforunately it still doesn't want to work! I deleted the dsdt.aml in the extra folder, then loaded lion using rBoot, so i extracted the dsdt again, applied p8h67-mpro patch, from misc patches -> hdef, duallink, new hpet, lpc and from desktop patches -> dtgp, smbus, irqs, rtc.

I then compiled and fixed errors (0 errors), then saved it it as dsdt.aml into the extra folder. I also edited the info.plist from applehda and changed the layoutID to 12 (it was 8) as the hdef patch had 0xc value, i then repaired permissions and kext cache using kext wizard.

And now in -v i am getting still waiting for root device. Would you know what has happened? It even happens in -x -v mode too. I also always still get the "acpi cpus table not found p-states not generated" same for c-states


Before when i only applied p8h67-m pro patch i could get into lion using -x mode, so it must be something new i did!


Do i need to run repair permissions every time i delete the dsdt.aml file and put a new one in the extra folder?


Is this meant to be this difficult haha? :oops:


p.s i have already patched the cpupowermanagement kext with speedstepper also

Link to comment
Share on other sites

Update: I did a rollback HDA in multishit, and now it loads again without any flags and using a new custom edited dsdt using p8ph67 patch, duallink patch, irq, hdef and dtgp! woo hoo progress!


however, the system doesn't have any sound (still have those efi rom hda-gfx errors in -v) and the intel hd3000 graphics card isn't recognised (chipset model: unknown, no kext loaded)


I installed HDEF patch so i can't use voodoo hda, i have a feeling i have to patch the applehda.kext some how? i have alc8xx kext but when i checked the kext loaded with kext wizard, it is not loaded, only applehda and applehdacontroller are loaded. My applehda has a layoutid of 8, and i think it should be 12 (rollback mustve reverted it back to 8?), should i be playing around with that to patch it?


And I have installed macmini 5,1 smbios because apparently that is what you need for intel hd3000 to be recognized, but it isn't working =/ any ideas on that one?


thanks very much again my friend. this has been one of the most frustrating things i have ever done with a computer! :lol:

Link to comment
Share on other sites

If you apply the p8h67-m pro "pack" you don't need to apply the "misc" patches (except DualLink).


There's no need to update cache after replacing DSDT. I don't know what Kext Wizard does in Lion, but a "sudo touch /System/Library/Extensions" is enough to rebuild kernelcache.


I have no idea about patching AppleHDA, I use VoodooHDA.

-Donations-

PayPal HERE - Stripe HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3

PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Link to comment
Share on other sites
