MaLd0n

Video Guide - Hackintosh USB Port Mapping with Hackintool

Recommended Posts

  • Administrators

Donation with Paypal https://tinyurl.com/r7fchn9

Donation with Binance 0xdbe48ef6b158f1dd0035d7f49555c99e52f72714

Donation with Stripe https://tinyurl.com/2ssnydn6

Donation with BuyMeaCoffee https://tinyurl.com/bvsbpf6e

Donation with BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3

Donation with PicPay @danielnmaldonado

Donation with PiX @danielnmaldonado@gmail.com

Donation with Mercado Livre https://tinyurl.com/y9evkj5u



USB Remap after BigSur 11.3 check link bellow

https://www.olarila.com/topic/14220-video-guide-usb-port-mapping-guide-2021-bigsur-113-with-no-xhci-port-limit/



-Downloads-

-USB Inject All by RehabMan

USBInjectAll.zip

-Hackintool by HeadKaze

https://tinyurl.com/ymfp8fmw

-IORegistry Explorer by Apple

IORegistryExplorer.app.zip



-Usb Connectors in ACPI Specification / Pages 524 and 525-

https://tinyurl.com/4wtntkfm



-USB Patches Clover-

https://tinyurl.com/y25r5e5m




-Some observations before start-

-We need one USB 2 stick, one USB 3 stick and one USB-C stick

-Old mobos with EHCI devices, need rename EHC1/EUSB to EH01 and EHC2/ USBE to EH02

-USB ports with devices permanently attached (eg. M.2 Bluetooth card) should be set to “Internal”

 -HSxx ports connected to USB3 ports should be set to USB3 (Skylake+)

-Internal HUBs are typically connected to ports PR11 and PR21 and therefore should be set to “Internal”

-USB-C

  • TypeC:
    • If it uses the same HSxx/SSxx in both orientations, then it has an internal switch (use “TypeC+Sw”)
    • If it uses a different HSxx/SSxx in each orientation, then it has no switch (use “TypeC”)



-Tutorial-



  • Like 1
  • Thanks 3

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 - BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115 - USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9 - USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ - KASPA kaspa:qpxzufgfj8p6r0krg58yzvs0009h2mwqgvcawa0xc2pth7sgzpv56j4f6dtvk - PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

Good bro you are genius 😍

HackBook Pro :-HP DV6-6121 TX (Win 10 Pro + macOS 10.13.6 + OC )

Hac Pro:-GA-B365-D3H, Core i5 9440F AMD RX 580 8 GB (Win 10 Pro + macOS 10.15.7 + Big Sur Beta )

Hac Pro:-z97 sabertooth mark 2, Core i7- i7 4790k with GT 740 2GB and 32 GB Ram (OC+Catalina)

iHack:- Assus M2N68-AM-SE2,AMD Athlon+LE-1640,250 SSD ,4GB DD3 800MHZ Nvidia 9400GT (win 10 and 10.9.5+10.10.5)

iHack:-GA875M-D3H ,core-i5 3250,NVDIA 610-2GB 27"LED,8GB DDR3 1600mhz, (Only 10.10.5+10.11.6 with CLOVER)

iHack:-GA-78LMT-S2PT ,AMD Phenom II-X2 560,Radeon 6770 1 GB ,onboard Radeon HD 3000 not tested 4 GB DDR-3 1333 MHZ (10.11.6+Win 10 pro) Special thanks....  To Genius donovan6000 For Mode Bios (WiFi +BT Whitelist removed) & Amazing Hackintosh Guides and tutorial and much more visit this blog Hackintosh Mumbai

Link to comment
Share on other sites

  • Administrators

Just enjoy!

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 - BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115 - USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9 - USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ - KASPA kaspa:qpxzufgfj8p6r0krg58yzvs0009h2mwqgvcawa0xc2pth7sgzpv56j4f6dtvk - PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • Administrators

;)

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 - BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115 - USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9 - USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ - KASPA kaspa:qpxzufgfj8p6r0krg58yzvs0009h2mwqgvcawa0xc2pth7sgzpv56j4f6dtvk - PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • Administrators
22 minutes ago, HamadaElhag said:

How can apply this on clover

same procedure

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 - BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115 - USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9 - USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ - KASPA kaspa:qpxzufgfj8p6r0krg58yzvs0009h2mwqgvcawa0xc2pth7sgzpv56j4f6dtvk - PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

Hello Maldon

I'm trying to set the usb on Asus Z97-Pro wifi ac motherboard

as boot I use Clover added patches usb 10.15 and USBInjectAll.kext

Question: in the first photo I connected usb 2 and usb 3 of the case I have to set them as internal

spacer.png     spacer.png

Question: in the second photo as you see usb 2 and usb 3 I have to set them as internal or not

Bluetooth I have to set it as internal




If you can help me thanks

Edited by iFabio

I7 4770K - Z97-PRO Wifi (ac) - Intel HD4600

Link to comment
Share on other sites

  • Administrators
4 hours ago, iFabio said:

Question: in the second photo as you see usb 2 and usb 3 I have to set them as internal or not

Internal is bluetooth, cam, cooler usb cable.

in ur case u need kil devices EHC1 and EHC2, all work inside xhc device in ur case, just remap

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 - BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115 - USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9 - USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ - KASPA kaspa:qpxzufgfj8p6r0krg58yzvs0009h2mwqgvcawa0xc2pth7sgzpv56j4f6dtvk - PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • Administrators
1 hour ago, iFabio said:

if I understand correctly the usb I have to set them all as internal

only bluetooth, cam, cooler usb cable need set to internal

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 - BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115 - USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9 - USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ - KASPA kaspa:qpxzufgfj8p6r0krg58yzvs0009h2mwqgvcawa0xc2pth7sgzpv56j4f6dtvk - PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • Administrators
13 minutes ago, iFabio said:

what do you mean by cam, cooler usb cable

just check hackintool

ur usb port with cam set to internal, read observations in first post

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 - BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115 - USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9 - USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ - KASPA kaspa:qpxzufgfj8p6r0krg58yzvs0009h2mwqgvcawa0xc2pth7sgzpv56j4f6dtvk - PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

Hello Maldon

procedure: applied the two Clover patches in config.plist and added USBInjectAll.kext restarted

launched Hackintool usb app cleared everything and reloaded





I plugged USB 2 into all USB 2 ports on the motherboard and USB 3 into all USB 3 ports on the motherboard



now i should set the usb using hackintool app you can help me configure them

see photo:

XHC HS11 USB 2 case

XHC HS12 USB 2 case

XHC SS01 USB 3 case

XHC SS02 USB 3 case

I7 4770K - Z97-PRO Wifi (ac) - Intel HD4600

Link to comment
Share on other sites

  • Administrators
2 minutes ago, iFabio said:

Hello Maldon

first thing

u dont need eh01 and eh02, need kill it and start remap only xhc

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 - BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115 - USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9 - USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ - KASPA kaspa:qpxzufgfj8p6r0krg58yzvs0009h2mwqgvcawa0xc2pth7sgzpv56j4f6dtvk - PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

12 minutes ago, MaLd0n said:

first thing

u dont need eh01 and eh02, need kill it and start remap only xhc

can you tell me how to do it

i forgot how kext i just have to use USBInjectAll.kext i also have XHCI-unsupported.kext

Edited by iFabio

I7 4770K - Z97-PRO Wifi (ac) - Intel HD4600

Link to comment
Share on other sites

  • Administrators

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 - BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115 - USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9 - USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ - KASPA kaspa:qpxzufgfj8p6r0krg58yzvs0009h2mwqgvcawa0xc2pth7sgzpv56j4f6dtvk - PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • Administrators

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 - BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115 - USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9 - USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ - KASPA kaspa:qpxzufgfj8p6r0krg58yzvs0009h2mwqgvcawa0xc2pth7sgzpv56j4f6dtvk - PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

Hello Maldon

replaced config.plist and DSDT.aml

launched Hackintool usb app cleared everything and reloaded

I connected USB 2 to all USB 2 ports on motherboard and case and USB 3 to all USB 3 ports on motherboard and case




now i should set the usb using hackintool app you can help me configure them

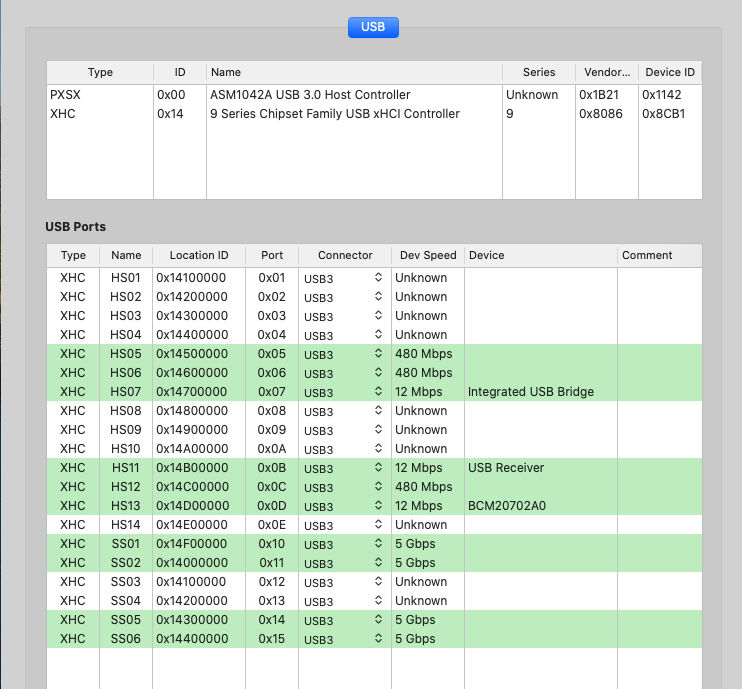

see photo:

XHC HS07 USB 2 case

XHC HS12 USB 2 case

XHC SS01 USB 3 case

XHC SS02 USB 3 case

XHC HS13 bluetooth BCM20702A0

XHC HS11 USB 2  internal motherboard USB 2 connector connected Corsair liquid cooling

I7 4770K - Z97-PRO Wifi (ac) - Intel HD4600

Link to comment
Share on other sites

  • Administrators

u need connect usb 2 and 3 devices in all usb ports

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 - BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115 - USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9 - USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ - KASPA kaspa:qpxzufgfj8p6r0krg58yzvs0009h2mwqgvcawa0xc2pth7sgzpv56j4f6dtvk - PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

  • Administrators

exclude unnused ports and generate usbports.kext

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 - BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115 - USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9 - USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ - KASPA kaspa:qpxzufgfj8p6r0krg58yzvs0009h2mwqgvcawa0xc2pth7sgzpv56j4f6dtvk - PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites
