[Guide] Hardware Encoder / Hardware Decoder / Video Processing / HEVC Support / Intel Quick Sync

[MaLd0n]

[ref]GoceNakov[/ref], dont use a clover acpi patches like usb fix, etc, is a strange patches

extract original tables with F4 in clover boot screen, files generated in clover/acpi/origin

[GoceNakov]

[ref]MaLd0n[/ref], Here they are. Should I change now those patches or should I wait for your magic?

Original Tables.zip

[MaLd0n]

[ref]GoceNakov[/ref], use only it with last clover version

CLOVER.zip

[GoceNakov]

[ref]MaLd0n[/ref], Omg man......I mean WTF??? The mac is booting now literally in 6 seconds........ I LOVE YOU. Going to donate now....just love you

[MaLd0n]

[ref]GoceNakov[/ref],

[umar263]

My specs:

core i7 8700K

intel UHD 630

Z370 mobo

Whenever I use the above given value, the system keeps re-starting.

But when I use IntelGFX = 0x12345678, it works and boots but shows only 7MB on the right side of intel UHD 630.

Please help, thanks in advance!

[MaLd0n]

[ref]umar263[/ref],

[umar263]

No tengo nada mencionado debajo de IGPU como se puede ver en la imagen de arriba.

[erroruser]

[ref]umar263[/ref], did you set up you igpu in the bios settings an inject intel in clover

not sure what z370 board as mine is asus an these are how i set in bios

https://drive.google.com/open?id=17VtleMnC77xL_W3Ohm9Bi-VXsmmSlpst

[umar263]

https://drive.google.com/open?id=17Vtle ... VXsmmSlpst



Mine is HP 8437 (Tampa 2). It's a HP Omen 880 desktop. the motherboard is founder's edition and hence there are no settings for the igpu in the bios.

[erroruser]

there should be gpu settings in the bios an thats where you have to adjust

1. enable integrated graphics in bios

2. PEG set as primary

3. Using Whatevergreen patching+ lilu

[umar263]

Thanks, I will check it once again.

I am using Whatevergreen patching+ lilu

I am not sure what do you mean by PEG = Primary?

[GoceNakov]

I am not sure what do you mean by PEG = Primary?



PCI Express Graphic

[GoceNakov]

[ref]MaLd0n[/ref], One question mate. Sense I see there is new Clover version available for download in my Clover Configurator, should I download and install the update (this goes for the future updates also) or I should just leave it as you send over the EFI folder to me?

[MaLd0n]

[ref]GoceNakov[/ref], yes, update

[br4ve]

Thank you! Coffee Lake settings worked for my 9900k on z370 gaming 7 w/ gtx 1070!

[MaLd0n]

[ref]br4ve[/ref],

[geirisk8]

Hey guys, I'm new here but I've been on tonycrapx86 for a while and built a few hackintoshes, both for me and for others.

So right now I have a system that I use for photo and video editing. It's my full time job so I rely on the computer. It's working great but I'd like to see if it can be tuned further?

I've got a Gigabyte Aorus Z370 Gaming K3 motherboard with a 9900k (overclock to 4.6GHz) and a Gigabyte Aorus RX580 8GB graphics and I use both the iGPU and the RX580 together for stuff like Final Cut.

I've uploaded my clover folder along with an IOREG file.

So far the computer runs fine but I do have some issues with HEVC and I've had some crashes when I'm doing HEVC related stuff. If someone here could check my files and improve, it would be greatly appreciated and I'll happily donate for the help.

Cheers!

CLOVER.zip

Hackintosh IOREG.zip

[MaLd0n]

I've got a Gigabyte Aorus Z370 Gaming K3 motherboard with a 9900k (overclock to 4.6GHz) and a Gigabyte Aorus RX580 8GB graphics and I use both the iGPU and the RX580 together for stuff like Final Cut.

use only it with last Clover version

CLOVER.zip

https://sourceforge.net/projects/cloverefiboot/files/Installer/Clover_v2.4k_r4871.zip/download

[Henrryh]

1- We need a Lilu.kext and WhateverGreen.kext

2- Correct configuration in config.plist

3- Enable IntelHDGraphics

-IvyBridge

IntelGFX 0x01628086

Ig-platform-id 0x01620007

Check InjectIntel

shikigva=60

-Haswell

IntelGFX 0x04128086

Ig-platform-id 0x04120004

Check InjectIntel

shikigva=60

-Skylake

ig-platform-id 0x19120001

Check InjectIntel

shikigva=60

-Kabylake and Coffeelake

IntelGFX 0x59128086

ig-platform-id 0x59120003

Check InjectIntel

shikigva=60


MaLd0n 2018-10-04 às 21.30.03.png

MaLd0n 2018-10-04 às 21.48.33.png

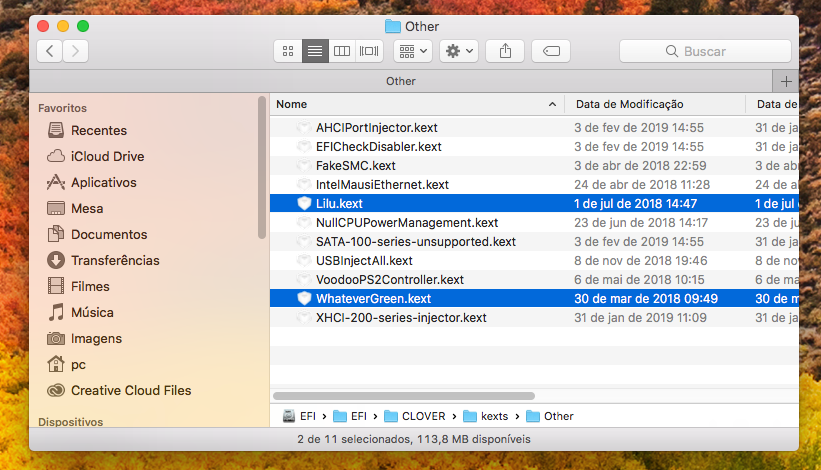

Maldon, os arquivos Lilu.kext e WhateverGreen já estão na pasta do CLover.

A onde eu coloco essas configurações para o 9900k?

-Kabylake and Coffeelake

IntelGFX 0x59128086

ig-platform-id 0x59120003

Check InjectIntel

shikigva=60

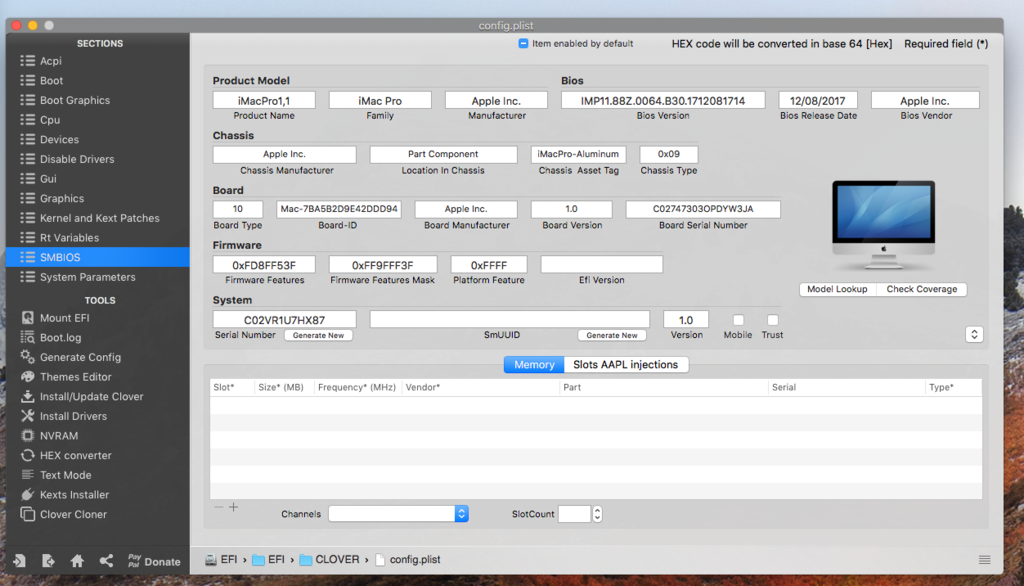

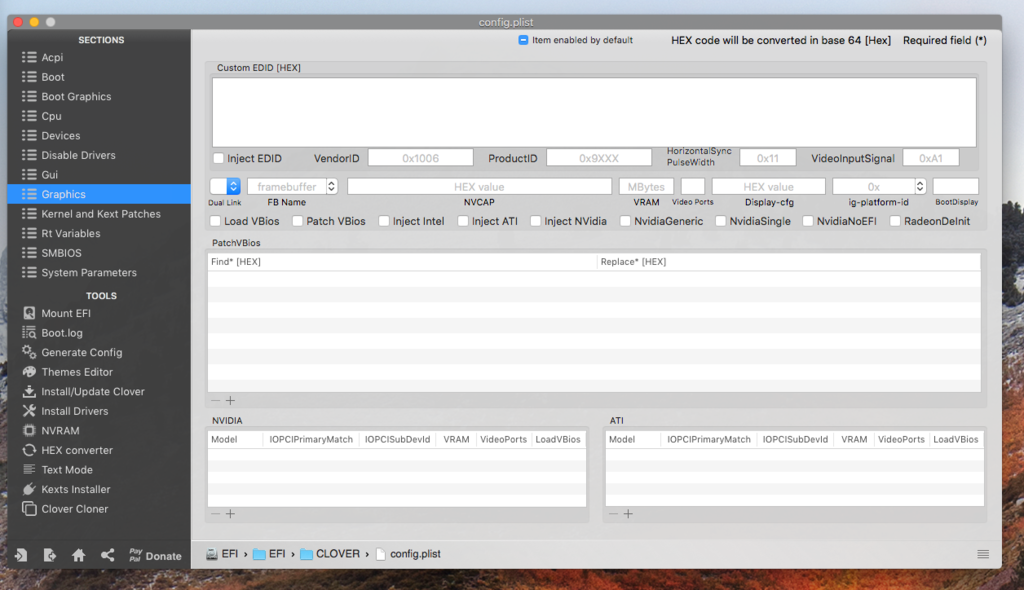

Vou enviar algumas fotos.

[MaLd0n]

Maldon, os arquivos Lilu.kext e WhateverGreen já estão na pasta do CLover.

A onde eu coloco essas configurações para o 9900k?

-Kabylake and Coffeelake

IntelGFX 0x59128086

ig-platform-id 0x59120003

Check InjectIntel

shikigva=60

intelgfx na aba devices

ig-platform-id na aba graphics

shikigva=60 na aba boot

[Henrryh]

intelgfx na aba devices

ig-platform-id na aba graphics

shikigva=60 na aba boot

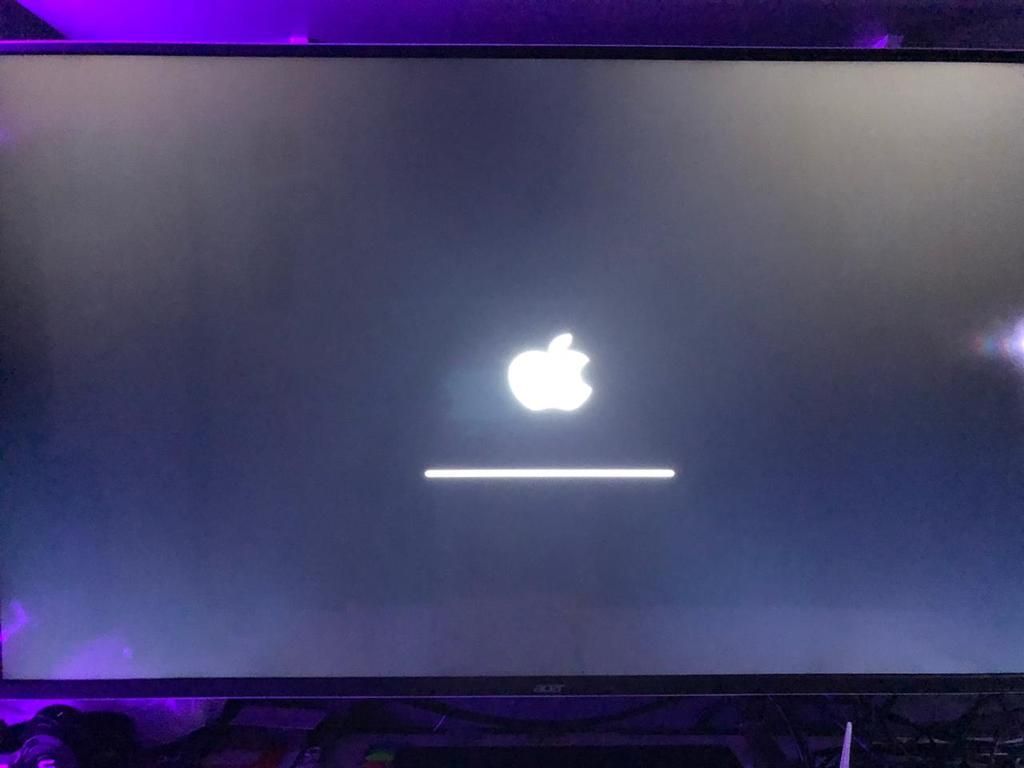

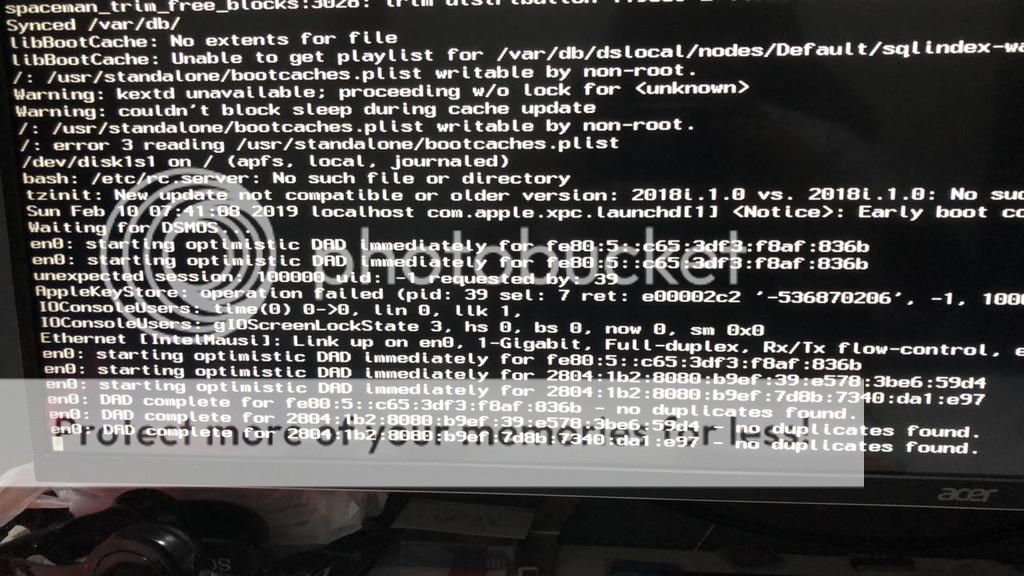

Maldon, me salva gora, tentei fazer as configurações para aparecer a Intel 630 e agora não da Boot mais.

Ja tentei pelo Pendrive tb, não passa.

[MaLd0n]

Maldon, me salva gora, tentei fazer as configurações para aparecer a Intel 630 e agora não da Boot mais.

Ja tentei pelo Pendrive tb, não passa.

usa o InjectIntel tb

[Henrryh]

usa o InjectIntel tb



Eu vou formatar com a imagem nova aqui do site, vou fazer do ZERO.

Eu preciso muito usar o IGPU do 9900k, tenho uma produtora de video.

Vou tentar novamente.

[GoceNakov]

[ref]MaLd0n[/ref], quick question please. Is there any way I can see my Intel HD630 in the activity monitor (please see attached picture) after you doing your magic. I mean GPU is working nice inside FCPX but I was wondering if there is any way to see her activity.

https://imgur.com/a/Yw9Ohul
