Mirone Posted September 1, 2018 Share Posted September 1, 2018 Internal mic is detected with v2 try this:AppleHDA_ALC255_v5.zip Quote Link to comment Share on other sites More sharing options...
onemanosx Posted September 2, 2018 Author Share Posted September 2, 2018 AppleHDA_ALC255_v5.zip Headphones and internal speakers works incredibly well and insanely loud with no distortions (love it!). Line in is detected but not working. Internal mic not detected. Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
Mirone Posted September 2, 2018 Share Posted September 2, 2018 Line in is detected but not working Did you test this with an iPhone headset? ComboJack should be working. Quote Link to comment Share on other sites More sharing options...
onemanosx Posted September 2, 2018 Author Share Posted September 2, 2018 Did you test this with an iPhone headset? ComboJack should be working. I double checked my headset with Windows and its working. I did a test by recording through adobe premiere as well as monitoring the signal bar in audio preferences. I figured if internal mic is not working at least you can get the line in to work since you said there no node for microphone Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
Mirone Posted September 2, 2018 Share Posted September 2, 2018 I double checked my headset with Windows and its working in macOS not Working? Quote Link to comment Share on other sites More sharing options...
onemanosx Posted September 2, 2018 Author Share Posted September 2, 2018 in macOS not Working? Unfortunately, not working in MacOS Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
Mirone Posted September 2, 2018 Share Posted September 2, 2018 Try this:AppleHDA_ALC255_v6.zip If I do not work I have no idea, I'm sorry. Quote Link to comment Share on other sites More sharing options...
onemanosx Posted September 3, 2018 Author Share Posted September 3, 2018 If I do not work I have no idea, I'm sorry. Dont be sorry. I appreciate your efforts. Salute! Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...

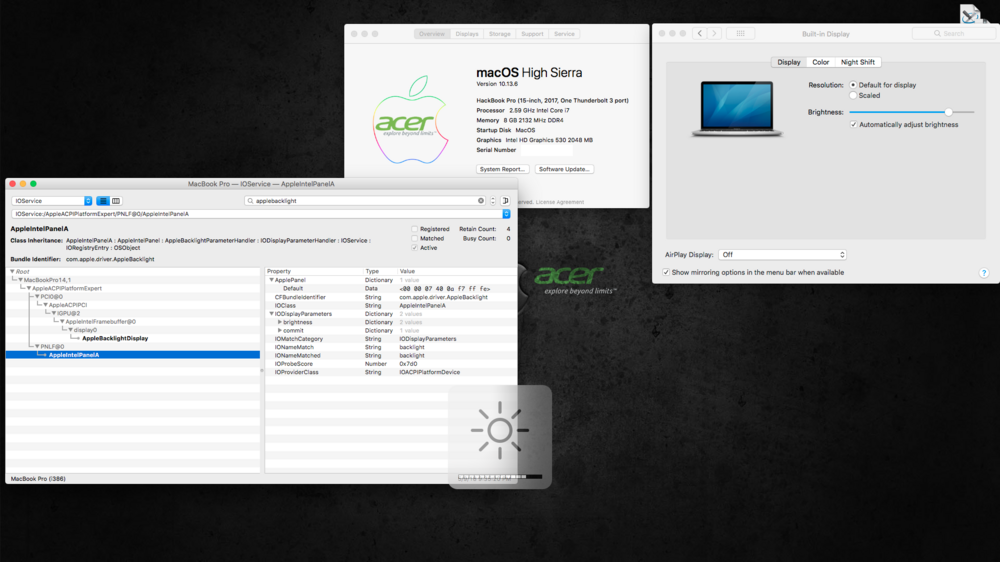

onemanosx Posted September 5, 2018 Author Share Posted September 5, 2018 Brightness slider works without kext and clover hot-patch I didnt expect this at all! I was actually troubleshooting why the back light slider broke on Mojave beta and stumbled upon this finding! So here you go! Native support for backlight slider without applebacklightinjector.kext and related kext to patch. However, keep the SSDT-PNLF.aml or you can also delete the ssdt and just check AddPNLF in Clover. Both method works Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
Naveed Ahmad Posted September 29, 2018 Share Posted September 29, 2018 Hey onemmanosx Use that kext microphone and audio fully worked I tested with my 7TH GEN Acer Aspire ES1-572 I upload photo and kext for you try it delete all audio kext and paste this kext to Clover/Kext/Other VoodooHDA.kext.zip Quote Mobile SkyLake DELL LATiTUDE E-7470 14" 6th Gen Display Touch Screen Working on Mojave-10.14.3 Cpu Intel i5-6300U GPU QHD-540/520 Res FHD 2560 x 1440 Ram 12GB DDR4 Hynix 256 GiB Nvme SSD Clover UEFI 10.14.3 Link to comment Share on other sites More sharing options...
Naveed Ahmad Posted September 30, 2018 Share Posted September 30, 2018 onemanosx help me in brightness Real up down keys. I read your prefer website insanelymac and GitHub, but I do not understand how to do this? 14. Custom Brightness Hotkey Debugging Method : https://github.com/RehabMan/OS-X-ACPI-Debug https://www.insanelymac.com/forum/topic ... s-in-dsdt/ Applicable DSDT patch to VN7-592G into method label _Q1D replace_content begin // Brightness Down\n Notify(\_SB.PCI0.LPCB.KBD0, 0x0205)\n Notify(\_SB.PCI0.LPCB.KBD0, 0x0285)\n end; into method label _Q1C replace_content begin // Brightness Up\n Notify(\_SB.PCI0.LPCB.KBD0, 0x0206)\n Notify(\_SB.PCI0.LPCB.KBD0, 0x0286)\n end; Quote Mobile SkyLake DELL LATiTUDE E-7470 14" 6th Gen Display Touch Screen Working on Mojave-10.14.3 Cpu Intel i5-6300U GPU QHD-540/520 Res FHD 2560 x 1440 Ram 12GB DDR4 Hynix 256 GiB Nvme SSD Clover UEFI 10.14.3 Link to comment Share on other sites More sharing options...
onemanosx Posted September 30, 2018 Author Share Posted September 30, 2018 help me in brightness Real up down keys Option1: First, need to know how your native brightness keys is handled. You can follow simple instruction here under "Brightness keys" https://www.tonycrapx86.com/threads/guide-patching-dsdt-ssdt-for-laptop-backlight-control.152659/ then patch DSDT according to your finding. Option 2: Simply change the the brightness command keys from macOS Keyboard shortcut Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
robustarrk Posted October 4, 2018 Share Posted October 4, 2018 it is ok to not use gpt format? and use MBR (UEFI) for both Windows and MacOS? Quote Link to comment Share on other sites More sharing options...
onemanosx Posted October 4, 2018 Author Share Posted October 4, 2018 it is ok to not use gpt format? Always GPT for macOS Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
onemanosx Posted November 9, 2018 Author Share Posted November 9, 2018 Mojave Update I wasn't planning to upgrade this laptop to Mojave. Well, not anytime soon anyway. But, installing Mojave on an external HD is close enough to see if anything will break due to the upgrade. Looks like its pretty much the same except for update of kext for I2c trackpad. Beyond that, airdrop does not seem to work well. But, I did not spend too much time troubleshooting anyway. Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
Naveed Ahmad Posted November 14, 2018 Share Posted November 14, 2018 Update: Mojave Direct Update (09/11/2018) https://Olarila.com/forum/viewtopic.php?p=65919#p65919 Update: Brightness slider works without AppleBackLightInjector.kext & backlight slider hot-patch (05/09/2018) http://Olarila.com/forum/viewtopic.php?p=60334#p60334 Update: DSDT Fix to enable supported Wifi 26/08/2018 (See Post 5: https://Olarila.com/forum/viewtopic.php?p=59554#p59554 ) Update: DSDT edit to enable usb ports without injector kext 26/08/2018 (See post 4: https://Olarila.com/forum/viewtopic.php?p=59543#p59543) Update: Added Clover Arbitrary for Thunderbolt 3 hot plug feature. Device still need to be switched on before system boot. 19/08/2018 Update: Was surfing Acer's website for Bios update details and found I dont need the framebuffer patch for Skylake 13/8/2018 Update: USB type C works with Display output and USB 3.1. (No means to test thunderbolt capabilities though 12/8/2018) Update: Custom brightness hotkeys 11/08/2018 This is a quick rundown of how I set up my laptop for Sierra, High Sierra and Mojave Beta 10. In no way, I am an expert in hackintosh but one thing I have learnt when hackintoshing is that reading (like a lot!), google (yes!) and plenty of patience are essential. Its a daunting task LOL Special thanks to Sampath Kumar and Maldon! System Specs CPU: Intel Core i7-6700HQ 2.6Ghz (Skylake) GPU: GeForce GTX 960M (Optimus disabled by DSDT patch or use Olarila config02.plist in USB image), Intel HD 530 RAM: 8Gb DDR4 2133Mhz Wifi: Qualcomm Atheros QCA4xxx (replaced with Mac OS supported BCM94352Z m.2 type) Audio chipset: Realtek ALC255 (Layout ID=27) Card Reader: Realtek (Not Supported) System Drive: M.2 NVME 500GB (Natively Supported in High Sierra) Secondary Drive: SATA Toshiba 1TB How-to’s 1. WiFi and Bluetooth (BCM94352Z) – place kexts in Clover>kexts>other (Reference Guide - https://github.com/toleda/wireless_broadcom) - FakePCIID.kext - BrcmFirmwareData.kext - BrcmPatchRam2.kext - AirportBrcmFixup.kext 2. Full QE/CI Graphics (Reference Guide: https://github.com/RehabMan/OS-X-Clover-Laptop-Config) - HD530, HDMI and usb-c port display - Clover settings a. inject intel b. ig-platform id: 0x191b0000 c. framebuffer patch (Rehabman) Clover kext to patch Kext: com.apple.driver.AppleIntelSKLGraphicsFramebuffer Find Hex: 00002002 00005001 Replace Hex: 00003001 00009000 Comment: 0x19160000/etc, 32MB BIOS, 19MB framebuffer 9MB cursor bytes (credit RehabMan) [Not required Update 13/08/2018] DL LInk: https://github.com/acidanthera/WhateverGreen/releases https://github.com/acidanthera/Lilu/releases d. whatevergreen.kext (place kexts in Clover>kexts>other) e. Lilu.kext (place kexts in Clover>kexts>other) Screen Shot 2018-09-20 at 11.46.28 PM.png 3. Realtek ALC255 Audio (place kexts in Clover>kexts>other) Reference Guide: https://github.com/acidanthera/AppleALC - AppleALC.kext - Lilu.kext - Layout ID= 27 (microphone not working) 4. HDMI audio - Full Guide https://github.com/toleda/audio_CloverHDMI 5. Ethernet (place kexts in Clover>kexts>other) Reference link: https://github.com/RehabMan/OS-X-Realtek-Network - RealtekRTL8111.kext 6. USB ports (place kexts in Clover>kexts>other) Reference Guide: https://github.com/RehabMan/OS-X-USB-Inject-All USB Port limits info: https://Olarila.com/forum/viewtopic.php?f=62&t=6539 - USBInjectAll.kext - Optional: custom ssdt for USBInjectall kext - High Sierra USB kext to patch Name: com.apple.driver.usb.AppleUSBXHCI Find Hex: 837D880F 0F83A704 0000 Replace Hex: 837D880F 90909090 9090 Comment: USB 10.13.6 by PMHeart 7. Battery info (place kexts in Clover>kexts>other) Reference Link: https://github.com/RehabMan/OS-X-ACPI-Battery-Driver - ACPIBatteryManager.kext 8. Keyboard (place kexts in Clover>kexts>other) Reference Link: https://bitbucket.org/RehabMan/os-x-voodoo-ps2-controller/downloads/ - VoodooPS2controller.kext 9. Trackpad & Gestures (place kexts in Clover>kexts>other) Full Guide: https://github.com/alexandred/VoodooI2C - voodooI2C.kext - voodooI2CHID.kext - DSDT patch (refer to attached link above) 10. Integrated webcam works (Native) 11. Native Power Management - Clover> ACPI> SSDT> Generate options> plugin type =1 12. Clover DSDT rename patches - GFX0>IGPU - SAT0>SATA - EC0>EC - HDAS>HDEF 13. Brightness Slider Reference Guide: https://www.tonycrapx86.com/threads/guide-laptop-backlight-control-using-applebacklightinjector-kext.218222/ - AppleBackLightInjector.kext + SSDT-PNLF.aml + Clover kext to patch 14. Custom Brightness Hotkey Debugging Method : https://github.com/RehabMan/OS-X-ACPI-Debug https://www.insanelymac.com/forum/topic/305030-guide-how-to-fix-brightness-hotkeys-in-dsdt/ Applicable DSDT patch to VN7-592G into method label _Q1D replace_content begin // Brightness Down\n Notify(\_SB.PCI0.LPCB.KBD0, 0x0205)\n Notify(\_SB.PCI0.LPCB.KBD0, 0x0285)\n end; into method label _Q1C replace_content begin // Brightness Up\n Notify(\_SB.PCI0.LPCB.KBD0, 0x0206)\n Notify(\_SB.PCI0.LPCB.KBD0, 0x0286)\n end; I noticed this laptop has problem with windows installation in "auto". That is, I faced problematic "unable to install ...." no matter what file system I created. Then I figured out a way to manually create GPT partition as described in the guide below. How to Dual-boot (Bios is set to UEFI mode) A. 1. Make UEFI Windows bootable disk using Rufus 2.7 or later(https://rufus.akeo.ie/) 2. Boot into laptop with USB stick 3. When at Choose Disk to install page, Press shift+F10 to enter command mode 4. type diskpart 5. type list disk 6. select disk x (x is primary hd or ssd) 7. type convert gpt 8. type create partition efi size=200 9. type format fs=fat32 quick 10. type create partition primary size=xxxxxx (in MB) 11. type format fs=ntfs quick 12. type exit 13. continue to install till end B. Go to Windows Disk utility and create a partition (Fat 32 file system) for MacOS C. Shutdown windows once partition is created D. Boot Olarila USB stick to proceed with MacOS installation. Choose Olarila image here : https://Olarila.com/forum/viewforum.php?f=51&sid=e1b2225ef4a684ea1aedaf4e3d633a9b Hi OneManOsXmy BCM94352Z M.2 WiFi is Successful working but not showing in PCI List Like This ? Quote Mobile SkyLake DELL LATiTUDE E-7470 14" 6th Gen Display Touch Screen Working on Mojave-10.14.3 Cpu Intel i5-6300U GPU QHD-540/520 Res FHD 2560 x 1440 Ram 12GB DDR4 Hynix 256 GiB Nvme SSD Clover UEFI 10.14.3 Link to comment Share on other sites More sharing options...
onemanosx Posted November 14, 2018 Author Share Posted November 14, 2018 my BCM94352Z M.2 WiFi is Successful working but not showing in PCI List Like This ? 1. Extract the file here SSDT-ARPT.aml.zip 2. Open ssdt file with MacIASL 3. Change RP07 to RP0x (Use Ioreg to find out the location of your wifi card) 4. Save ssdt inside Clover/ACPI/Patched. Reboot. (if you are using sorted order, make sure to add the file to the table) Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
Naveed Ahmad Posted November 15, 2018 Share Posted November 15, 2018 1. Extract the file here SSDT-ARPT.aml.zip 2. Open ssdt file with MacIASL 3. Change RP07 to RP0x (Use Ioreg to find out the location of your wifi card) 4. Save ssdt inside Clover/ACPI/Patched. Reboot. (if you are using sorted order, make sure to add the file to the table) PLZ share your EFI folder for assistance Quote Mobile SkyLake DELL LATiTUDE E-7470 14" 6th Gen Display Touch Screen Working on Mojave-10.14.3 Cpu Intel i5-6300U GPU QHD-540/520 Res FHD 2560 x 1440 Ram 12GB DDR4 Hynix 256 GiB Nvme SSD Clover UEFI 10.14.3 Link to comment Share on other sites More sharing options...
onemanosx Posted November 15, 2018 Author Share Posted November 15, 2018 Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
Naveed Ahmad Posted November 15, 2018 Share Posted November 15, 2018 PLZ share your EFI folder for assistance [/quote OneManOsX PLZ share your EFI folder for assistance I do not understand Quote Mobile SkyLake DELL LATiTUDE E-7470 14" 6th Gen Display Touch Screen Working on Mojave-10.14.3 Cpu Intel i5-6300U GPU QHD-540/520 Res FHD 2560 x 1440 Ram 12GB DDR4 Hynix 256 GiB Nvme SSD Clover UEFI 10.14.3 Link to comment Share on other sites More sharing options...
onemanosx Posted November 15, 2018 Author Share Posted November 15, 2018 use assistance I do not understand Which part of the guide you do not understand? Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
Naveed Ahmad Posted November 15, 2018 Share Posted November 15, 2018 I send u my EFI folder and ioreg check it Archive.zip Quote Mobile SkyLake DELL LATiTUDE E-7470 14" 6th Gen Display Touch Screen Working on Mojave-10.14.3 Cpu Intel i5-6300U GPU QHD-540/520 Res FHD 2560 x 1440 Ram 12GB DDR4 Hynix 256 GiB Nvme SSD Clover UEFI 10.14.3 Link to comment Share on other sites More sharing options...
onemanosx Posted November 15, 2018 Author Share Posted November 15, 2018 [ref]Naveed Ahmad[/ref], try this.Naveed.zip Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
Naveed Ahmad Posted November 15, 2018 Share Posted November 15, 2018 [ref]Naveed Ahmad[/ref], try this.Naveed.zip Great Work OneManOsX thanks.Bluetooth not working Quote Mobile SkyLake DELL LATiTUDE E-7470 14" 6th Gen Display Touch Screen Working on Mojave-10.14.3 Cpu Intel i5-6300U GPU QHD-540/520 Res FHD 2560 x 1440 Ram 12GB DDR4 Hynix 256 GiB Nvme SSD Clover UEFI 10.14.3 Link to comment Share on other sites More sharing options...
onemanosx Posted November 15, 2018 Author Share Posted November 15, 2018 Bluetooth not working Bluetooth use correct kexts and make sure USB for bluetooth is working. Read my guide and link Quote Donate Gitter Chat Acer Aspire V15 Nitro- Black Edition VN7-592G/HM170 Chipset Intel i7-6700HQ, 8GB RAM (UEFI Clover Catalina) MSI B360 Gaming Arctic Intel i5-8600 16GB RAM Asus Radeon RX580 8GB (UEFI Clover Catalina) Link to comment Share on other sites More sharing options...
