asus p5q deluxe

[zeg66]

I would like to install Mavericks on the following system:

asus p5q deluxe (P45 - ICH10R), cpu: xeon L5420, ram: 8gb,

LAN: 2xMarvell 88E8056, Audio: ADI AD2000B, Firewire: LSI L-FW3227,

graphics: Sapphire Radeon HD6450 1GB ddr3:

http://www.sapphiretech.com/productdetial.asp?Pid=BE96DA09-C0BD-400E-B9DE-30891F1411BB&lang=eng

This is a bios/mbr motherboard. How should I format the usb/hdd, what options should I choose in Clover 4630?

Could you supply a config.plist file to start or an EFI folder?

[MaLd0n]

https://Olarila.com/forum/viewtopic.php?f=50&t=6256

if boot legacy fail, use old clover folder, new version some don't boot legacy

[zeg66]

Thank you Mald0n, prepared usb with Olarila image and win32diskimager.

System starts but after "DSMOS has arrived" screen goes black and reboots. Tried both vga & hdmi connections. Could it be a framebuffer problem or some bios setting?

[MaLd0n]

THE problem is Sapphire Radeon HD6450

[zeg66]

Perhaps but I borrowed an nVidia 9800GT from a friend and it still has the same problem. Black screen, monitor off.

[MaLd0n]

use 9800GT and InjectNvidia

press O in clover boot screen, go to Graphics and InjectNvidia

[zeg66]

yes that works (with the 9800GT) but only for vga output. not for hdmi.

what can I do about the HD6450? it works ok with windows and ubuntu. I used GPU-Z to download its rom file. maybe try this with clover configurator?

https://www.insanelymac.com/forum/topic/303186-how-to-modification-of-amd-fb-clover-injection/

[MaLd0n]

u can try

[zeg66]

I tried patching the Lotus framebuffer but I get this message:

[agpm controller] unknown platform.

I also have the DSDT.aml and SSDT-0.aml, obtained through Clover. Do you think it's worth anything taking a look at them?

[MaLd0n]

I tried patching the Lotus framebuffer but I get this message:

[agpm controller] unknown platform.

I also have the DSDT.aml and SSDT-0.aml, obtained through Clover. Do you think it's worth anything taking a look at them?

use DVI instead HDMI, bro, u have a great problems with HDMI

[zeg66]

ok Mald0n, thank you for the advice. I need to borrow a DVI monitor and cable now...

could you please tell me how to format a usb flashdrive and create a mave installer (with clover) manually for MBR (bios) booting?

[MaLd0n]

3 post here

https://Olarila.com/forum/viewtopic.php?t=1131&start=2760

[zeg66]

Are there any bios settings I should pay attention to? Trying to boot with default settings. Is that ok?

[MaLd0n]

Are there any bios settings I should pay attention to? Trying to boot with default settings. Is that ok?

only in sata mode, use AHCI and try, change bios only if need, but ahci is mandatory

[zeg66]

ok I enabled AHCI. Removed the HD6450 and installed an nVidia GT710. This gpu has 3 ports: vga, hdmi, dvi-d and I tried them all.

The installer starts with npci=3000 (I get a KP with 2000), finds the Firewire too, but it just hangs in the attached picture





What options should I select in Clover->Options->Graphics?



[MaLd0n]

U can try firt with InjectNvidia, if don't work use Nv_Disable=1 for install

[zeg66]

Yes I was able to reach the installer with "nv_disable=1" but now I get this:



[MaLd0n]

no idea

[zeg66]

Used an older version of Clover (3333) and made a little progress. Could you please tell me how to enable the Marvell Yukon 88E8056/88E8001 Ethernet on Mavericks and/or Mountain Lion?

[MaLd0n]

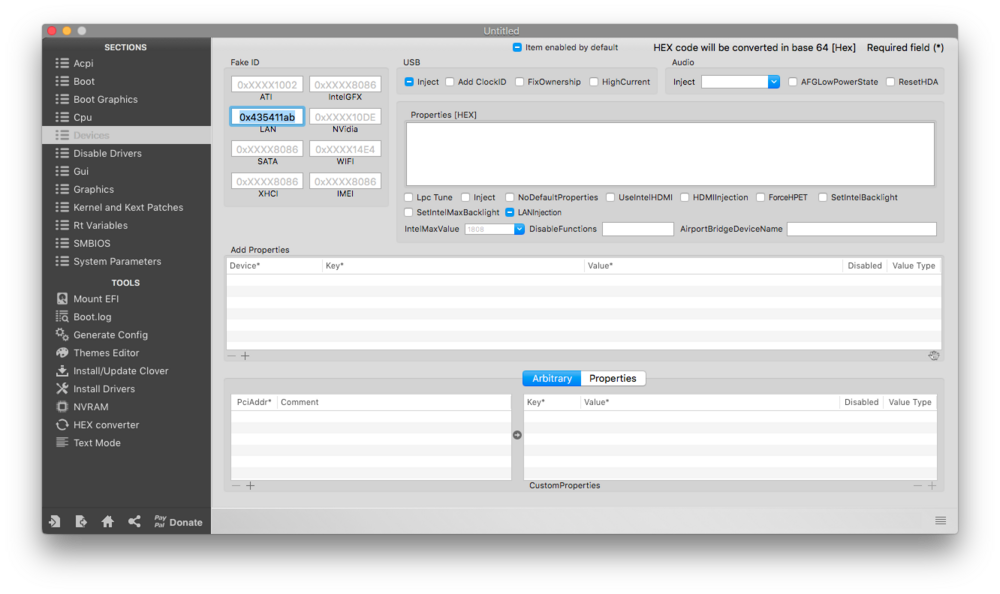

FakeID=0x435411ab don't work?

[zeg66]

Sorry that didn't work. Found this kext:

https://www.insanelymac.com/forum/files/file/241-marvell-88e8056-for-mavericks-1093/

and installed it with Kext Utility. Yes the Ethernet appears to work (the port LEDs are on) but now the nVidia installation is broken. I can only boot with nv_disable=1 flag. How can I repair the nVidia installation?

Could this be a problem with AppleKextExcludeList.kext? Should I try a newer Clover version? Using 3333 now.

[zeg66]

Could you please tell me how to activate the ALC883 (six connectors) onboard audio in Mavericks 10.9.5?

[MaLd0n]

u try a applehda patcher?

[zeg66]

thank you for your reply, Mald0n. I will try version 1.8 (version 1.9 does not support Mavericks) and report back. Which ioreg version should I use with 10.9.5?

[MaLd0n]

thank you for your reply, Mald0n. I will try version 1.8 (version 1.9 does not support Mavericks) and report back. Which ioreg version should I use with 10.9.5?

https://Olarila.com/files/Utils/IORegistryExplorer.zip
