Hackintosh Guide - Sierra / High Sierra / Mojave / Catalina on Sky/Kaby/CoffeeLake Notebooks with Clover Bootloader

[leminhhieuctvn]

leminhhieuctvn,

DSDT.aml.zip

(34.77 KiB) Downloaded 2 times

Thank you sir,

Now I have problems:

_Audio not detected -> I added AppleALC to EFI/CLOVER/kexts/Other -> Set all available inject Audio in config.plist one by one (0x100302, layout 1, 2, 3, (4 for laptop), 5, 7, 12, 28, 31, 92, 98, 99) => Still no sound although audio detected

_HDMI not working

Sorry for being noob. Here is my EFI foler : https://drive.google.com/file/d/1Jsyxo60s11Jt4UbkTi3ULBA4Rx_6-EhJ/view?usp=sharing

My Laptop is MSI GL63 8RC i7-8750H + 16GB RAM + GTX 1050 4GB + 250GB SSD Samsung 970 EVO NVMe + 1TB HDD

[MaLd0n]

[ref]leminhhieuctvn[/ref], run app again and post new dump with new file

[leminhhieuctvn]

leminhhieuctvn, run app again and post new dump with new file

Here is new dump :3 I use layout 16 as 1.3.4 added ALC892 layout-id 16 for MSI GL73-8RD by MacPeet (Mine Laptop is MSI GL63-8RC so I think it is ok)

By the way, patch to disable GTX1050 included yet,sir?

Thank you for your support

Added in 27 minutes 48 seconds:

Update! I don't know how but after dump I restart then sound worked, but internal speaker for headphone and line out for speaker The recording sound from micro very low, too low that with maximium speaker I hear like some one whisper

Send me minhiuttiensMBP.zip

[MaLd0n]

[ref]leminhhieuctvn[/ref], DSDT.aml.zip

Inject via clover

[leminhhieuctvn]

leminhhieuctvn,

DSDT.aml.zip

(35.23 KiB) Downloaded 2 times

Inject via clover

Wow! It worked! But the microphone volume still low, any sugestion to fix it sir? And HDMI,too? I can't display through HDMI port

Thank you <3

Added in 26 minutes 38 seconds:

And also, after sleep audio is broken, tried with Darkwake = 8 => no audio devices

[MaLd0n]

[ref]leminhhieuctvn[/ref], i think ur hdmi work in nvidia and optimus dont work

check some solutions here

https://www.insanelymac.com/forum/topic/335018-intel-fb-patcher-v168/

audio after sleep, use codec commander

[leminhhieuctvn]

leminhhieuctvn, i think ur hdmi work in nvidia and optimus dont work

check some solutions here

https://www.insanelymac.com/forum/topic ... cher-v168/

audio after sleep, use codec commander

No hope with CodecCommander sir, not working T_T

Here is my info.plist of CodecCommander.Kext

info.plist.zip

[MaLd0n]

[ref]leminhhieuctvn[/ref], many time i don't edit it, last is in my alc1150, u need check

u use last applealc version?

[leminhhieuctvn]

leminhhieuctvn, many time i don't edit it, last is in my alc1150, u need check

u use last applealc version?

Yes sir! Well, here is bigger problem sir, I tried Intel Framebuffer patching using WhateverGreen, This only work if I disable your DSDL patch This method help me fix 3' black screen on boot, but now without your DSDL there is no audio Any suggestion sir?

[leminhhieuctvn]

Well, I fixed all except brightness control, use many method as well as your code Device(PNLF) All method caused screen on / off continously

Here is my new dump just in case you need

Once again, thank you so much for your support <3

Send me minhiuttiensMBP.zip

Edited December 25, 2018 by Guest

[hannsmawardi]

Everything is perfect in one installation..except my battery and trackpad..thanks

ASUS A456U

Intel i5 - 7200U

Send me Hanns-Hackintosh-ASUSA456U.zip

[MaLd0n]

[ref]leminhhieuctvn[/ref], remove PNLF device, try with simple, clover have it

Added in 9 minutes 27 seconds:

[ref]hannsmawardi[/ref], DSDT.aml.zip

TRY IT

Arquivo Comprimido.zip

[hannsmawardi]

thanks! will try it

[leminhhieuctvn]

leminhhieuctvn, remove PNLF device, try with simple, clover have it

I tried AddPLNF, but the maximium brightness is not even close to the minium brightness as before

[hannsmawardi]

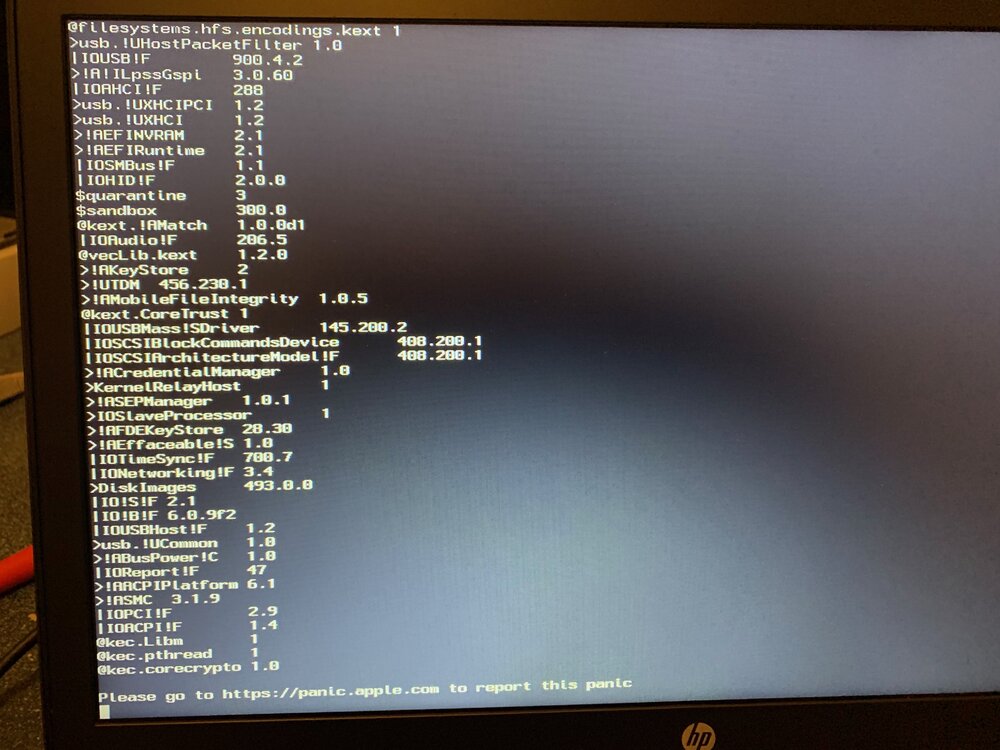

I’m patched the kext and also dsdt file onto clover file..once i restart it..kernel panic happens

[MaLd0n]

[ref]leminhhieuctvn[/ref], check weg kext, have this option now

Added in 1 minute 2 seconds:

[ref]hannsmawardi[/ref], i need see a correct screen for identify what cause it, is a framebuffer?

[leminhhieuctvn]

leminhhieuctvn, check weg kext, have this option now

Thank you, I fixed it with igfxcflbklt=freq boot flag + AppleBacklightFixup by Rehabman (3 minutes black screen came back, but it worked, so I accept ))

Now only problem is HDMI, I checked in Windows, It shows HDMI port connected to Intel UHD 630, I tried with Intel FB Patcher but no hope :'( Any solution here sir?

[hannsmawardi]

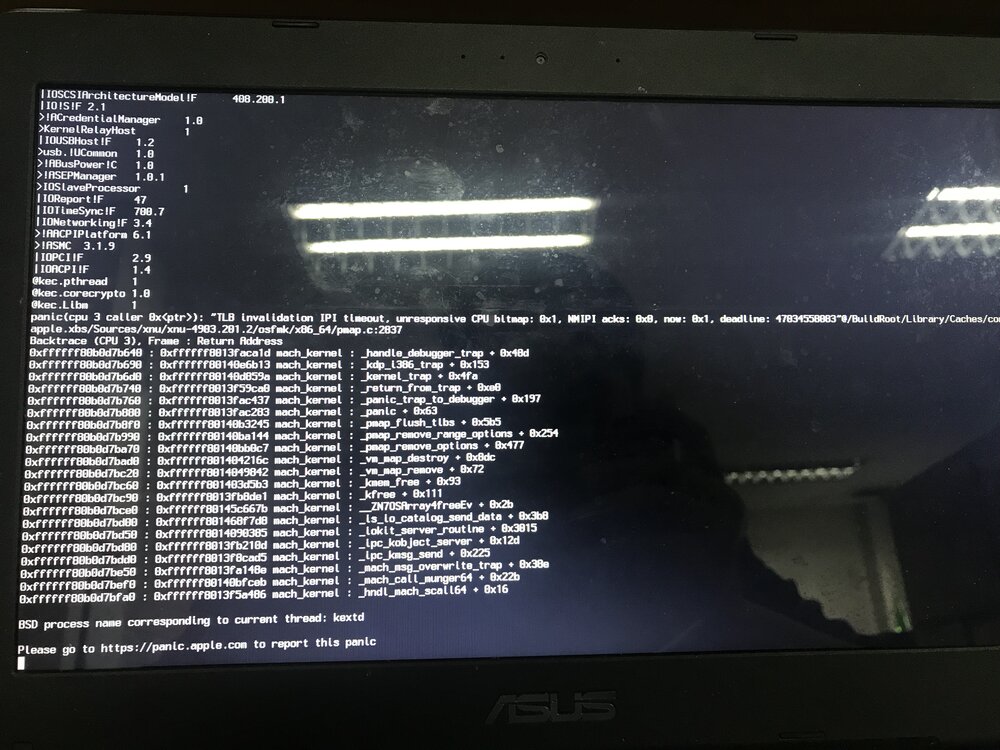

I'm not sure.. Every time i restarted it comes up random KP.. Perhaps I'll have to reinstall it again

[VictorMonteiroM]

na tela de instalação, o ultilitario de disko não reconhece o HD para instalação apenas o drive usb

[MaLd0n]

[ref]leminhhieuctvn[/ref], no idea

Added in 21 seconds:

[ref]hannsmawardi[/ref], is a famous nvram problem, no?

Added in 42 seconds:

[ref]VictorMonteiroM[/ref], reveja o procedimento, se não funcionar tente com a unsupported sata kext

[VictorMonteiroM]

VictorMonteiroM, reveja o procedimento, se não funcionar tente com a unsupported sata kext

consigo dentro do boot do clover ou preciso colocar dentro das connfig?

[MaLd0n]

[ref]VictorMonteiroM[/ref], clover/kexts/other

[hannsmawardi]

I'm not sure about that... No error regarding nvram

[riskyris]

thank you

[salut]

Hi guys

help me

my configuration

mojave 10.14.2

hp probook 650 g2

i5 6200u

intel hd 520 1366 x 768

son conexant isst

smbios 13.1

' alt=''>CLOVER.zip

Edited December 29, 2018 by Guest
