MaLd0n

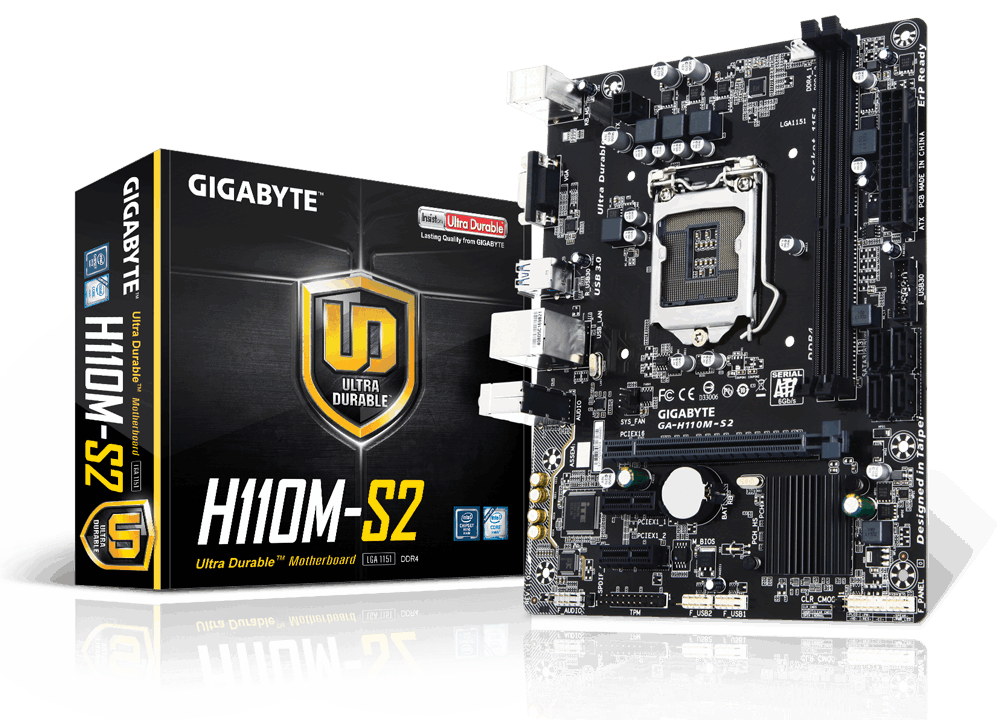

[Guide] macOS Sierra 10.12.x on Gigabyte GA H110M-S2 / DSDT

Recommended Posts

  • Administrators


Create a bootable copy of macOS Sierra, use it

Flash Drive Maker.zip

Check out the link

http://www.insanelymac.com/forum/files/file/559-flash-drive-maker/


--Install Clover in USB stick

https://sourceforge.net/projects/cloverefiboot/files/Installer/


--Replace Folder

CLOVER Installation.zip

--Install Sierra and boot into system!


--Install Clover in UEFI mode and replace with my folder

CLOVER Post Installation.zip

--Reboot and activate video!


Bingo!


Now you need a fine tune! I prefer DSDT way, apply all patches in one file, many people prefer many SSDTs or Clover patches!


If you need DSDT edits for Skylake...

-Post your full Clover folder with original tables in Origin folder(Extract with F4 in Clover boot screen)

-Post Ioreg, extract with Ioreg Explorer

IORegistryExplorer 3.app.zip

-Run it, post files generate in your desktop

RunMe.app.zip

--DSDT bios F2

My DSDT with patches for skylake

DSDT.GA H110M-S2 MaLd0n.zip

DSDT.GA H110M-S2 MaLd0n without DTGP.zip

-FIX ERRORS AND WARNINGS
-HPET
-SATA
-DTGP
-SLPB
-DARWIN
-LPC
-XHCI
-PLUGIN TYPE
-HDAS to HDEF
-HDEF
-RTC
-IRQs
-SBUS
-BUS1
-MCHC
-ALS0
-SHUTDOWN
-LAN
-USBX
-PMCR
-EC
-PNLF
-HDMI NVIDIA / ATI



Credits and thanks to the old and new people in the community who developed patches and kexts.


--SSDT

PM for Skylake use ssdtPRGen Piker-Alpha

https://github.com/Piker-Alpha

run in terminal

curl -o ~/ssdtPRGen.sh https://raw.githubusercontent.com/Piker-Alpha/ssdtPRGen.sh/Beta/ssdtPRGen.sh
chmod +x ~/ssdtPRGen.sh
sudo ~/ssdtPRGen.sh

ssdtPRGen.command.zip

--My Ioreg

GA H110M-S2.ioreg.zip

Clear NVRAM, Purge and Kextcache

Olarila.command.zip

--FakeSMC

http://www.hwsensors.com/releases

--Audio

https://github.com/vit9696/AppleALC

--USB

https://bitbucket.org/RehabMan/os-x-usb-inject-all/downloads

--LAN

http://www.insanelymac.com/forum/topic/287161-new-driver-for-realtek-rtl8111/





Support Olarila Vanilla Hackintosh by making a donation HERE

About Premium Users you can check HERE

Problems with Paypal HERE

Link to comment
Share on other sites

  • Administrators
7 hours ago, The HeadHunters said:

Can you please guide me for a new hackintosh build of Catalina/Big Sur

https://www.olarila.com/topic/15040-opencore-vanilla-guide-2021-folder-for-chipsets-monterey-ready-desktop-and-notebook/

Support Olarila Vanilla Hackintosh by making a donation HERE

About Premium Users you can check HERE

Problems with Paypal HERE

Link to comment
Share on other sites

On 9/10/2021 at 5:37 PM, MaLd0n said:

Im trying catalina in h410m s2 v2 i tried opencore default folder efi and cometlake efi and clover 400 series efi....but I'm not able to boot into setup.....pc shutdown after error and i can't read it.

10 minutes ago, The HeadHunters said:

Im trying catalina in h410m s2 v2 i tried opencore default folder efi and cometlake efi and clover 400 series efi....but I'm not able to boot into setup.....pc shutdown after error and i can't read it.

 Kernel version: Darwin Kernel Version 19.6.8: Sun Jul 5 08:43:10 PDT 2820: root:xnu-6153.141.1-9/RELEASE_X86_64

Kernel UUID: 783946ER-6F11-3647-8F90-787RER148954

Kernel slide: 8x8000000013280088

Kernel text base: 8xffffff8813400000 HIB text base: Bxfrrrrr8813380088

System model name: MacPro7.1 (Mac-27AD2F918RE68F61)

Systen shutdown begun: NO Panic diags file unavailable, panic occurred prior to initialization

Systen uptine in nanoseconds: 4994764559

In Memory Panic Stackshot Succooded Bytes Traced 41888**

Please go to https://panic.apple.com to report this panic



With clover 40 seriee efi
