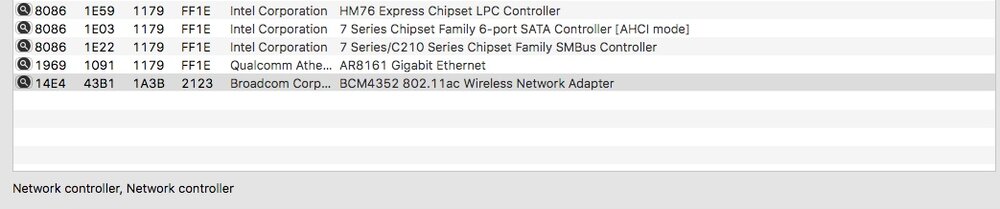

bonejoev Posted January 28, 2017 Share Posted January 28, 2017 Hello everyone and thank you for viewing my post I recently bought this half size pcie mini wifi card for my hackbook pro toshiba satellite s855-s5381, and after following numerous thread i wasn't able to get it detected or running under macOS Sierra 10.12.2. When I open DPCIManager > PCI List i do see the wifi card with venderID: 14E4 DeviceID:43B1 sub-Vendor: 1A3B sub-DeviceID: 2123 Device name: BCM4352 802.11ac Wireless Network Adapter. can anyone help me with this issue,I would greatly appreciate it. thanks Quote Link to comment Share on other sites More sharing options...
artur-pt Posted January 28, 2017 Share Posted January 28, 2017 hello use fakepciid.kext + broadcom injector https://bitbucket.org/RehabMan/os-x-fake-pci-id good hack Quote PB Easy Note TM 86 - i5 430 M - H55M - Ram - 6 GB - Alc272 - Radeon HD 5470 512 QE/CI Lenovo G500 - i5 3230m - HM77 - Ram - 8 GB - Conexant audio - HD 4000 My OS X Files Link to comment Share on other sites More sharing options...
bonejoev Posted January 28, 2017 Author Share Posted January 28, 2017 very good, I'll place these kext in the kext folder in clover, and I'll report back, thanks Quote Link to comment Share on other sites More sharing options...
bonejoev Posted January 28, 2017 Author Share Posted January 28, 2017 I placed these files in the kext folder in clover to be loaded but nothing happened, was I suppose to do something else? used kextstat in terminal but those kexts are not loaded, should I install them S/L/E ?? Quote Link to comment Share on other sites More sharing options...
artur-pt Posted January 28, 2017 Share Posted January 28, 2017 hello really don't know what all u have install before .. maybe nothing.. hackintosh .. must know ur hardware .. dev id and vendor id from ur cards .. ur best friend is goggle .. then read .. from what i see u don't follow none of this .. if is that the case .. better choice is buy a real mac http://www.insanelymac.com/forum/topic/312759-fix-macos-sierra-dp1-bcm94532z-wifi/   good hack Quote PB Easy Note TM 86 - i5 430 M - H55M - Ram - 6 GB - Alc272 - Radeon HD 5470 512 QE/CI Lenovo G500 - i5 3230m - HM77 - Ram - 8 GB - Conexant audio - HD 4000 My OS X Files Link to comment Share on other sites More sharing options...
bonejoev Posted January 29, 2017 Author Share Posted January 29, 2017 I need some help, I tried every guide out there to get this card recognized to no avail, also I don't see the bluetooth ID in DPCIManager I only see the wifi card, can someone shed some light regarding this. Quote Link to comment Share on other sites More sharing options...

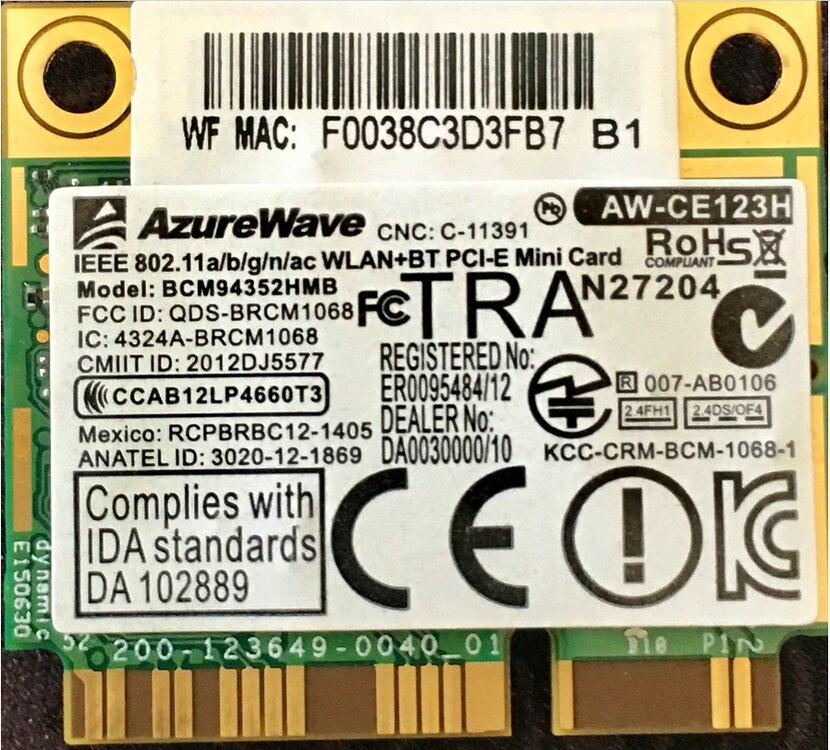

bonejoev Posted January 29, 2017 Author Share Posted January 29, 2017 this is the card that i bought. Quote Link to comment Share on other sites More sharing options...
bonejoev Posted February 1, 2017 Author Share Posted February 1, 2017 I'm replying my own post again, but that' ok, this is for anyone with the same problem. AZUREWAVE AW-CE123H WIFI (bluetooth not being recognized could be Toshiba whitelisted) I found a fix for wifi 5GHz is in post #9 This link http://www.insanelymac.com/forum/topic/317656-bcm94352hmb-bt-working-with-fakepciidkext-but-wifi-not-os-1012/ try this kext, and in clover add this into devices -> WIFI : 0x43b114E4 (my device info as per previous post) And add the patch Name : AirPortBrcm4360 Find : 4183FCFF742C48 Replace : 66C7065553EB2B Comment : 10.11-BCM94352-5GHz-US-FCC-dv Name : AirPortBrcm4360 Find : 4183FCFF742C48 Replace : 66C7062361EB2B Comment : 10.11-BCM94352-CC=#a-Ramalama Name : AirPortBrcm4360 Find : 6B100000750D Replace : 6B1000009090 Comment : 10.11-BCM94352-Airport-Extreme Name : AirPortBrcm4360 Find : 81F952AA00007529 Replace : 81F952AA00006690 Comment : 10.12-BCM94352-5GHz-US-FCC-dv Name : IOBluetoothFamily Find : 4885FF7447488B07 Replace : 41BE0F000000EB44 Comment : 10.11-BT4LE-Handoff-Hotspot-lisai9093 And then install the IO80211Family.kext (GIA PATCH) you're going to find the file in the link that I posted, I can't upload here because of the 2MB upload limit the only issue I have left is the bluetooth not being detected in the system. when I load windows 10 it only detects the wifi, no bluetooth, not even in device manager. I should be able to see the hardware needing drivers in device manager but I don't see anything at all. maybe if I apply the taping of the pin or something, I've read that could fix the problem, well I'll see what happens. Quote Link to comment Share on other sites More sharing options...
