Patches

[Stathman]

Hi!

Thanks for all the hard work MaLd0n!

I used the RunMe app with your dsdt file in my clover folder.

I don't know if this is wrong.

Anyway, here is the file.

Take a look if you can, please.

Thanks!

Send me.zip

[MaLd0n]

Hi!

Thanks for all the hard work MaLd0n!

I used the RunMe app with your dsdt file in my clover folder.

I don't know if this is wrong.

Anyway, here is the file.

Take a look if you can, please.

Thanks!

extract original DSDT with f4 key in Clover boot screen

[Stathman]

extract original DSDT with f4 key in Clover boot screen



Here you are

origin.zip

[MaLd0n]

Here you are

[ref]Stathman[/ref], DSDT.aml.zip

[Stathman]

Stathman,

DSDT.aml.zip



Thanks!!!

I'm ready to go or should I send you something after replacing the dsdt?

Is there any tutorial I should follow so I can learn to do the patching myself?

Cheers

[MaLd0n]

[ref]Stathman[/ref], ACPI SPCES, CHIPSET DATASHEETS and APPLE REAL MAC DUMPS

[Stathman]

ACPI SPCES, CHIPSET DATASHEETS and APPLE REAL MAC DUMPS

jibber jabber mumbo jumbo!

Sorry, but where do I find these?

[MaLd0n]

[ref]Stathman[/ref], google, easy

[Stathman]

Stathman, google, easy



Are those settings I have to do in clover configurator?

Give me a hint, I'm lost in the dark.

Googling just these words is not getting me anywhere.

Thank you for your patience..

[MaLd0n]

Are those settings I have to do in clover configurator?

Give me a hint, I'm lost in the dark.

Googling just these words is not getting me anywhere.

Thank you for your patience..

http://www.acpi.info/spec.htm

https://applelife.ru/threads/darwindumper-dampy-nastojaschix-macov.39174/

[Stathman]

Ok, I'm too old for this sh!t..

Thanks again

[ZeusARG]

Hello!

I've been using these patches on macOS Sierra until last update without problems (correct Power Management, Sleep mode working, USB configuration OK with only the needed ports) but now I want to update to Mojave (10.14.1); testing on fresh install o can't make sleep work and I trying to make the Intel FB.Patcher method for USB without result. On Sierra I have using a DSDT and some patches on KextsToPatch section, I thinks this patches make USB work (without USBInjectALL.kext) OK and help a sleep mode work fine also. I Share that DSDT and Kexts patchs to see if anyone can help me.

My Specs: Mobo: z77x-ud5h 1.0 (rev14)

CPU: i7 3770k

Using Intel HD4000 (Nvidia 970 connected to Mobo but not to monitor, not in use)



DSDT.aml.zip



<key>KextsToPatch</key>
	<array>
		<dict>
			<key>Comment</key>
			<string>Replace iMac12,2 with iMac13,2</string>
			<key>Disabled</key>
			<false/>
			<key>Find</key>
			<data>
			aU1hYzEyLDIK
			</data>
			<key>InfoPlistPatch</key>
			<false/>
			<key>Name</key>
			<string>com.apple.driver.AirPort.Atheros40</string>
			<key>Replace</key>
			<data>
			aU1hYzEzLDIK
			</data>
		</dict>
		<dict>
			<key>Comment</key>
			<string>Change regdomain to US-FCC (1 of 2)</string>
			<key>Disabled</key>
			<false/>
			<key>Find</key>
			<data>
			g7sgCAAABnRk
			</data>
			<key>InfoPlistPatch</key>
			<false/>
			<key>MatchOS</key>
			<string>10.12.x,10.13.x</string>
			<key>Name</key>
			<string>com.apple.driver.AirPort.Atheros40</string>
			<key>Replace</key>
			<data>
			g7sgCAAABus2
			</data>
		</dict>
		<dict>
			<key>Comment</key>
			<string>Change regdomain to US-FCC (2 of 2)</string>
			<key>Disabled</key>
			<false/>
			<key>Find</key>
			<data>
			ZseDFgkAAEMAZrhDAA==
			</data>
			<key>InfoPlistPatch</key>
			<false/>
			<key>Name</key>
			<string>com.apple.driver.AirPort.Atheros40</string>
			<key>Replace</key>
			<data>
			ZseDFgkAAAAAZrgAAA==
			</data>
		</dict>
		<dict>
			<key>Comment</key>
			<string>Disable default hub port injectors</string>
			<key>Disabled</key>
			<false/>
			<key>Find</key>
			<data>
			bW9kZWw=
			</data>
			<key>InfoPlistPatch</key>
			<false/>
			<key>MatchOS</key>
			<string>10.12.x,10.13.x</string>
			<key>Name</key>
			<string>com.apple.driver.usb.AppleUSBHub</string>
			<key>Replace</key>
			<data>
			bW9kZXg=
			</data>
		</dict>
		<dict>
			<key>Comment</key>
			<string>Disable default XHC port injectors</string>
			<key>Disabled</key>
			<false/>
			<key>Find</key>
			<data>
			bW9kZWw=
			</data>
			<key>InfoPlistPatch</key>
			<false/>
			<key>MatchOS</key>
			<string>10.12.x,10.13.x</string>
			<key>Name</key>
			<string>com.apple.driver.usb.AppleUSBXHCIPCI</string>
			<key>Replace</key>
			<data>
			bW9kZXg=
			</data>
		</dict>
		<dict>
			<key>Comment</key>
			<string>Enable TRIM</string>
			<key>Disabled</key>
			<false/>
			<key>Find</key>
			<data>
			QVBQTEUgU1NE
			</data>
			<key>InfoPlistPatch</key>
			<false/>
			<key>Name</key>
			<string>com.apple.iokit.IOAHCIBlockStorage</string>
			<key>Replace</key>
			<data>
			AAAAAAAAAAAA
			</data>
		</dict>

[MaLd0n]

[ref]ZeusARG[/ref], DSDT.aml.zip



USB

https://Olarila.com/forum/viewtopic.php?p=65287#p65287

[ZeusARG]

I receive KP with the DSDT

[MaLd0n]

use it in Kernel patches

Find - 8A0284C07442

Replace - 8A0284C0EB42

Disable panic kext logging on 10.14 Release kernel

[ZeusARG]

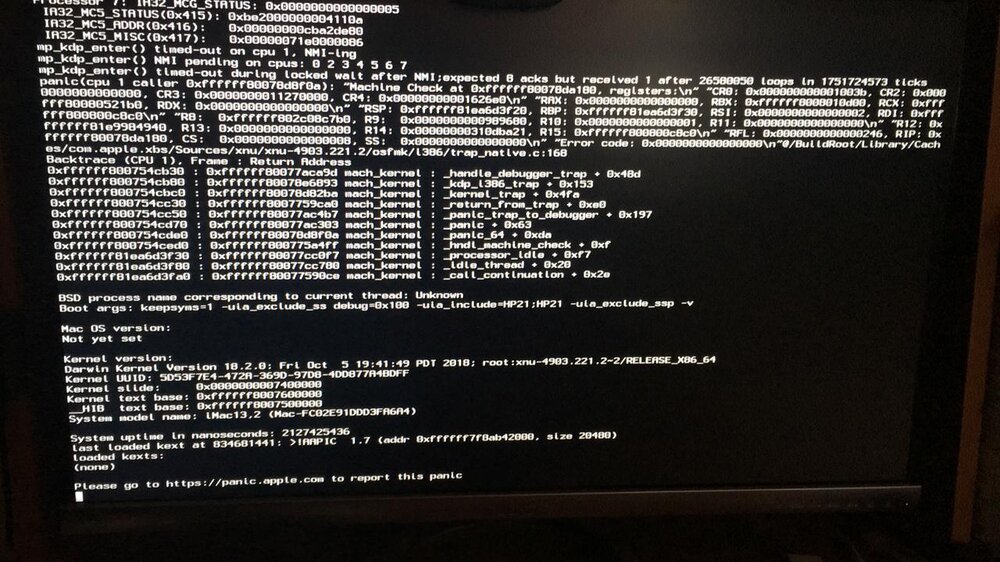

Now this KP:

[MaLd0n]

[ref]ZeusARG[/ref], back to ur old DSDT

[ZeusARG]

With Old DSDT same KP; even without the Kernel Patch that your provide (in this case, the first KP show)

[MaLd0n]

[ref]ZeusARG[/ref], this patch just avoid some KPs in Hs and Mojave

[ZeusARG]

[ref]ZeusARG[/ref], DSDT.aml.zip

USB

https://Olarila.com/forum/viewtopic.php?p=65287#p65287



Update: I upgrade directly from Sierra, and now with your DSDT I can boot, this not happen on the test fresh install ; follow from here, I put on KextsToPatch section the Disable default XHC port injectors and Disable default hub port injectors patches, realy don't know it is working but almost the USB works (without use USBInjectALL.kext and previous doing the USB configuration from the link that your share); but the Sleep mode don't works yet, the system go to Sleep (Slooooww until it sleep), but when I want to wake: the black screen again I share my new report from RunMe app Send me iMac-de-Seba.zip

[MaLd0n]

[ref]ZeusARG[/ref], disable NVIDIA for Mojave

DSDT.aml.zip

for good Power Management, generate one SSDT with Pike Script

https://Olarila.com/files/Utils/SSDT_Automator.zip

[ZeusARG]

[ref]MaLd0n[/ref], make SSDT PM config ok and the put with the DSDT on /Patched folder, the test of PM luck good, but the sleep mode is no working, now the system go to sleep mode (much more quickly that before) but automatically restart the machine on 1 second after.

Edit: on a second test, the Mac go to sleep mode OK, no restart atomically, but when I manually touch a mouse clic, or keyboard the machine restart.

[MaLd0n]

[ref]ZeusARG[/ref], extract original DSDT and post here, press F4 in Clover boot screen, files generated in clover/acpi/origin

[ZeusARG]

ZeusARG, extract original DSDT and post here, press F4 in Clover boot screen, files generated in clover/acpi/origin

This is my original DSDT from /origin folder DSDT.aml_orginal.zip

[MaLd0n]

[ref]ZeusARG[/ref], take a shot

DSDT.aml.zip



new send_me after reboot, use power button for wake
