Patches

[oldnapalm]

Updated:

MaciASL (Acidanthera fork)

New editor developed by phpdev32, compatible with DSDT Editor patches.



Patches from the extinct DSDT Auto-Patcher 0.6 are available here.



You can use them with DSDT Editor and Patcher.



If your mobo/laptop is not listed, you can use the individual patches or create a new patch based on other with same chipset.



If you want to add your patch to the list, please attach it here.



Credits:

DSDT Editor and Auto-Patcher software by el coniglio

Patches HP DV8 Nehalem and DV6 Core i Nehalem by NIXin

HP Compaq 610 by Cassio

HP DV7 6B32US by stuck

Intel DP67BG by artur-pt

All other patches by MaLd0n





Attention: patches must be applied to original DSDT.



If you booted Mac OS using an edited DSDT (renamed devices, etc) and use "extract DSDT" you will probably have compilation errors.



What you can do (just one):

- reboot without a DSDT replacement (remove dsdt.aml from / or /Extra and restart)

- start Mac OS using a boot CD

- use Windows or Linux version of DSDT Editor

- extract DSDT using Windows or Linux and open it in Mac OS, instead of using "extract DSDT"

If you use patched AppleHDA you may need to update the HDEF patch according to your audio codec. Make sure layout-id in DSDT (hex) coincides with LayoutID in AppleHDA (decimal).

[redman]

I had submitted my laptop in that thread for an update, and I got a DSDT, so now I have a guide, and only like half of us can use DSDT's. Would it be possible for me to get the patch made?

EDIT: Never mind, I got it, thanks MaLd0n!

[magnifico]

hi old what change patch in ud7 z68 b3

[oldnapalm]

Sorry, I don't understand the question. Do you mean Z68X-UD7-B3?

[magnifico]

Sorry, I don't understand the question. Do you mean Z68X-UD7-B3?

Yes Old i have this mainboard and dont work perfectly reboot and sleep...maybe is chamaleon or dsdt ?

[oldnapalm]

Are you using Maldon's patch?

What happens with sleep?

Restart fix is in FADT, it's done by Chameleon

http://forge.voodooprojects.org/p/chameleon/source/tree/HEAD/trunk/i386/libsaio/acpi_patcher.c#L663

[magnifico]

Are you using Maldon's patch?

What happens with sleep?

Restart fix is in FADT, it's done by Chameleon

http://forge.voodooprojects.org/p/chameleon/source/tree/HEAD/trunk/i386/libsaio/acpi_patcher.c#L663

Yes of course i use dsdt modified by Daniel , my problem is when restart and when sleep pc

I have sandy bridge..this is a problem..is very slow for restart and sleep.

I use Chamaleon rev 1505

[oldnapalm]

You can try restart patch using keyboard controller reset, it usually works for laptops, but who knows

http://forum.voodooprojects.org/index.php/topic,1056.msg9802.html#msg9802

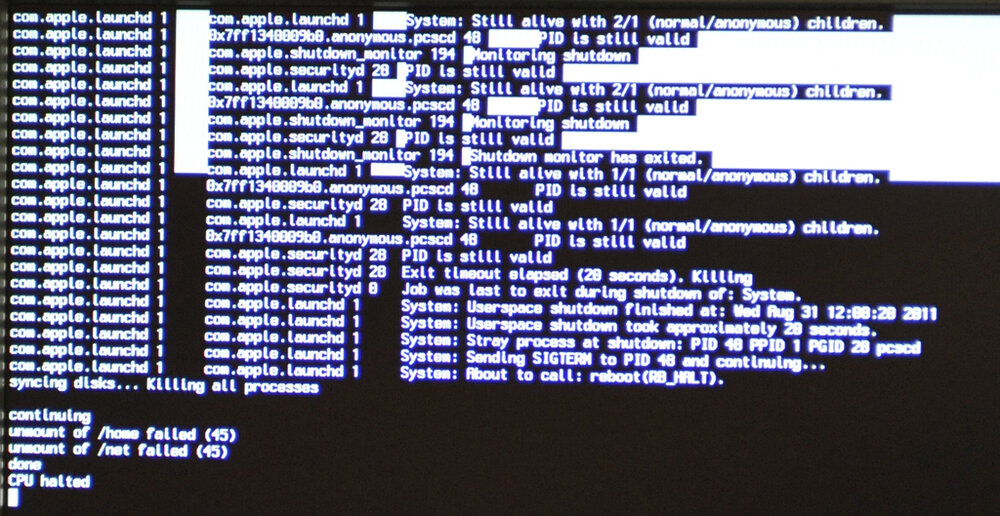

About the photo, it's shutdown, right? Not sleep?

[magnifico]

You can try restart patch using keyboard controller reset, it usually works for laptops, but who knows

http://forum.voodooprojects.org/index.php/topic,1056.msg9802.html#msg9802

About the photo, it's shutdown, right? Not sleep?

Listen me..OLD

Only when reboot pc and to exit from pc ..ok ?

Unterstound?

PS: How is applied this patch?

In Org.BootPlist?

I am a nobbie...

[oldnapalm]

It's not a DSDT patch, it's a change in FADT made by Chameleon, you have to edit Chameleon source code and compile. In current trunk it's in line 735

fadt_mod->Reset_Address        = 0x0cf9; // Address of the register

Just replace 0x0cf9 by 0x64.

The shutdown issue may be related to DSDT patch. Check if PMRS address is correct (0x0430).

http://osx86.co/f36/various-dsdt-mods-t1960/post41570.html

Did you test shutdown without the patch?

[vladichimescu]

Hy there... a month ago when I tried to update my DSDT using the auto-patcher [just before to be depreciated] I uploaded my DSDT to be patched.

I manually tried to modify, however I couldn't get all done, mainly the hdmi because it's PEGP no and GFX0 yes; any help? 64BIT !

Fujitsu Amilo Pi 3560: http://students.info.uaic.ro/~vlad.ichimescu/amilo3560/AMILO3560.html

TO DO:

-speedstep [using chameleon generate P-states and C-states /not verified -probably working]

-alc272 [using DSDT edit however if any way of sleep it's no sound, 5.1 problems -DSDT and patched AppleHDA /needs reworked]

-sleep [using DSDT edit or SleepEnabler doesn't work /unsolved]

-gt240m 1gb hdmi [using DSDT edit can't be implemented because of missing PGEP and GFX0 present /unsolved]

-all connectors [using DSDT edit all USBs are resolved and working, card reader still not working /needs reworked]

USED:

-system bootable with shutdown/restart working [Chameleon bootloader AND FakeSMC.kext AND org.chameleon.Boot.plist AND smbios.plist]

-built-in keyboard and touchpad [AppleACPIPS2Nub.kext AND ApplePS2Controller.kext]

-nVIDIA GeForce GT240M [GraphicsEnabler=Yes /full video working with no hdmi sound /want DSDT for video and sound hdmi]

-Realtek ALC272 [AppleHDA.kext binary patch and DSDT edit]

-Realtek Gigabit Ethernet [RealtekRTL81xx.kext]

any master here can help ? my DSDT is quite 'not easy'

original DSDT: http://students.info.uaic.ro/~vlad.ichimescu/amilo3560/Fujitsu%20Amilo%20Pi%203560%20DSDT.dsl

Edited September 8, 2011 by Guest

[magnifico]

It's not a DSDT patch, it's a change in FADT made by Chameleon, you have to edit Chameleon source code and compile. In current trunk it's in line 735

fadt_mod->Reset_Address        = 0x0cf9; // Address of the register

Just replace 0x0cf9 by 0x64.

The shutdown issue may be related to DSDT patch. Check if PMRS address is correct (0x0430).

http://osx86.co/f36/various-dsdt-mods-t1960/post41570.html

Did you test shutdown without the patch?



Hi OLD , listen me please...Magnifico (Carmine) is very nobbie..

I am great overclocker , but whit hackintosh does not understand nothing, can you help me? I must pass my Camaleon to you?

Or DSDT ( Daniel) ?

[oldnapalm]

The restart via keyboard controller doesn't work (as we tested in IRC) and the shutdown patch (PMRS address) is correct, so I have no idea of what's wrong. Maybe Sandy Bridge needs different patches from previous chipsets.

[magnifico]

The restart via keyboard controller doesn't work (as we tested in IRC) and the shutdown patch (PMRS address) is correct, so I have no idea of what's wrong. Maybe Sandy Bridge needs different patches from previous chipsets.

Ok Thank's OLD ..thank's of heart ..you are a great friend

Carmine

Maybe SB....

[Ayoosh]

oK Guyz its a crazy question but once i get the dsdt thing, how do i compile or do it with dsdt patcher??????

[oldnapalm]

There's a video in the editor's topic

nZIHw-QYO64

[magnifico]

There's a video in the editor's topic

nZIHw-QYO64

hi Old ...in folder patch there in not " Patch Gigabyte ud7 z68 "

how insert this?

Maybe whith merge and CUT in new file txt?

[oldnapalm]

Download GA Z68X-UD7-B3.txt from first post, or copy and paste into Patch - New.

[Ayoosh]

There's a video in the editor's topic

nZIHw-QYO64

[alexramone]

Olá old, tentei utilizar o DSDT Editor com o txt da minha placa mãe (GA X58A-UD3R) e está dando estes erros do print e o botão Fix não está corrigindo, eu acho, pois mando compilar de novo e aparecem os mesmos erros de novo... pode me ajudar?

[MaLd0n]

Olá old, tentei utilizar o DSDT Editor com o txt da minha placa mãe (GA X58A-UD3R) e está dando estes erros do print e o botão Fix não está corrigindo, eu acho, pois mando compilar de novo e aparecem os mesmos erros de novo... pode me ajudar?

[attachment=0]Captura de Tela 2011-09-09 às 10.05.15.png[/attachment]

O seu DSDT não é original

extraia pelo Windows e aplique

[magnifico]

me too

[oldnapalm]

me too

You must apply over original DSDT, yours is not original.

[magnifico]

You must apply over original DSDT, yours is not original.

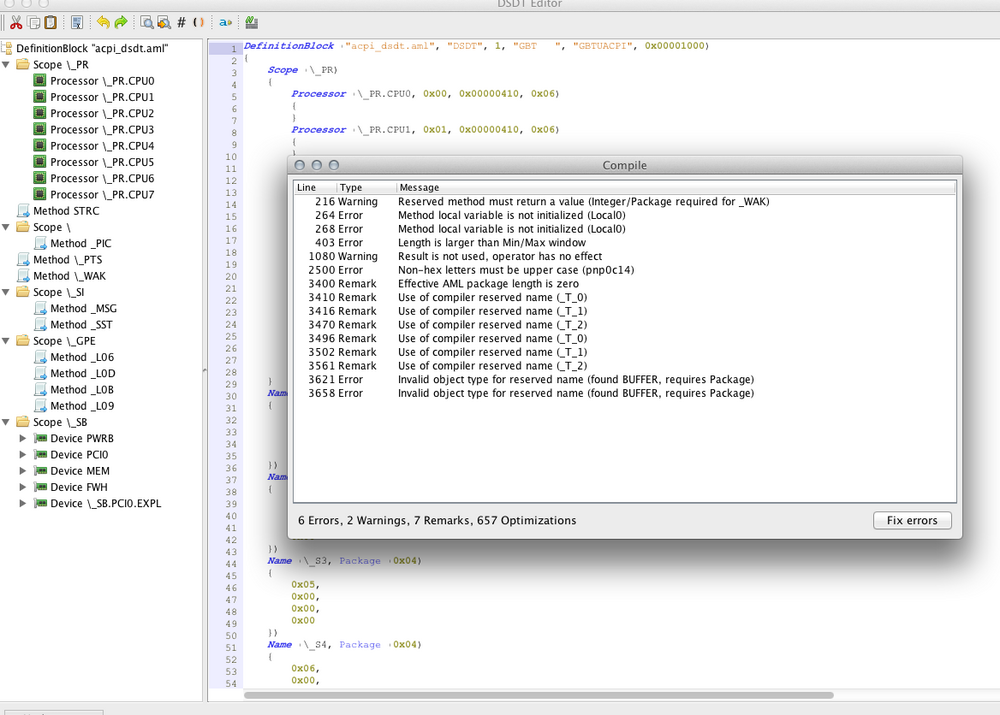

I use originan dsdt extract from windows..and when apply patch my Gigabyte...

This message

[oldnapalm]

I use originan dsdt extract from windows..and when apply patch my Gigabyte...

This message

Click on "fix errors".
