Mavericks 10.9 on Dell Latitude e5420

Recommended Posts

Hi everybody, i'm french, i'm writing this post in english, and i'm not really confortable.




I have installed Mavericks on my dell latitude e5420 (http://www.dell.com/...titude-e5420/pd)

I used the method "myHack". If you know this method i need to modify the extra folder

There is a good tuto to use my hack http://myhack.sojugarden.com/guide/



In my extra folder i put:

dsdt.aml

SSDT.aml

org.chameleon.Boot.plist

smbios.plist (Macbookpro 8.1)



In my extra/extensions folder i put:

AppleACPIPlatform.kext version 2.0

AppleHDA.kext version 2.5.3

AppleIntelCPUPowerManagement.kext version 216.0.0

AppleIntelSNBGraphicsFB.kext version 8.18.27 (modified to enable VGA)

AppleKextExcludeList.kext version 1.18.0

AppleSmartBatteryManager2.kext version 1.29.1

BCM5722D.kext version 2.3.5

DisableTurboBoostBattery.kext version 1.0

FakeSMC.kext version 5.2.798

In complement i use "hw monitor" with this sensors.kext in

FakeSMC.kext/contents/Plugins/ACPISensors.kext

CPUSensors.kext

GPUSensors.kext

I don't put and i don't try LPCSensors.kext with Mavericks ,because on ML it's cause boot problems.

lspcidrv.kext

Patched_10.7_AppleRTC.kext version 9.9

VoodooPS2Controller.kext version 1.8.8

VoodooSDHC.kext version 1.1.2 (modified to enable in plist)


After the install, the sound doesn't work, and i have a lot of "doublons":


I need to erase this kexts file from my sytem/library/extensions

AppleACPIPlatform.kext version 2.0

AppleHDA.kext version 2.5.3

AppleIntelCPUPowerManagement.kext version 216.0.0

etc, the same in extra folder


I replace AppleHDA.kext version 2.5.3 to AppleHDA.kext version 2.5.2 in extra/extentions folder

I use "myhack", run my fix, quick.

I reboot my computer, and the sound work.


Now i put back the AppleHDA.kext version 2.5.3 to replace AppleHDA.kext version 2.5.2 in extra/extentions folder

I use "myhack", run my fix, quick.

I reboot my computer, and the sound work with better quality (i think, if you want, you can keep AppleHDA.kext version 2.5.2)


Now this results:


Does audio work? - YES, Integrated micro(both) doesn't work


Does HDMI work? - YES


Does VGA work? - YES, with AppleIntelSNBGraphicsFB modified


Does HDMI Audio work? - YES


Sleep works, that's confirm - YES


Does it sleep and wake when closing and opening lid? - Closing: YES, opening: YES


Screen brightness is controlled by Fn+Pause and Fn+F3 or Fn+up and down button - YES


Audio control is by the right side - YES


Keyboard backlit is controlled by Fn+right arrow - NO


Screen snapshot is by Fn+PrintScrn - NO


Fn+F1 for sleep - YES


tab power button to wake - YES


wireless card - NO i'm using "HoRNDIS-rel5" with my android phone (cyanogenmod)


ethernet - YES


Card reader - YES





Good hack.




Un dernier mot en français, soyez patient, ne restez pas buté sur un problème. La nuit porte conseil, c'est à dire se reposer pour mieux recontruire votre hack.


Bonne chances à tous et Merci à tous.

dsdt.aml + SSDT.aml + Boot.plist + smbios.zip

Link to comment
Share on other sites

Hello


Excuse me but we don't give support to Myhack tools or any All-in-one.


other thing, your kexts are in E/E, since 10.7 all kext need be in S/L/E(i think myhack doesn't know about this)

Another thing, you have many unnecessary kext...


I recommend install with our image bootable, ready to boot(isn't distro, it's retail)

MV 10.9: http://Olarila.com/forum/viewtopic.php?f=31&t=3836

CPU: Intel i7 2600 | Mobo: IPMH61R1 | Memória: 8Gb| Áudio: VT1705| Gráfica: GeForce GT 610 | HD: 500GB, 80GB | SO: Windows 7/OS X Mavericks 10.9

Não Damos Suporte as ferramentas de tonycrap

We don't give support tonycrap's tools

Link to comment
Share on other sites

Hello


Excuse me but we don't give support to Myhack tools or any All-in-one.


A: other thing, your kexts are in E/E, since 10.7 all kext need be in S/L/E(i think myhack doesn't know about this)

B: other thing, you have many unnecessary kext...


C: I recommend install with our image bootable, ready to boot(isn't distro, it's retail)

MV 10.9: http://Olarila.com/forum/viewtopic.php?f=31&t=3836



Thanks for your post, i understand you don't give support to Myhack, i don't post here to promote this method.

I'm simply sharing my work, the most important is my DSDT, i create it myself, with a lot of information i took from Olarila.

When i'm built a hackintosh, it's a hobby.


You are right, when i put my kext in E/E and i use my hack. the software create a kext (myhack.kext) in S/L/E, if we look inside we have all kext from E/E


myhack.kext/Contents/PlugIns

ACPISensors.kext

AppleACPIButtons.kext

AppleACPIEC.kext

AppleACPIPlatform.kext

AppleHDA.kext

AppleHDAController.kext

AppleHDAHALPlugIn.bundle

AppleHDAHardwareConfigDriver.kext

AppleIntelCPUPowerManagement.kext

AppleIntelSNBGraphicsFB.kext

AppleKextExcludeList.kext

AppleMikeyDriver.kext

AppleSmartBatteryManager2.kext

BCM5722D.kext

CPUSensors.kext

DisableTurboBoostBattery.kext

DspFuncLib.kext

FakeSMC.kext

GPUSensors.kext

IOHDAFamily.kext

lspcidrv.kext

Patched_10.7_AppleRTC.kext

VoodooPS2Controller.kext

VoodooPS2Keyboard.kext

VoodooPS2Keyboard.kext.dSYM

VoodooPS2Mouse.kext

VoodooPS2Mouse.kext.dSYM

VoodooPS2Trackpad.kext

VoodooPS2Trackpad.kext.dSYM

VoodooSDHC.kext


Can you tell me witch kexts are unnecessary?


distro=from app store retail=from others.

That's right or i'm wrong?


I give apologize about my really bad english. I know it can't be horrible to read and understand my post.

Merci :)

Link to comment
Share on other sites

Hello


No problems dude, every day many people come here talking that installed OSX following the guides of tonycrap or myhack, but the real problem isn't in installtion, the real problem is in post-installation.


Remove all those kexts.


Install FakeSMC: http://Olarila.com/files/10.8/HWSensors/FakeSMC.kext.zip

and NullCPUPM to fix power management: http://Olarila.com/files/10.6/PM/NullCPUPowerManagement.kext.zip


Did Myhack install Chameleon as bootloader?


You can continue your post-installation, but my advice is that you re-install OSX and follow this guide: http://Olarila.com/forum/viewtopic.php?f=28&t=1716

Don't worries, read carefully and undestand, if you have a question me and others uses will help you.

distro=from app store retail=from others.

I didn't undestand this, but distro=modified OSXretail=Original OSX without modified(only include some kext and a bootloader to boot)

You have a good english

CPU: Intel i7 2600 | Mobo: IPMH61R1 | Memória: 8Gb| Áudio: VT1705| Gráfica: GeForce GT 610 | HD: 500GB, 80GB | SO: Windows 7/OS X Mavericks 10.9

Não Damos Suporte as ferramentas de tonycrap

We don't give support tonycrap's tools

Link to comment
Share on other sites

Hello


No problems dude, every day many people come here talking that installed OSX following the guides of tonycrap or myhack, but the real problem isn't in installtion, the real problem is in post-installation.


Remove all those kexts.


Install FakeSMC: http://Olarila.com/files/10.8/HWSensors/FakeSMC.kext.zip

and NullCPUPM to fix power management: http://Olarila.com/files/10.6/PM/NullCPUPowerManagement.kext.zip


Did Myhack install Chameleon as bootloader?


You can continue your post-installation, but my advice is that you re-install OSX and follow this guide: http://Olarila.com/forum/viewtopic.php?f=28&t=1716

Don't worries, read carefully and undestand, if you have a question me and others uses will help you.


I didn't undestand this, but distro=modified OSXretail=Original OSX without modified(only include some kext and a bootloader to boot)

You have a good english



YES Myhack install Chameleon as boot loader.


You need to understand this first:

When i use Myhack method, i put the extensions in E/E

I run "myhack.app", it create "myhack.kext" in S/L/E, in the content it place all extensions from E/E


But if i don't want to use Myhack method, I use Kext Utility to put extensions in S/L/E, before i delete "myhack.kext" in S/L/E and all extensions in E/E


Now i can explain this below:

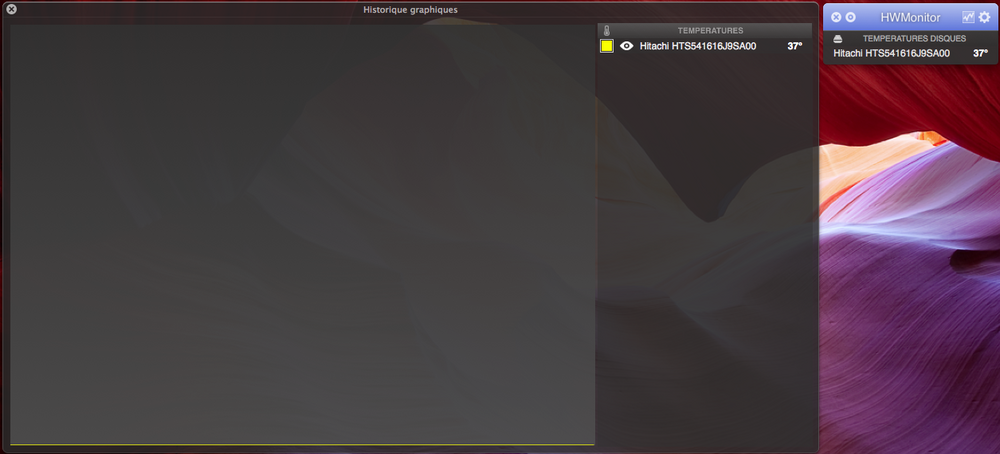

When i install FakeSMC Without plugins1217720320_FakeSMCwithoutplugins.png.1b22a2bdbe537bd6112cf989451be248.png

Run HWMonitor.app you can see only the hard drive temperature386214293_withfakesmcalone.thumb.png.6327bfe5a67efd4129fefd545ef4af30.png

Link to comment
Share on other sites

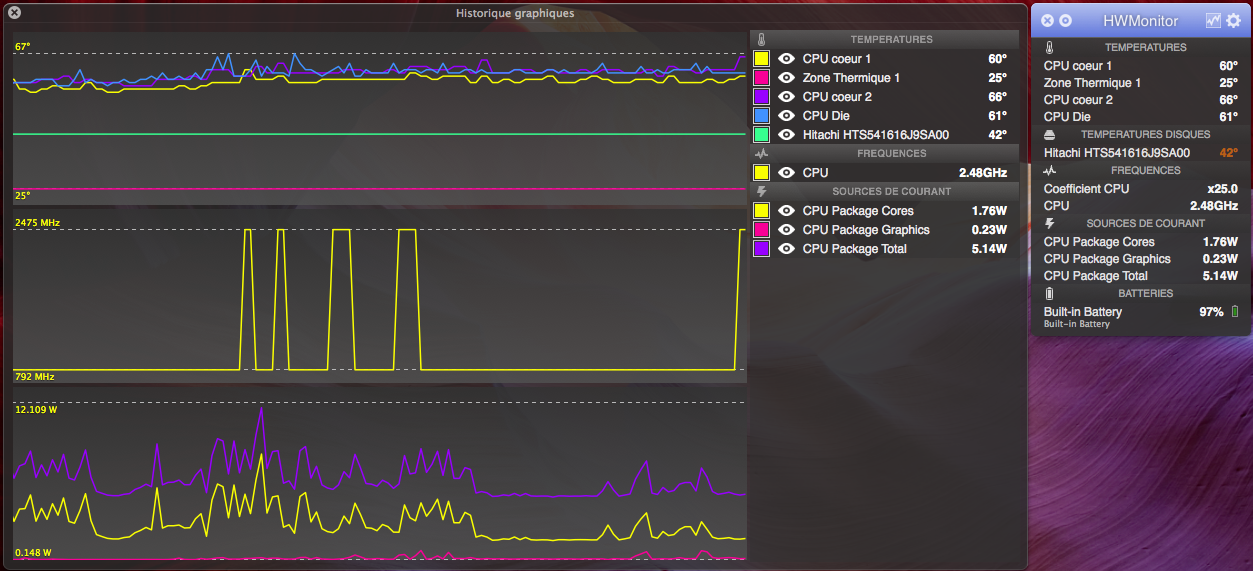

When i install FakeSMC With acpi and cpu plugins1014106911_FakeSMCacpicpu.png.67f9d397c13953d003467f0e9a84c6da.png

Run HWMonitor.app you can see the hard drive temperature and a thermic area, the battery and now alls CPU temperature and frequency 1373761344_HWMonitoracpicpu.thumb.png.3c0917f54809b986f2e0cd16b52f3dac.png



The CPU coefficient is 25, the frequency 2,48GHz, it is the max for the moment, because turboboost doesn't work.

Link to comment
Share on other sites

Now to enable the CPU turbo boost i add this kext:

DisableTurboBoostBattery.kext

if i use NullCPUPowerManagement it doesn't work, it work with AppleIntelCPUPowerManagement

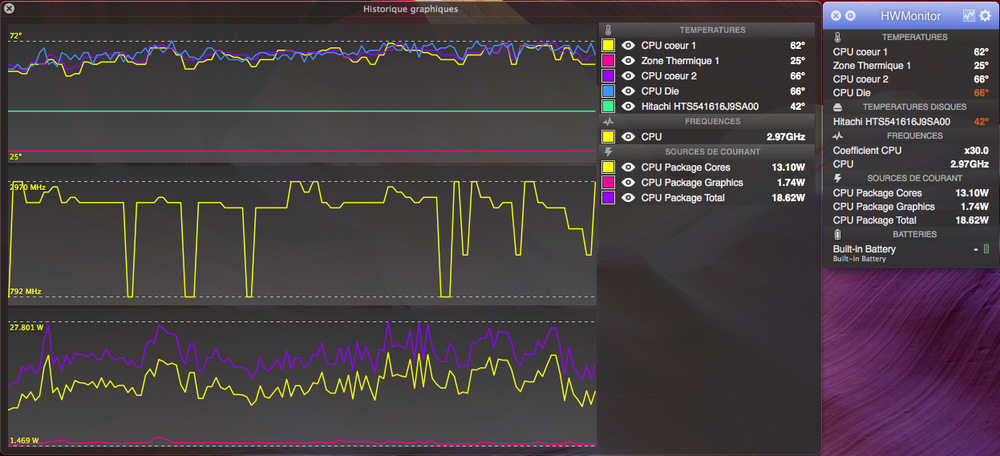

Look HWMonitor now:104244928_DisableTurboBoostBatteryAppleIntelCPUPowerManagement.thumb.png.0b785262a6807310a640c46f4a069382.png



The CPU coefficient up until 30, the frequency 2,97GHz, because turboboost work now.


Pay attention, it's work for me because i have edit a correct DSDT.aml and SSDT.aml.

Link to comment
Share on other sites

Hello


Why many post to same goal?


So put FAkeSMC+necessary plugins.


You don't need kext DisableTurboBossBattery...


I recommended the NullCPUPM until you have power management, then you have to remove it


To activavte power management you need:

*SSDT generated by pike's script

*patch AICPUPM

*DSDT(if you want, but is recommended)

*DropSSDT=Yes(activated in org.chameleon...)

*C e P States=No

*Remove NullCPUPM


AppleIntelCPUPowerManagement Already in S/L/E natively, the AICPUPM given by Myhack doesn't work 100%, you must use the AICPUPM that came with the system installed

CPU: Intel i7 2600 | Mobo: IPMH61R1 | Memória: 8Gb| Áudio: VT1705| Gráfica: GeForce GT 610 | HD: 500GB, 80GB | SO: Windows 7/OS X Mavericks 10.9

Não Damos Suporte as ferramentas de tonycrap

We don't give support tonycrap's tools

Link to comment
Share on other sites

Hello, i follow the PimentelX86's advice


Now I have:

a new SSDT generated by pike's script

AICPUPM patched from the original installer (appstore)

I didn't modified the DSDT

in org.chameleon:

DropSSDT

Yes

EthernetBuiltIn

Yes

GraphicsEnabler

Yes

Kernel

mach_kernel

Theme

Default

Timeout

2


I removed NullCPUPM

I keep AppleSmartBatteryManager v1.29.1 instead the original v161.0.0 (it doesnt' work)


The cpu work fine, turboboost is enable.


The problem, when I send the laptop to sleep (all commands work: fnkeys, lid off, etc) it turns off but when i turn on the monitor wake with black screen.

I don't know to fix it, i try sleepenabler, but i have kernelpanic, perhaps i need to change something in the dsdt


One more problem, when i have a vga display plugged, if i want to change the resolution, the vga monitor change to black screen, in sytem preference i can still see it. I have not this problem with hdmi display.


Thanks to PimentelX86, for the goods advices he is posting in this forum.
