boumbo

ethernet card injection in dsdt

Recommended Posts

Hi everyone,

i install succesfully my hackintosh on the zotac h67-itx-c-e, all workin: ethernet,audio,usb,etc..


I want to install avid media composer but it doesn't want to activate the app if there is no device in the system information , ethernet card.


My ethernet workin but isn't recognize as an ethernet card in the system information so avid think that i haven't ethernet card. I fixed this problem in my other hackintosh using EFIStrings added in com.apple.. file .


I am trying to inject it in my dsdt but unsuccesfully.


I use ioregexplorer to show where my ethernet build in is : PEX2

So i added as a sub device in PEX2:



Device (ETH0)
{
           Name (_ADR, Zero)
           Name (_PRW, Package (0x02)
          {
              0x09,
              0x03
           })
           Method (_DSM, 4, NotSerialized)
          {
                Store (Package (0x06)
                   {
                       "built-in",
                        Buffer (One)
                        {
                            0x01
                         },

                       "device_type",
                       Buffer (0x09)
                      {
                         "ethernet"
                       },

                       "name",
                        Buffer (0x24)
                       {
                           "Realtek RTL8111/8168B PCI-E Gigabit"
                        }
                        }, Local0)
                        DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                        Return (Local0)
                  }
           }

But it doesn't inject the ethernet information in the System Informations\Ethernet Card


Have you any clues for help me?

thanks

Link to comment
Share on other sites

  • Administrators

post ioreg

I use it

Device (LAN0)
               {
                   Name (_ADR, Zero)
                   Method (_DSM, 4, NotSerialized)
                   {
                       Store (Package (0x08)
                           {
                               "AAPL,slot-name",
                               Buffer (0x07)
                               {
                                   "Slot-2"
                               },

                               "model",
                               Buffer (0x2B)
                               {
                                   "RTL8111/8168B PCI Express Gigabit Ethernet"
                               },

                               "built-in",
                               Buffer (One)
                               {
                                   0x00
                               },

                               "device_type",
                               Buffer (0x14)
                               {
                                   "Ethernet Controller"
                               }
                           }, Local0)
                       DTGP (Arg0, Arg1, Arg2, Arg3, RefOf (Local0))
                       Return (Local0)
                   }
               }

-Donations-

PayPal HERE - Stripe HERE - Ko-Fi HERE - BuyMeaCoffee HERE - Mercado Livre HERE

Skrill danielnmaldonado@gmail.com - BTC 33HeGCuCSh4tUBqdYkQqKpSDa1E7WeAJQ3 - BNB 0x10D1d656eCa00bD521f9b4A43B83098B8142e115 - USDT BSC BEP20 0xb57cfdfa371fad1981910f0e8332409ab99f74d9 - USDT TRC20 TUR6Z9AVS4AYzqPnULoHrfFvppRbhXmNbZ - KASPA kaspa:qpxzufgfj8p6r0krg58yzvs0009h2mwqgvcawa0xc2pth7sgzpv56j4f6dtvk - PicPay @danielnmaldonado - PiX @danielnmaldonado@gmail.com

Premium Users HERE - Problems with Paypal HERE


Sign up for a Bybit account and claim exclusive rewards HERE

New ways to earn money with Linkvertise HERE

Link to comment
Share on other sites

Hi,

sorry for the late answer, i was very busy with getting full working hackintosh,

for the ethernet injection, it was a bad installled kext, after reinstall it withkext utility, the ethernet card information card appear but no avid media composer activation possible because avid don't give us the system id when we try to activate it with telephone.


But after injection in the dsdt of the ETH0 device, it give us the system id.


Your dsdt eth0 fix is different from the one i use


i have built in 0x01 and you 0x00, what does it change?

you don't use the PWR info, have you wake on lan capability?


thanks for all

Link to comment
Share on other sites

  • Administrators
Hi,

sorry for the late answer, i was very busy with getting full working hackintosh,

for the ethernet injection, it was a bad installled kext, after reinstall it withkext utility, the ethernet card information card appear but no avid media composer activation possible because avid don't give us the system id when we try to activate it with telephone.


But after injection in the dsdt of the ETH0 device, it give us the system id.


Your dsdt eth0 fix is different from the one i use


i have built in 0x01 and you 0x00, what does it change?

you don't use the PWR info, have you wake on lan capability?


thanks for all

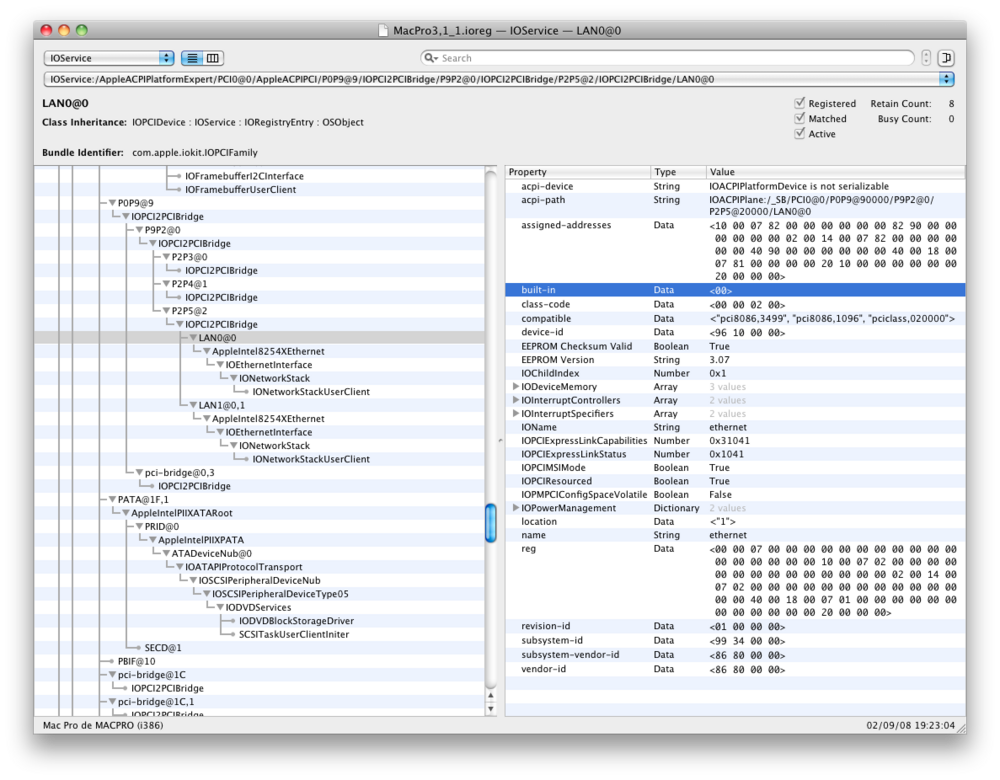

my patches are based on a Mac Real ioreg

28977321_Capturadetela2011-08-19s22_44_36.thumb.png.45b1891ee3920d8a640da9e24f45df86.png



wake

use it

http://lnx2mac.blogspot.com/p/realtekrtl81xx-osx-driver.html
