xsmile Posted January 23, 2013 Author Share Posted January 23, 2013 Use this tool and read the first few posts carefully. http://www.insanelymac.com/forum/topic/285444-pmpatch-uefi-patching-utility/ Quote 10.9 @ Asus P8Z77-V LK [ALC892, ASM1042, RTL8168], Core i5-3570k, XFX HD 7870 Link to comment Share on other sites More sharing options...

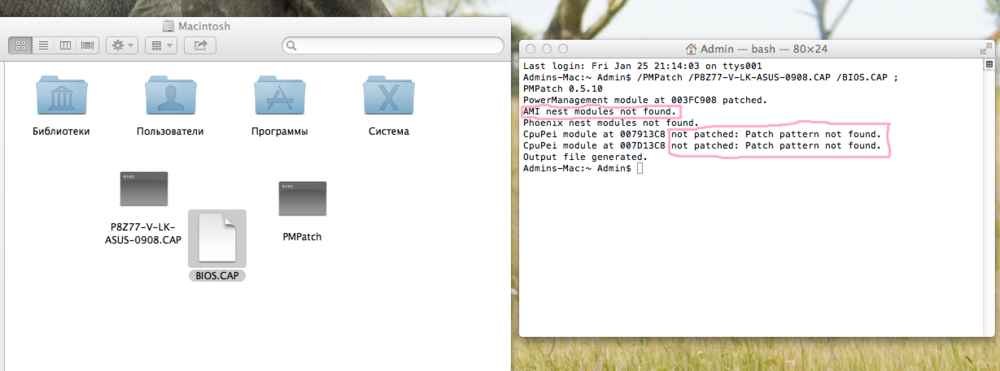

nekitXD Posted January 25, 2013 Share Posted January 25, 2013 Use this tool and read the first few posts carefully.http://www.insanelymac.com/forum/topic/285444-pmpatch-uefi-patching-utility/ I'm trying to flash my bios with patched .CAP file. Asus EZ flash refused to flash my bios... PS. This is normal? (attached photo) Quote Link to comment Share on other sites More sharing options...
xsmile Posted January 25, 2013 Author Share Posted January 25, 2013 Yes. It just needs to patch the PowerManagement module and this was done and logged in the first line. Read this: http://www.applelife.ru/threads/%D0%9F%D0%B0%D1%82%D1%87-%D0%91%D0%B8%D0%BE%D1%81%D0%B0-uefi-%D0%A1%D0%B5%D1%80%D0%B8%D0%B8-%D0%90sus-p8xxx.34578/page-15#post-314986 Quote 10.9 @ Asus P8Z77-V LK [ALC892, ASM1042, RTL8168], Core i5-3570k, XFX HD 7870 Link to comment Share on other sites More sharing options...
nekitXD Posted January 25, 2013 Share Posted January 25, 2013 Yes. It just needs to patch the PowerManagement module and this was done and logged in the first line.Read this: http://www.applelife.ru/threads/%D0%9F%D0%B0%D1%82%D1%87-%D0%91%D0%B8%D0%BE%D1%81%D0%B0-uefi-%D0%A1%D0%B5%D1%80%D0%B8%D0%B8-%D0%90sus-p8xxx.34578/page-15#post-314986 Thank you! Quote Link to comment Share on other sites More sharing options...
xalucardx Posted January 30, 2013 Share Posted January 30, 2013 Hi, first I wanna thank you for the thread, I have basically the same set up as you but I'm kinda noob on this, I'm running 10.8.3 and I also have a Hd 7870, I'm using cover rl1050 since for some reason chameleon don't wanna work for me, I installed the patches bios too but my sleep doesn't work, I get the same black screen as you but later I started getting a white screen,, I tried to follow thishttp://rampagedev.wordpress.com/2012/12/04/about-amd-7970-working-with-full-qe/ but I'm clueless, any help will be appreciated Quote Link to comment Share on other sites More sharing options...
xsmile Posted January 30, 2013 Author Share Posted January 30, 2013 Hi xalucardx, currently there is no fix for the white screen. The only workaround is to go into Sleep Mode and Wake again on each reboot to get output. Black or white screen is just a matter of resolution I think. You should try which framebuffer works for you by using Clover. Usually Aji or Chutoro will do. Then you can add it to your DSDT yourself, if you want. I attached a patch which is compatible with the device names I use in my DSDT (PEG0/GFX0 instead of PEG0/PEGP). You will have to change the framebuffer name for each port you got. Additionally you might want to try these SSDT files for the 3570k. Turn off any "generate c/p-state" options and do not drop existing tables in Clover. Also use iMac13,1 in your SMBIOS. They should enable turbo and C-States. Have you tried resetting the CMOS after flashing the BIOS? Which DSDT do you use? Can you post your Clover config? patch_7870.zip ssdt_3570k.zip Quote 10.9 @ Asus P8Z77-V LK [ALC892, ASM1042, RTL8168], Core i5-3570k, XFX HD 7870 Link to comment Share on other sites More sharing options...
xalucardx Posted January 30, 2013 Share Posted January 30, 2013 (edited) the only change i did to the clover config was to disable GraphicsEnabler , i posted the config and my dsdt, i also reseted cmos after the bios update , i can only boot with -x and for some reason my sleep its not working *edit* got it working ,i was stupid enough to forger to zip the files config.rar DSDT.rar Edited January 30, 2013 by Guest Quote Link to comment Share on other sites More sharing options...
xsmile Posted January 30, 2013 Author Share Posted January 30, 2013 I don't see the files, you must click "add the file" after choosing the filename. Sleep is probably not working because you are in safe mode. Try enabling GraphicsEnabler and experiment with FBConfig. For me "Aji" worked with the DVI port. Quote 10.9 @ Asus P8Z77-V LK [ALC892, ASM1042, RTL8168], Core i5-3570k, XFX HD 7870 Link to comment Share on other sites More sharing options...
xalucardx Posted January 30, 2013 Share Posted January 30, 2013 Im using hdmi for now since i got it hooked to my TV since i had to borrow my monitor to my aunt for a few days , ill try to fix sleep using the intel hd which is working just fine Quote Link to comment Share on other sites More sharing options...
xsmile Posted January 30, 2013 Author Share Posted January 30, 2013 Are you using the exact same file you uploaded? If yes, it is invalid - you must compile it with DSDT Editor first. You can't just change the file ending from .dsl to .aml. Also turn off the DSDT patches of Clover as you don't need them. Which card version have you got? The original from AMD? Quote 10.9 @ Asus P8Z77-V LK [ALC892, ASM1042, RTL8168], Core i5-3570k, XFX HD 7870 Link to comment Share on other sites More sharing options...
xalucardx Posted January 30, 2013 Share Posted January 30, 2013 I'm think it is, when I get home I'll boot whit the Intel and make an extract, I got a gigabyte ghz edition 7870 Quote Link to comment Share on other sites More sharing options...
xalucardx Posted January 31, 2013 Share Posted January 31, 2013 Ok now i got a new problem.... now im getting a drm problem at boot and can only boot on save boot with the Intel 4000 , here i posted now 2 dsdt , one clean and the other one is parched with DTGP , deleted clover and installed again still getting the drm issue , im gonna browse thru the settings to see if i got something wrong there. thanks alot for your help *edit* I just found one of my issues, AppleHDADrivers somehow was preventing the OS from booting, also changed to chameleon enoch rev2171 dsdts.zip Quote Link to comment Share on other sites More sharing options...
xsmile Posted January 31, 2013 Author Share Posted January 31, 2013 What issues do you have now? Is Sleep working? Regarding the white screen: You can indeed use the HD4000 as primary device to avoid it, but you won't be able to see the boot screen. I can't help you here though, I don't use this method. PS: The DTGP method is just a helper method for other modifications. It won't change anything if you add it alone. Quote 10.9 @ Asus P8Z77-V LK [ALC892, ASM1042, RTL8168], Core i5-3570k, XFX HD 7870 Link to comment Share on other sites More sharing options...
xalucardx Posted January 31, 2013 Share Posted January 31, 2013 I was able to fix the booting problem I had with the Hd4000 w/ GE=yes but sleep its not working I double check the bios settings, I got is as iMac 13,1 and the only boot options I got enable is the ethernet, resolution and GE=yes, I don't know if I should reinstall and start over? Could it be a problem caused by the fact I'm using HDMI? This thing got me scratching my head lol Quote Link to comment Share on other sites More sharing options...
xsmile Posted January 31, 2013 Author Share Posted January 31, 2013 Don't reinstall, it will be a waste of time. Glad you got the IGPU working. You are using 10.8.3, right? Try to use the DSDT I attached to the first post. Modify the "SystemMemory" lines, compile it and place it as /Extra/DSDT.aml. It should be about 40kb in size in the end. Quote 10.9 @ Asus P8Z77-V LK [ALC892, ASM1042, RTL8168], Core i5-3570k, XFX HD 7870 Link to comment Share on other sites More sharing options...
xalucardx Posted January 31, 2013 Share Posted January 31, 2013 I did that already and it was booting fine but still no sleep, I get a white screen when selecting sleep I get a warning on boot on power management with or without your dsdt http://imageshack.us/photo/my-images/836/img20130131093425.jpg/ Quote Link to comment Share on other sites More sharing options...
xsmile Posted January 31, 2013 Author Share Posted January 31, 2013 This is normal and not related to Sleep. If you are using patched extensions to enable Sleep or power management, revert back to the original Apple versions. They include AppleACPIPlatform, AppleIntelCPUPowerManagement, NullCPUPowerManagement. Can you post your boot.log? I think Chameleon places it in the root of the volume. Quote 10.9 @ Asus P8Z77-V LK [ALC892, ASM1042, RTL8168], Core i5-3570k, XFX HD 7870 Link to comment Share on other sites More sharing options...
xalucardx Posted February 1, 2013 Share Posted February 1, 2013 here the boot.log meanwhile ill try to deal with a new issue... suddenly it stoped working again... *edit* i reinstalled and now i can boot normaly with Intell HD 4000 The only things installed so far: Ethernet kext Chameleon Enoch rv2170 HW Monitor in you OP Stock DSDT OS is 10.8.3 (12D61) Next I'll do is edit your DSDT again with my memory values then upload both boot logs Quote Link to comment Share on other sites More sharing options...
xalucardx Posted February 1, 2013 Share Posted February 1, 2013 for some unexplainable reason sleep started working and so the GPU , how do i check if FB is working? if i load you DSDT it stays trying to load some aduio stuff i think even tho i installed the AppleHDA you posted Quote Link to comment Share on other sites More sharing options...
xsmile Posted February 1, 2013 Author Share Posted February 1, 2013 To load a framebuffer you can use Chameleon's AtiConfig option or alternatively you put it in the DSDT with the patch I posted earlier. You can see what exactly gets loaded with IORegistryExplorer. Open the path PCI0:PEG0:GFX0(/PEGP) and you will see the recognized ports as @0 to @n with the name of the framebuffer in them. The audio assertion messages are normal. Can you boot with the original AppleHDA from 10.8.3? Please attach the boot logs Quote 10.9 @ Asus P8Z77-V LK [ALC892, ASM1042, RTL8168], Core i5-3570k, XFX HD 7870 Link to comment Share on other sites More sharing options...
xalucardx Posted February 1, 2013 Share Posted February 1, 2013 is the boot log is the boot file in the drive root? , yeas i can boot with both aundio files but w/o the DSDT, also for some reason now it doesnt wanna boot with the gpu and only with the Intel HD trying to check what the problem is boot.zip Quote Link to comment Share on other sites More sharing options...
xalucardx Posted February 1, 2013 Share Posted February 1, 2013 Ok i found what the issue is and is no other than the DVI, if i boot and as soon as the screen goes black i unplug the dvi and then sleep works, plug the dvi back and the it wakes up and i get video , if i leave the dvi plugged in sleep doesn't work instead of waking up is restarts, i still cant find the boot log you told me ,FB appears to be loaded i added bdmesg and IOService *edited* IOService.zip dbmesg.zip Quote Link to comment Share on other sites More sharing options...
xsmile Posted February 1, 2013 Author Share Posted February 1, 2013 This behavior is new to me. bdmesg is what I was looking for. Here some parts of it: Please specify 96, 64, or 32MB RAM for the HD4000 in the bios. The selected 16MB RAM configuration is not supported for the HD4000. I guess it's better to change it. Â SystemInformation: manufacturer: Apple Inc. productName: MacBookPro10,1 I see you got MacBookPro setup in your SMBIOS. This might not be the optimal choice as Mac loads different drivers according to the SMBIOS preferences. Use Chameleon Wizard to create an iMac13,1 smbios.plist and place it into /Extra - this is what I have found to be working well. Can you type "sudo dmesg" after a reboot into Terminal and attach the output? Quote 10.9 @ Asus P8Z77-V LK [ALC892, ASM1042, RTL8168], Core i5-3570k, XFX HD 7870 Link to comment Share on other sites More sharing options...
xalucardx Posted February 1, 2013 Share Posted February 1, 2013 Yeah I got the Intel to 96mb on bios, but if I boot with GE=yes that message shows up, I'll do what u said in a couple of minutes and will attach Quote Link to comment Share on other sites More sharing options...
xalucardx Posted February 1, 2013 Share Posted February 1, 2013 i forgot to say that i get CMOS reset after i try to wake up Quote Link to comment Share on other sites More sharing options...
